【Detailed Explanation】

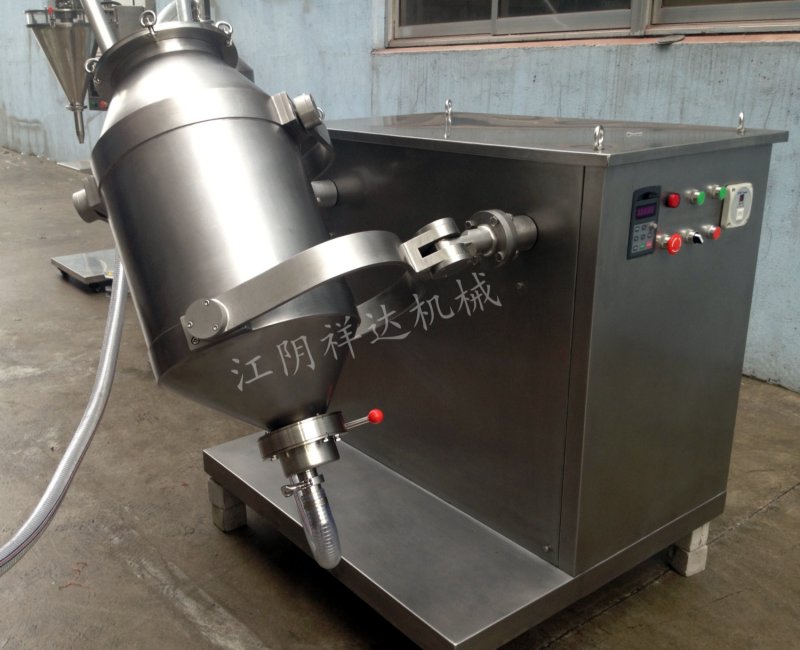

SYH-Applications of the Series Three-Dimensional Motion Mixer: Suitable for mixing dry powder materials in industries such as pharmaceuticals, chemicals, and food. It can also achieve rapid and uniform mixing of several materials with different specific gravities and particle sizes.

SYH-Working Principle of Series Three-Dimensional Motion Mixer: It is a machine that utilizes mechanical force and gravity to uniformly mix two or more materials. The degree of mixing can be categorized into three states: ideal mixing, random mixing, and complete immiscibility. The mixing of various materials in the mixer depends on the specific materials being mixed, their physical properties and characteristics, as well as the type of mixer and the duration of the mixing operation. During mixing, all participating materials are required to be uniformly distributed. For liquid mixtures, mixing is primarily achieved through mechanical stirrers, airflow, and liquid jet mixing, ensuring thorough and even blending. Stirring induces partial flow of the liquid, causing the liquid to move and interact with the surrounding liquid, resulting in a circulating liquid flow within the container. The diffusion between the resulting liquids is referred to as convective and diffusive mass transfer of the main body.

SYH-Operation Process of the Series Three-Dimensional Motion Mixer:1.Start the main motor of the mixer and observe the smoothness of the drum movement.2.Press the start button and adjust the mixing time relay. If time control is not required, turn the knob below the time relay to the continuous mode.3.Set the mixing time as required and start the operation switch.4.When standing in front of the cylinder body, the main shaft rotates clockwise. Avoid operating in the reverse direction.5.Once the mixing time is reached, turn off the power control switch and prepare for discharge. If the discharge port position is not ideal, you may restart the machine following the operating procedure to adjust the discharge port to a better position.
