The Upgraded 3D large-scale independent dual-nozzle 3D printer UPS-556 features an effective printing size of up to 500mm × 500mm × 600mm. Its independent dual-nozzle design allows simultaneous or alternating printing of metal/ceramic materials, enabling the formation of large-scale, complex structures and products. This includes composite products made of two different metals, two different ceramics, or a combination of one metal and one ceramic. It facilitates the development of composite products using different types of metal and ceramic materials on the same 3D printing device. The printer boasts advantages such as simple operation, industrial-grade performance, high precision, high quality, and cost-effectiveness. It is suitable for indirect 3D printing technology development, material development, and rapid prototyping and manufacturing of metal/ceramic products in industries such as scientific research and education, industrial manufacturing, aerospace, military and national defense, biomedical, automotive, mold manufacturing, and new energy.

Product Advantages

(1) Ultra-large effective printing size: 500mm × 500mm × 600mm;

(2) Independent dual-nozzle design, capable of printing metal/ceramic materials simultaneously or alternately.

(3) Granule printing, with a rich variety of printing material systems;

(4) Materials are recyclable;

(5) Automatic feeding, with a single extrusion system material storage capacity of approximately 1.8L, capable of continuous printing for over 72 hours with nozzles below 1mm.

(6) Hot air chamber constant temperature system, adjustable from room temperature to 70°C;

(7) Vacuum adsorption platform: different printing base plates are selected for adsorption based on the material, making it easy to remove the model.

(8) Automatic nozzle wiping function to alleviate nozzle material adhesion.

(9) High-temperature wear-resistant nozzle;

(10) The operating software is continuously upgraded and updated for free.

(11) Industrial-grade, high precision, high performance, and high cost-effectiveness.

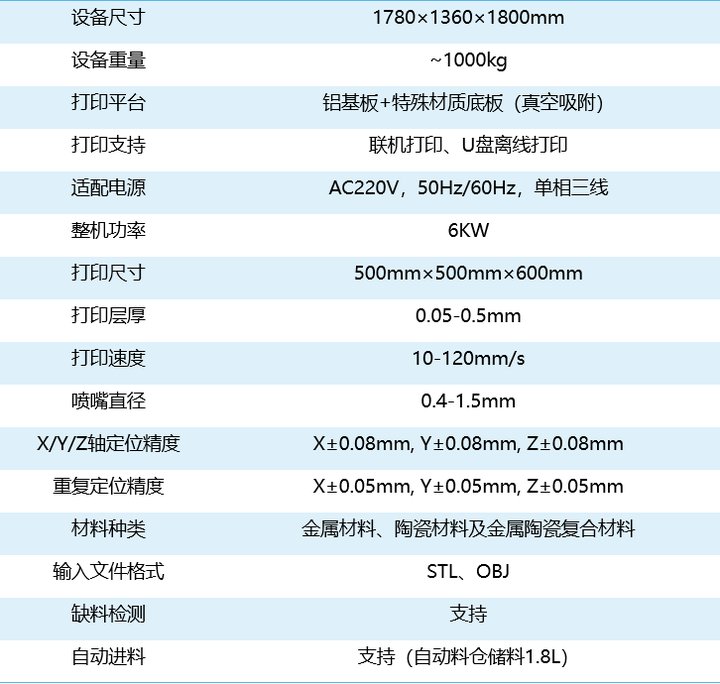

Product Parameters

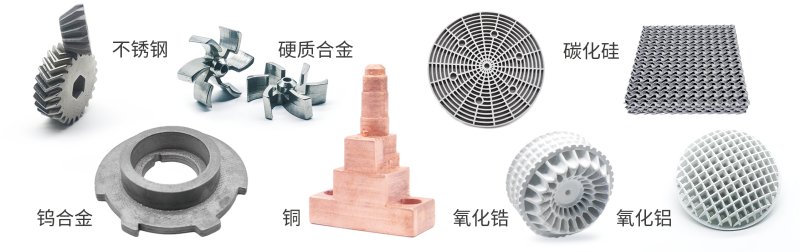

Printing materials

Application Areas

Suitable for 3D printing process development, material development, and rapid prototyping and manufacturing of metal/ceramic products across various application fields.
