Product Detailed Parameters:

High precision, high reliability, easy installation

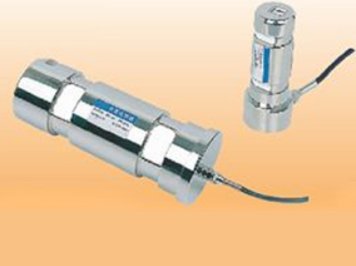

Suitable for rigging shackles, movable and fixed pulley marine rigging, connecting forks, lifting rings, replacing the function of the original shaft, while also enabling weighing and force measurement.

Accuracy Class: 0.02, 0.05

Sensitivity: 1～1.5±0.005mV/V

Input Impedance: 770±20Ω

Output Impedance: 700±2Ω

Insulation Resistance: ≥5000MΩ

**Bridge Supply Voltage: 15V

**Overload: 150% F.S.

Temperature range: -30℃～+70℃ (standard temperature series) / -30℃～+250℃ (high temperature series)

Protection Level: IP66, IP67

Cable: Input (+) Red Output (+) Blue Input (-) Yellow Output (-) White Length 6M
