Ceramic Mechanical Ultrafine Grinder

◇ Ceramic development concept, no introduction of magnetic materials, pollution-free production

◇ System integration, high efficiency and energy saving, low fine powder rate, high yield, and good particle morphology.

◇ Integral ceramic wheel, high linear speed and classification accuracy, strict control over large particles.

◇ Improved design of the feed inlet and cutter head ensures gap-free protection; water cooling effectively reduces operating temperature.

◇ Variable frequency speed regulation, PLC control, touch screen operation, process parameter storage and traceable recording.

◇ In addition to battery materials, it is also applicable to industries such as pharmaceuticals, health products, food, chemicals, and electronics.

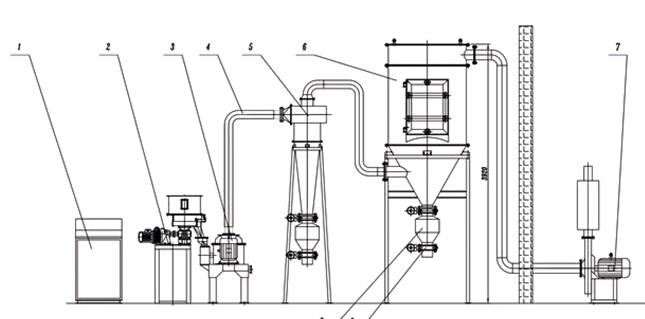

1. Control cabinet 2. Feeder 3. Crusher 4. Pipeline 5. Cyclone separator 6. Dust collector 7. Fan 8. Storage tank 9. Discharge valve (optional non-metallic bushing type)
