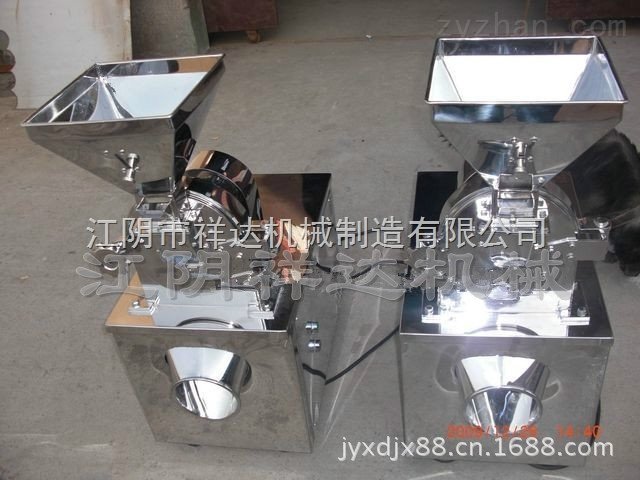

Soybean Air-Cooled Dust Suction GrinderMainly applicable for the crushing and processing of medium to low hardness materials in industries such as pharmaceuticals, chemicals, and food (e.g., ginger, chili, pepper, lettuce, soybeans, white sugar, star anise, cinnamon). It features high output, fine particle size, low noise, low energy consumption, simple maintenance, and easy installation. It is especially suitable for crushing low-hardness materials such as oily, sticky, heat-sensitive, and fibrous substances.
Soybean Air-Cooled Dust Collection GrinderWorking Principle: When the pulverizer is in operation, the motor drives the spindle and the cutter disc to rotate at high speed. The cutter disc and the grinding blocks on the screen ring form a crushing and grinding pair. As materials enter the machine chamber from the feed hopper, they undergo intense friction and strong impact against the inner side of the cutter disc blades within the rotating airflow generated by the cutter disc, and are further ground in the gaps between the blades and the grinding blocks. During the crushing process, the cutter disc draws in a large amount of air, which serves to cool the machine, grind the materials, and convey fine particles. The fineness of the crushed materials depends on the nature of the materials, the size of the screen mesh, and the throughput of materials and air. The bearing components of the air-cooled pulverizer are equipped with specially designed labyrinth seals, which effectively prevent dust from entering the bearing chamber, thereby extending the service life of the bearings. The machine door is fitted with a silicone rubber sealing ring, ensuring no dust leakage that could contaminate the operating environment. Soybean Air-Cooled Dust Suction GrinderFeatures: 1. Strong crushing capacity, low energy consumption, and relatively fine product particle size. 2. Large crushing space. The high-intensity wind pressure generated during the operation of the cutter head not only enhances production capacity and reduces over-crushing but also effectively prevents material deposition and clogging of the screen during the crushing process. 3. Due to enhanced shearing, the crushing capacity for fibrous materials is higher than that of general equipment. 4. The screen is easy to install with reliable positioning, both using a plug-in design. Its service life is significantly longer than that of ring-type screens. 5. The built-in motor design lowers the machine's center of gravity, effectively reducing equipment noise.
