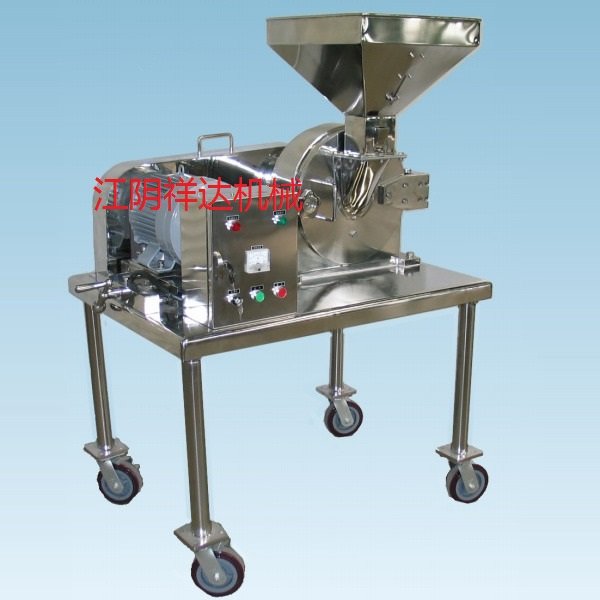

Stainless Steel High-Efficiency CrusherMain Uses:This machine is designed based on the principle of mixed spray pulverization and is widely applicable in industries such as pharmaceuticals, food, and chemicals, with an extensive range of uses. It features a simple structure, and the crushing chamber is easy to assemble, disassemble, and clean. All parts of the crushing chamber that come into contact with materials are made of stainless steel, which is resistant to acid and corrosion, ensuring that the crushed materials meet higher hygiene standards. The machine operates smoothly, is easy to move, has low noise, excellent crushing performance, and low power consumption.
Stainless Steel High-Efficiency CrusherWorking Principle:This machine is a high-speed rotating mechanism, featuring a sharp-edged blade on one side and an impact-type blade on the other, allowing the material to be crushed through high-speed blade shearing. The machine can also be equipped with blades of various shapes and sizes depending on the material being processed, with particle size controlled by changing the mesh screen or adjusting the speed.

Stainless Steel High-Efficiency CrusherOperating Instructions 1. Inspection: Before use, check whether all feet of the crusher are fully in contact with the ground and stable; whether the locking bolts are tightened; whether the crusher filter screen is intact; and whether all connecting parts are secure. Only after confirming that everything is normal can the equipment be used; otherwise, it should be repaired or reported. 2. Startup (1) Close the power distribution box, and the indicator light will illuminate. Press the button to start the crusher. (2) Observe the crusher's current and operating sound. If any abnormality occurs, stop the machine immediately for inspection. 3. Feeding (1) Only feed materials after confirming that the crusher is operating normally. When feeding, first pour the material into the hopper, then gently push it into the crusher with a shovel. The material should not be too large or too coarse. (2) Place the finely crushed material into a transfer bucket. Once the bucket is full, immediately cover it with the inner and outer plastic lids to prevent moisture absorption. (3) If any abnormal sound is heard during the crushing process, stop the machine immediately for inspection. Only restart after resolving the issue. 4. Cleaning: (1) Since the material is highly prone to moisture absorption, immediately after crushing, use a long brush to sweep the material from the crusher hopper and body into a bag. Open the feeding section of the crusher and clean the inside and outside thoroughly with a damp linen cloth or water. (2) After each cleaning, reassemble the parts properly for future use. (3) Turn on the heating radiator to ensure the crusher is dry before the next use.

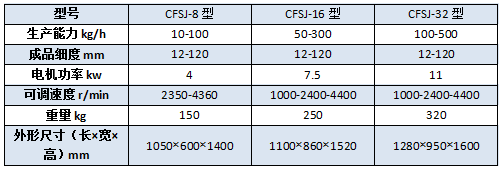

Stainless Steel High-Efficiency CrusherTechnical Parameters
