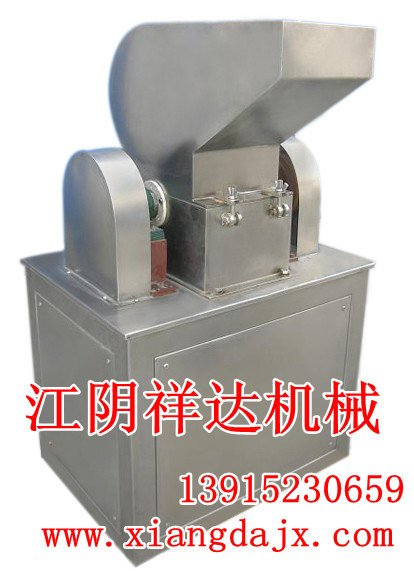

Polygonum multiflorum Dust Removal Efficient Coarse CrusherSuitable for industries such as pharmaceuticals, chemicals, metallurgy, food processing, and construction. It is used for processing hard materials, Chinese medicinal herbs, and difficult-to-grind substances, including plastics and steel wires. The composite rock chip crusher can also serve as auxiliary equipment for the pre-processing stage of micro-grinding. It features low noise, a protective cover on the belt pulley for safety and reliability, a cleaning safety lock, and an overload protection device installed on the motor along with electrical components.Source chain protection system.

Polygonum multiflorum Dust Removal Efficient Coarse CrusherWorking Principle: The coarse crusher adopts a vertical crushing mechanism, which is not limited by the viscosity, hardness, or softness of the material, and can achieve good crushing effects on any material. The high-efficiency crusher feeds materials into the crushing chamber through the feed hopper, where they are impacted by blades and blade holders, and simultaneously sheared and crushed by rotating and fixed blades. Due to the centrifugal force generated, the materials automatically flow toward the outlet.
Polygonum multiflorum Dust Removal Efficient Coarse CrusherProduct Features: The high-efficiency crusher is a new type of equipment developed by integrating advanced experience from both domestic and international industries. It features lightweight design, low energy consumption, high-quality blade materials, long service life, and easy cleaning. The machine boasts an aesthetically pleasing appearance, coordinated color schemes, and durable paint coating. The feed hopper, crushing chamber, and sieve hopper are designed to be separable, making assembly and disassembly easy. The buffer chamber feed and inlet curtain design prevent material splashing. The front and rear walls of the crushing chamber are equipped with double-layer soundproofing for low noise operation. The pulley is fitted with a protective cover for safety and reliability, and a cleaning safety lock is included. The motor is equipped with an overload protection device and a power interlock protection system. It is suitable for crushing root-type Chinese herbal medicines and brittle plastics that can be easily broken. Corresponding sieve plates can be replaced to adjust particle size. The blade gap is adjustable, and the machine can also crush various plastic wastes such as calendered films, thin sheets, and thin plates.

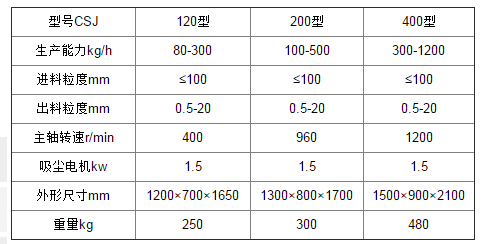

Polygonum multiflorum Dust Removal Efficient Coarse CrusherTechnical Parameters
