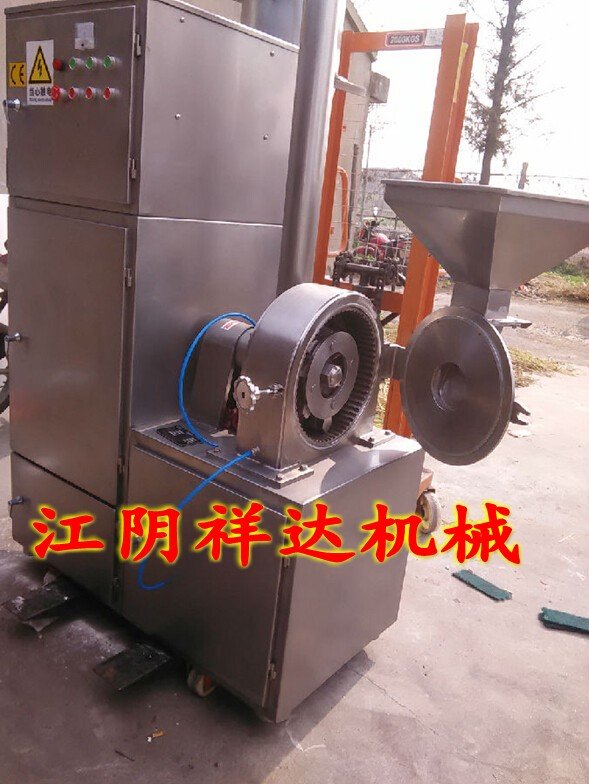

Sichuan Pepper Turbo Dust Removal GrinderMainly applicable for the crushing and processing of medium to low hardness materials in industries such as pharmaceuticals, chemicals, and food (e.g., ginger, chili, pepper, lettuce, soybeans, star anise, cinnamon, dried vegetables). The fineness can be adjusted between 30 and 150 mesh. It features high output, fine particle size, low noise, low energy consumption, simple maintenance, and easy installation. It is especially suitable for crushing and processing low-hardness materials such as oily, sticky, heat-sensitive, and fibrous substances.

Sichuan Pepper Turbo Dust Removal GrinderThe main components include the casing, door, turbine, main shaft, screen, pulley, and motor. Working principle: When the turbine mill is in operation, the motor drives the main shaft and the turbine to rotate at high speed. The turbine and the grinding blocks on the screen ring form a crushing and grinding pair. When the material enters the machine chamber from the feed hopper, it undergoes intense friction and strong impact against the inner side of the turbine blades within the rotating airflow of the turbine, and is further ground in the gaps between the blades and the grinding blocks. While crushing the material, the turbine draws in a large amount of air, which serves to cool the machine, grind the material, and convey the fine particles. The fineness of the crushed material depends on the nature of the material, the size of the screen, and the throughput of material and air. The bearing components of the turbine mill are equipped with specially designed labyrinth seals, which effectively prevent dust from entering the bearing chamber, thereby extending the service life of the bearings. The door is fitted with a silicone rubber sealing ring, ensuring no dust leakage that could contaminate the operating environment.

Sichuan Pepper Turbo Dust Removal GrinderFeatures:
1. Strong crushing capability, low energy consumption, and relatively fine product particle size.
2. Large crushing space: The high-intensity wind pressure generated during turbine operation not only enhances production capacity and reduces over-crushing, but also effectively prevents material deposition and clogging of the screen during the crushing process.
3. Due to enhanced shearing, its crushing capability for fibrous materials is higher than that of ordinary equipment.
4. The screen mesh is easy to install and reliably positioned, all using a plug-in design. Its service life is significantly longer compared to the ring screen type.
5. Design a built-in motor to lower the machine's center of gravity, effectively reducing equipment noise.

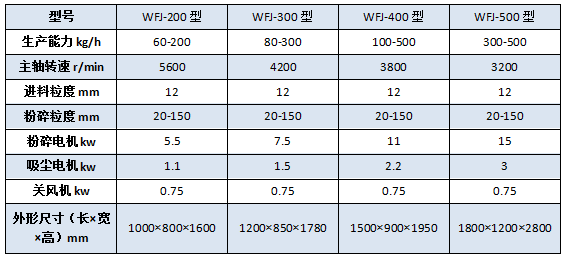

Sichuan Pepper Turbo Dust Removal GrinderGroup Technical Parameters
