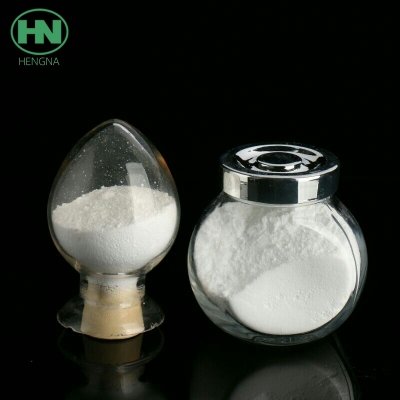

Nano Aluminum Oxide Powder (for thermal conductivity)

1. Basic Information:

Product Model: HN-L04R / HN-L600D

2. Product Description: The high-purity alumina for thermal conductivity produced by our company has a quasi-spherical particle morphology and uniform particle distribution. It exhibits excellent dispersibility and uniform distribution in thermally conductive plastics and thermally conductive silicone rubber, delivering outstanding thermal conductivity. Depending on the filling amount, the thermal conductivity can range from 3 to 10 W/mk.

3. Technical Specifications:

4. Scope of Application:

4.1 Thermally conductive plastic: Adding alumina thermal conductive powder increases the thermal conductivity of polypropylene (PP), and the thermal conductivity of the alumina/PP composite material improves with the increase in alumina content.

4.2. Thermally conductive silicone rubber: Adding alumina thermal conductive powder can improve the thermal conductivity of silicone rubber without affecting its transparency. An appropriate amount of addition can achieve a thermal conductivity of 1.48–2 W/(m·K) for the silicone rubber.

4.3 Thermally conductive adhesives, such as epoxy adhesives, epoxy resins, and thermally conductive coatings, can achieve a thermal conductivity of over 0.6 W/(m·K) when alumina thermally conductive powder is added.

5. Product Usage: The recommended dosage is 1-20%. Users should determine the amount to be added through experiments based on different systems.

6. Product packaging: 10kg/bag or 20kg/bag.
