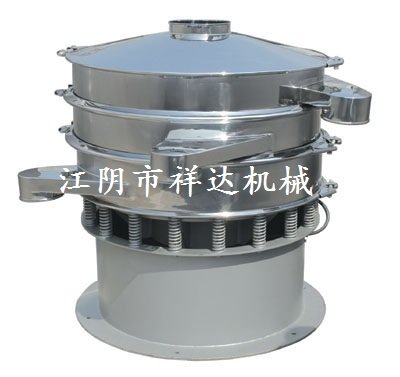

Dongguan High-Efficiency Sieving MachineWidely applicable to industries such as pharmaceuticals, chemicals, food, metallurgy, and electronics, it is an ideal equipment for industrial raw material grading and screening. The structure should be simple, easy to operate and maintain, compact in size, high in processing capacity, low in noise, corrosion-resistant, low in failure rate, long in service life, energy-efficient, free of dead corners for cleaning, and dust-free, designed in full compliance with GMP requirements. Surface treatment: The appearance is clean, smooth, and flat, with no dead corners and easy to clean. The clamps are sturdy and secure, not easily damaged, and convenient for maintenance.

Dongguan High-Efficiency Sieving MachineIt is composed of a vertical vibration motor integrated into an oscillation system, with eccentric excitation weights at both the upper and lower ends of the motor's main shaft. The upper and lower eccentric excitation weights are fixed to the motor's main shaft. For materials that are difficult to screen, the weight of the eccentric weights can be appropriately increased. This achieves the characteristics of screening different materials. At this point, the material is not only subjected to a significant centrifugal force but also to a substantial vertical force, causing the material to undergo compound motion, resulting in efficient screening performance.
Dongguan High-Efficiency Sieving MachineFunction and Principle: The basic principle of a screening machine, also known as a filter machine, is that the heavy hammers (unbalanced weights) installed at the upper and lower ends of the motor convert the motor's motion into a three-dimensional movement involving horizontal, vertical, and inclined directions. This movement is then transmitted to the mesh surface. By adjusting the phase angle of the upper and lower heavy hammers of the motor, the direction of the material's movement can be altered.

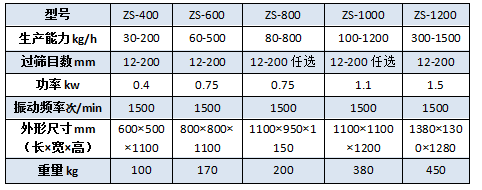

Dongguan High-Efficiency Sieving MachineTechnical Parameters
