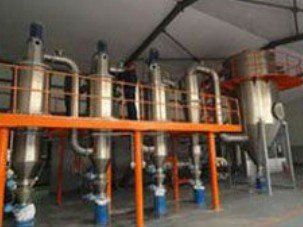

I. AF Series Nitrogen-Protected Air Jet Milling and ClassificationHere is the English translation of "简介":
**Introduction**
Nitrogen-protected airflow crushing or classification is primarily used for crushing or classifying flammable, explosive, or gas-sensitive materials. By employing nitrogen circulation, along with automated control and微量 nitrogen replenishment technology, the entire system maintains a certain nitrogen content, stable pressure, and temperature. This ensures that the material not only meets specific particle size requirements but also guarantees safety against explosions, oxygen isolation, and temperature stability.
II. Technical Parameters of the AF Series Nitrogen Protection System Air Classifier:
Model | Processing capacity (t/h) | Grading fineness (μm) | Classification Efficiency (%) | Classification Host Power (kW) | Installed Power (kW) |
AF050 | 0.1~0.5 | 2~100 | 70-85 | 5.5 | 30 |
AF100 | 0.5~1.0 | 2~100 | 70-85 | 11 | 45 |
AF200 | 10.~3.0 | 2~100 | 70-85 | 22 | 70 |
AF400 | 2.0~8.0 | 2~100 | 70-85 | 37 | 95 |
AF600 | 5.0~15 | 2~100 | 70-85 | 45 | 120 |
AF800 | 10~25 | 2~100 | 70-85 | 55 | 200 |
AF1000 | 20~50 | 2~100 | 70-85 | 75 | 250 |
AF1200 | 50~100 | 2~100 | 70-85 | 110 | 360 |
AF1600 | 80~150 | 2~100 | 70-85 | 132 | 400 |
AF2000 | 200~300 | 2~100 | 70-85 | 160 | 500 |
