SC-H Type Nano Grinding Machine: Currently the world's most efficient vertical wet laboratory ball mill, recognized as the most cost-effective machine for producing nanomaterials globally. Its advantages include:

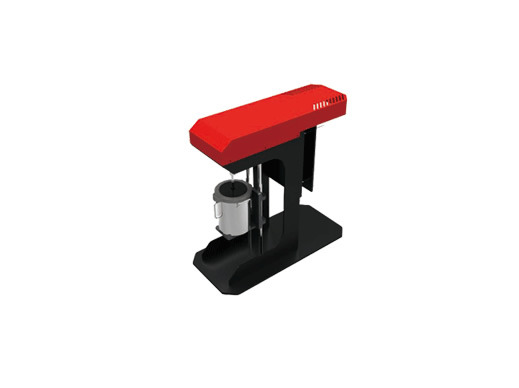

Appearance diagram of SC-H type nano grinding machine
Its features are as follows:
1. High Efficiency: The mixer is equipped with a uniquely designed grinding disc, with a **rotational speed of 4300 rpm** and a terminal linear velocity of up to 15.6 m/s.
2. Ultra-fine Grinding: The machine can use zirconia grinding balls as small as 0.03 mm. For powder grinding, it can achieve D100 ≤ 100 nanometers.
3. High Purity: For grinding powder materials, the machine can achieve grinding in a metal-free system to completely avoid contamination by metal ions.
4. Sealed system: A closed cylinder head with a uniquely designed shaft seal is used. The entire cylinder head is fixed to the grinding cylinder via clamps to maintain the system's airtightness, thereby reducing the loss of organic solvents due to evaporation.
5. Convenient sampling and testing: There is a movable small cover on the cylinder head, which is equipped with a feed port. Through this port, other components can be added or samples can be tested during the grinding process without stopping the machine.
