Product Overview

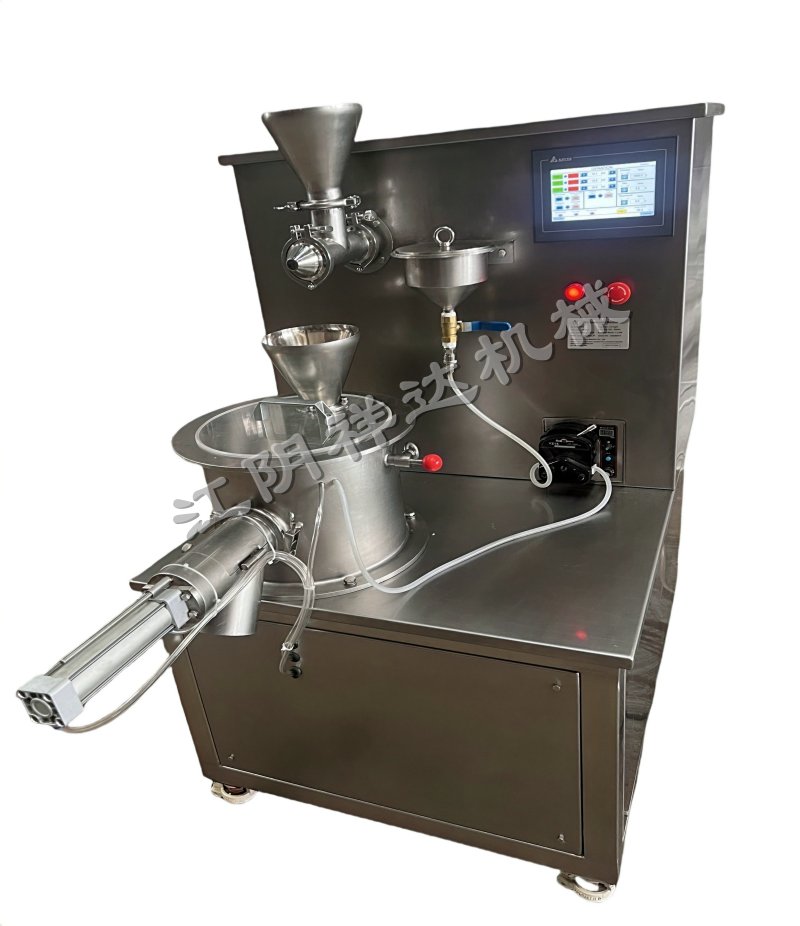

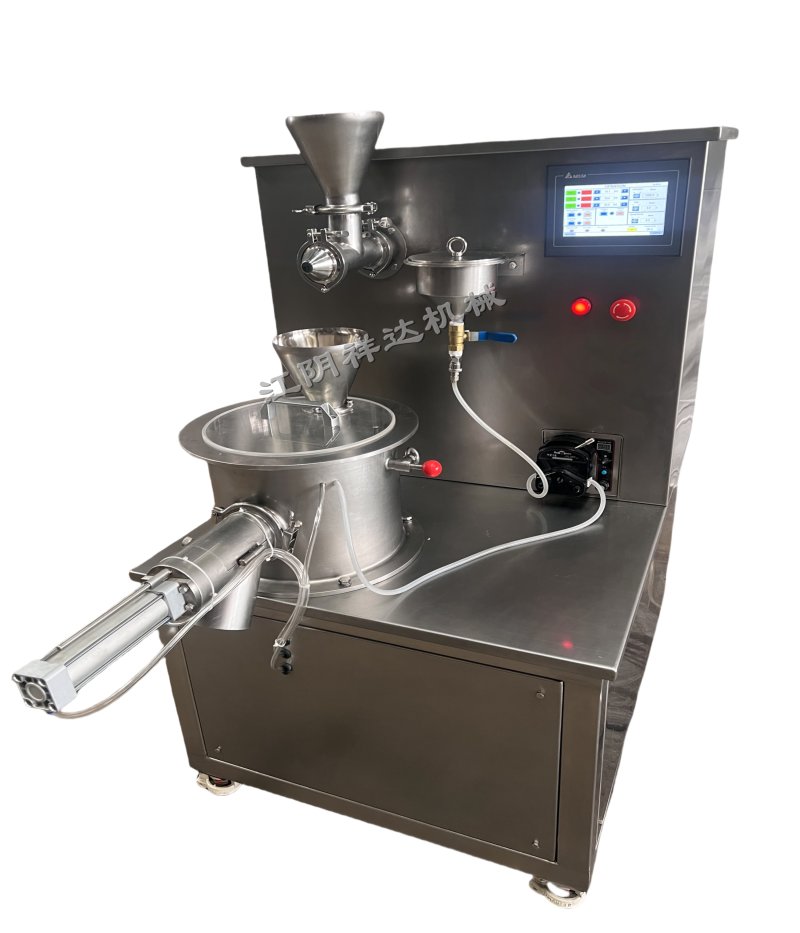

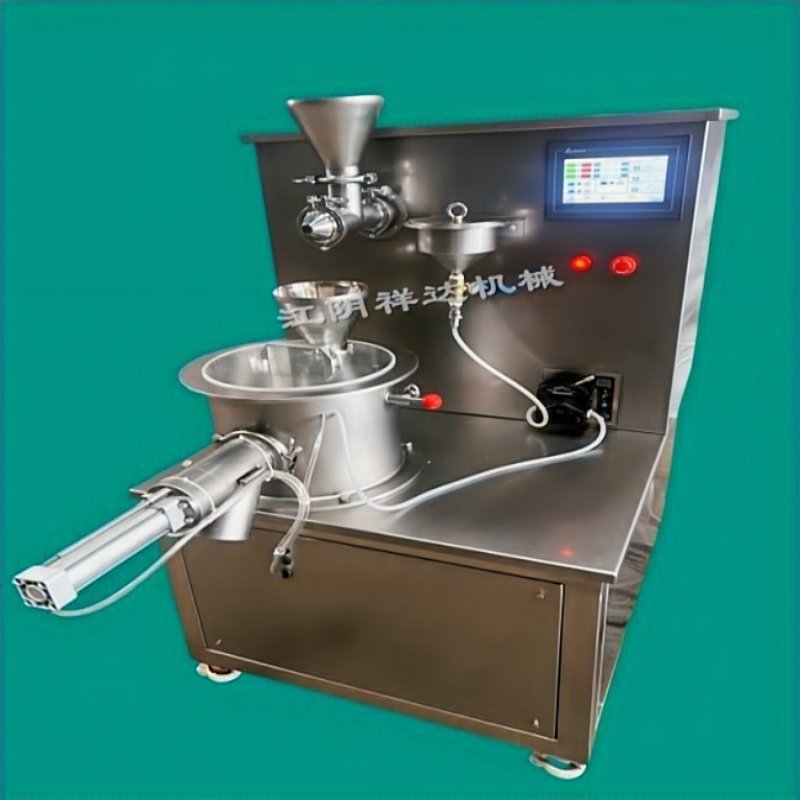

This machine forms wet granules into beautiful spherical pellets by utilizing a rotating centrifugal disc, a blower, and a pneumatic spray gun. The wet granules produced in the previous process are fed into the rotating centrifugal disc. After starting the blower, the rotating centrifugal disc is activated, causing the wet granules to be subjected to the combined effects of annular air buoyancy, rotational centrifugal force, and their own gravity. This results in a rope-like circular motion, forming spherical pellets with extremely high sphericity.

Working principle

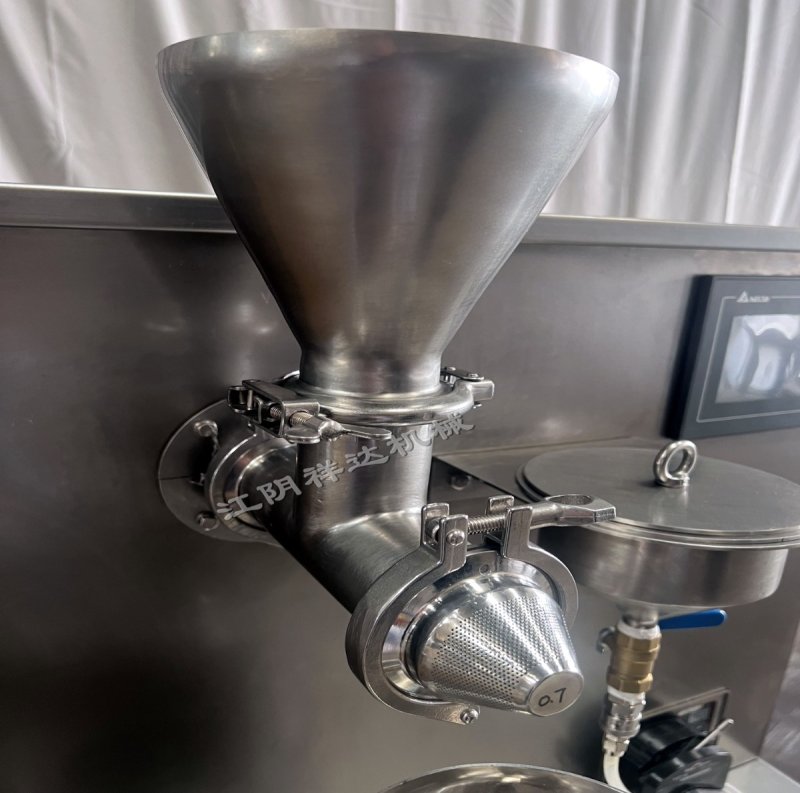

This system operates by mixing powdered materials with a binder to form a suitable soft mass, which is then extruded into columnar granules. These granules are subsequently placed into a spheronizer to produce spherical particles with extremely high roundness. Finally, excess moisture is removed using drying equipment to obtain the desired spherical particles.

System Composition: Hybrid+Initial granulation+Full circle+Dry+Screening=Finished product mixing:CHTrough mixer or other mixers(Mixed category):Granulation;ZLRotary extrusion granulator orYKOscillating Granulator(Granulation type);Whole garden;QZLRound granulator; Drying:GFGEfficient batch rattan dryer,FGFluid bed dryer, oven, or others; sieving:ZSVibrating screen or other

Equipment Features

Place the wet granules produced in the previous process into a rotating centrifugal disc. Under the combined effects of annular air buoyancy, rotational centrifugal force, and gravity, the wet granules move in a ring-shaped rope-like pattern. Through a multi-fluid spray gun, the formulation liquid is sprayed onto the moving material layer from an appropriate direction, thereby forming spherical pellets with high sphericity. The principle is similar to that of a rotating fluidized bed.

Typical applications: Omeprazole pelletizing, Aspirin pelletizing, Feed enzyme pelletizing, Sodium sulfate pelletizing, Compound paracetamol and amantadine pelletizing, Catalysts, ConformityVB2Film pelletizing*The blower can first be equipped with a motor frequency converter, making the granulation faster and the finished product more aesthetically pleasing.*The rotary table adopts a dual-speed motor to make the product **aesthetically pleasing**.*Materials are handled in a sealed container, with no dust emission, ensuring safe operation.
