Small Chinese Medicine Ultrafine GrinderSuitable for ultra-fine grinding of low-hardness materials in food (corn, maltose, rice, ginger, chili, pepper, lettuce, soybean, star anise, cinnamon, dehydrated vegetables, hawthorn, dried ginger, onion, garlic, scallion, carrot, soybean meal, plant fiber, starch, fish meal, flavors and fragrances, chitin, cabbage, grains, dried shrimp, seasonings, spices, ginseng, American ginseng, agricultural by-products, Chinese yam, prepared rehmannia root, spinach), pharmaceuticals, feed, calcium carbonate, Chinese herbal medicine, and other low-hardness materials.

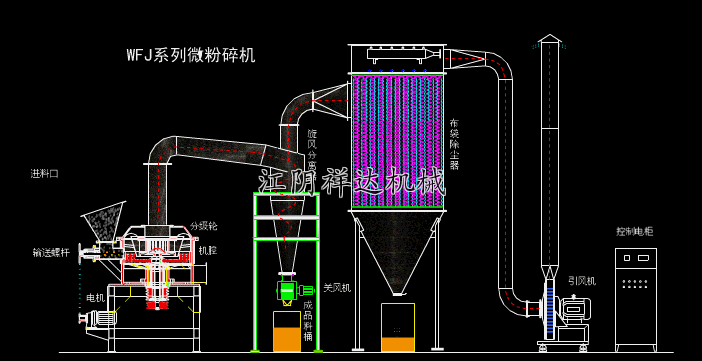

Small Chinese Medicine Ultrafine GrinderPrinciple: The ultrafine pulverizer is a vertical-axis reflection-type micro-grinding machine capable of simultaneously completing two processing steps: micro-grinding and micro-powder classification. It consists of components such as the body, frame, feeding device, crushing device, discharge pipe, transmission device, and motor. The complete set of airflow turbine micro-powder unit is composed of the main machine, dust collector, high-pressure centrifugal fan, airlock, cyclone collector, and electric control cabinet. The particle size can be adjusted arbitrarily without stopping the machine. The product has uniform particle size, with fineness reaching 10-5um, and the machine features a self-cooling function.

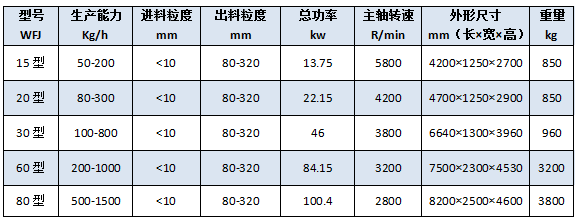

Small Chinese Medicine Ultrafine GrinderTechnical Parameters
