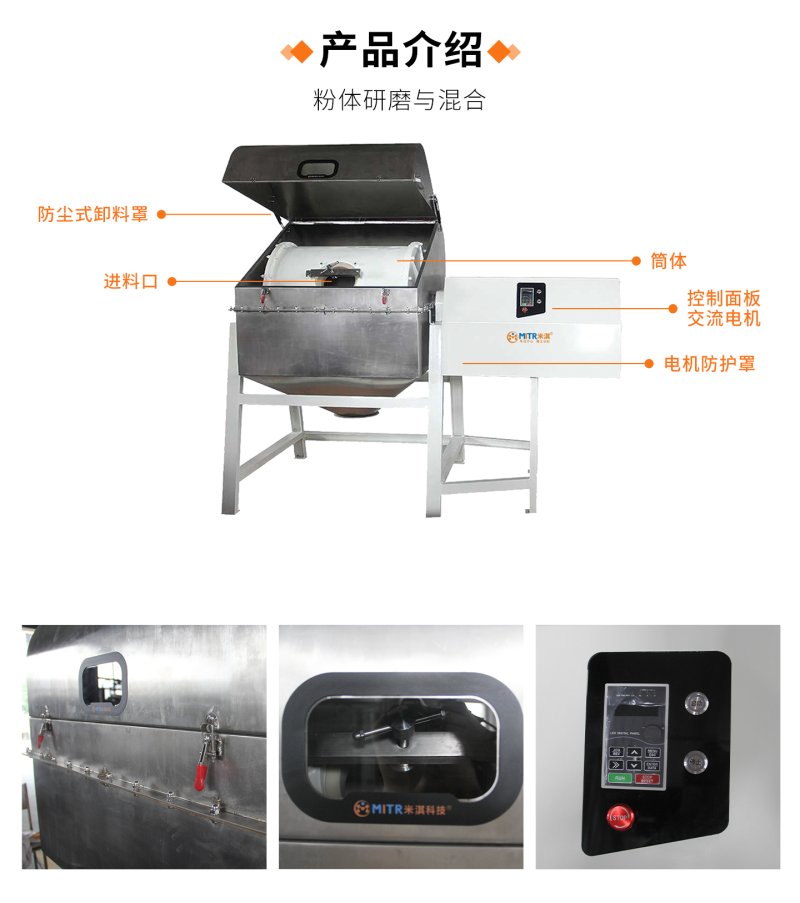

I. Product Introduction

A roller ball mill is a relatively critical piece of basic equipment in the powder grinding and mixing process. Its working principle involves a main shaft connected to a motor, pulley, and bearings for transmission. Relative motion occurs between the main shaft and the tank, generating friction with the surface of the ball mill tank to drive another passive shaft for rolling. The overall roller shaft is externally lined with wear-resistant polyurethane sleeves to increase the friction coefficient and prevent tank deformation from slipping. Our company offers a complete range of roller ball mills with various specifications, organized into standardized and serialized products. The main product series include: dry grinding ball mills, wet grinding ball mills, lined ball mills, grinding and screening ball mills, laboratory ball mills, and various customized types.

II. Applications

It is widely used in the production industries of cement, silicate products, new building materials, refractory materials, material chemistry laboratories, bio-fertilizers, non-ferrous metal beneficiation, as well as glass and ceramics, for dry or wet mixing of various ores and other grindable materials. It is also extensively applied in the grinding and mixing processes during the processing of electronics, ceramics, coatings, glass powder, fluorescent materials, non-metallic minerals, pharmaceuticals, electronic materials, magnetic materials, equipment batteries, biological cultivation, food packaging, and battery materials.

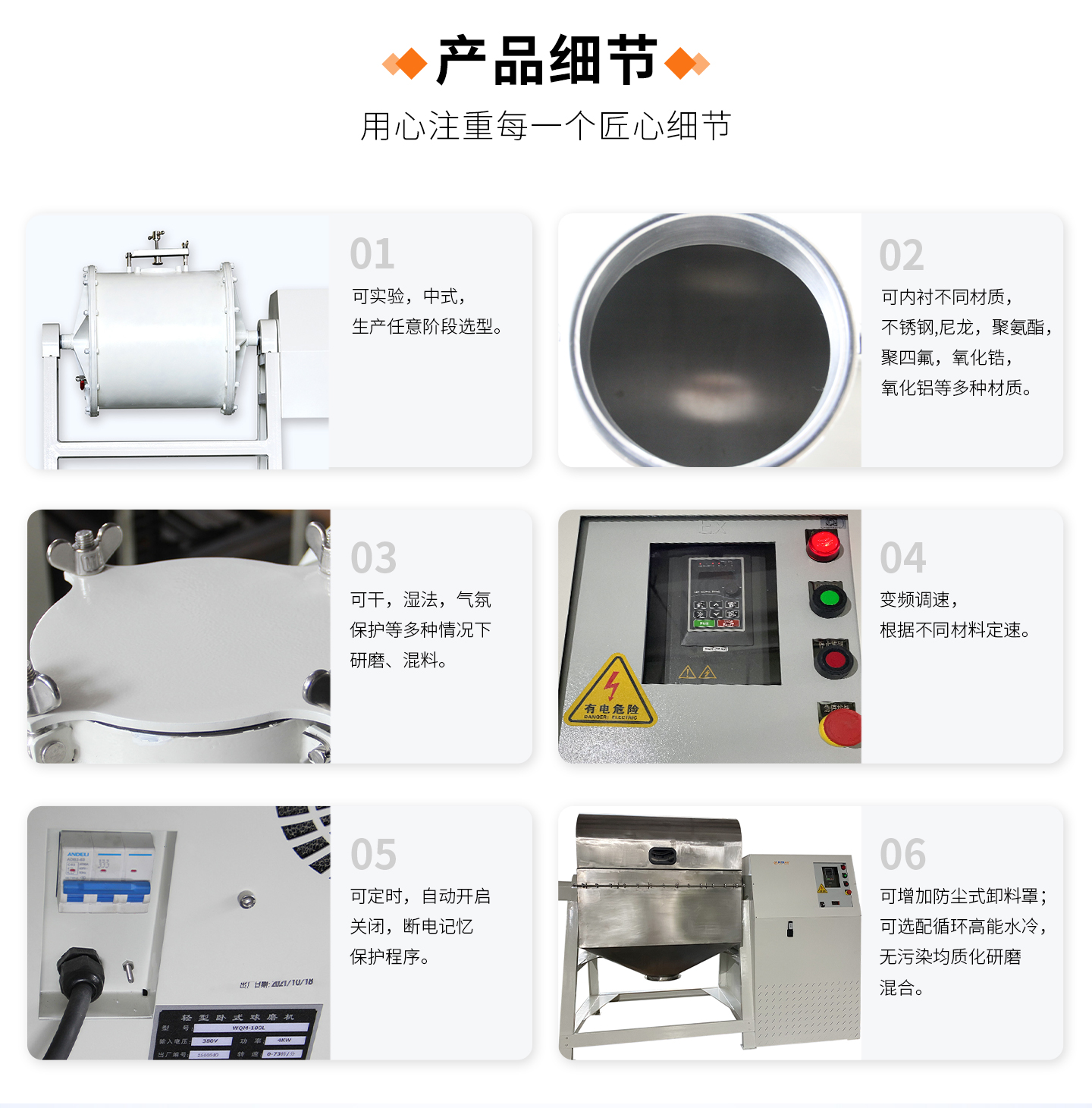

III. Product Features

●Experimentable, Chinese-style, selection at any stage of production.

●Can be lined with various materials, including stainless steel, nylon, polyurethane, polytetrafluoroethylene (PTFE), zirconia, alumina, and many others.

●It can be used for grinding and mixing under various conditions, including dry, wet, and atmosphere protection.

●Variable frequency speed regulation, with speed set according to different materials.

●Timed, automatic on/off, with power-off memory protection program.

●A dust-proof discharge cover can be added.

●Optional circulating high-energy water cooling is available, enabling pollution-free homogenized grinding and mixing.

IV. Main Technical Parameters

V. Crushing Effect Demonstration
