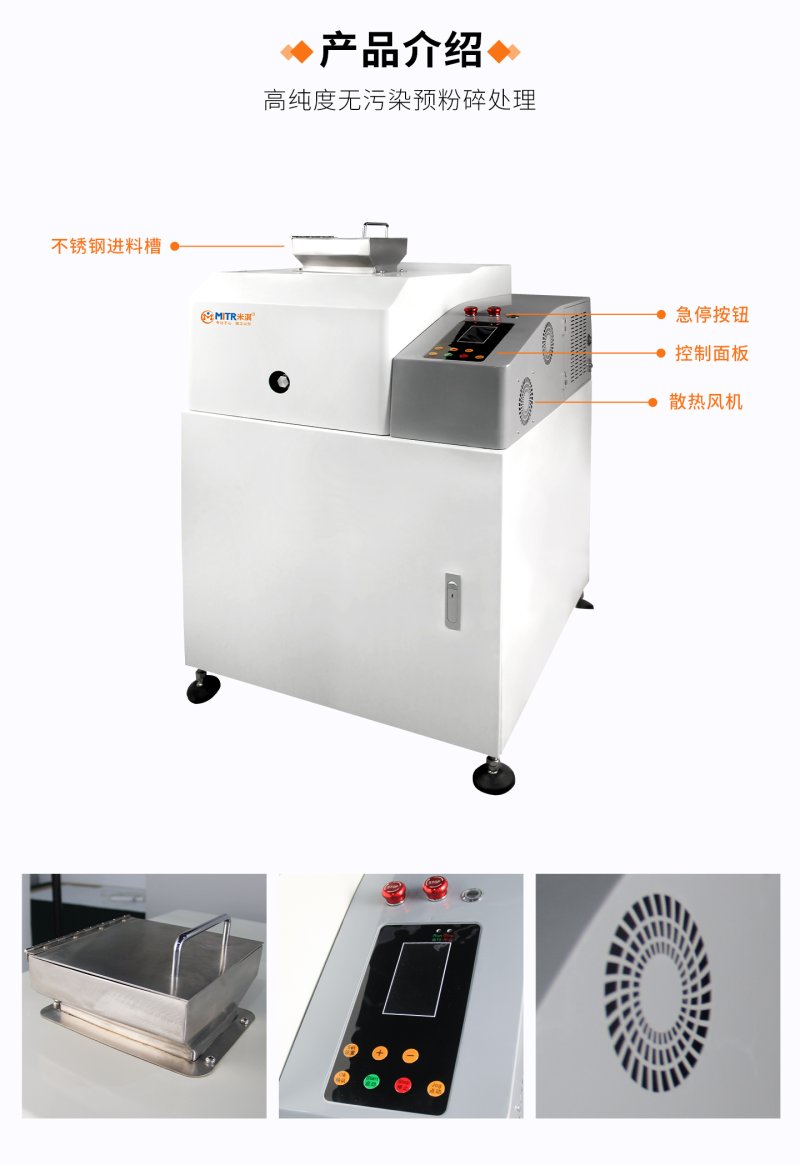

I. Product Introduction

A crushing machine that uses the squeezing and bending action of two jaw plates to perform coarse or medium crushing of materials of various hardness levels. In the laboratory, this crusher is a front-end material processing device and an essential step in the crushing stage. The process is simple and easy to use, with adjustable jaw plates. The adjustment process allows for intuitive display of the jaw plate gap on the screen, making it convenient for operators to monitor the sample diameter and output particle size. It is suitable for materials with a diameter of 50mm or less. After crushing, the material size can be adjusted arbitrarily between approximately 1-6mm. It addresses the front-end processing requirements for high-purity samples. The power supply is 220V.

Not only does it feature a high-appearance exterior design, but the structural and system designs also effectively enhance efficiency and performance. The application of noise control **technology** brings a more comfortable and safer user experience.

II. Applications

It is mainly used in various ores, metallurgy, mining, chemical industry, building materials, refractory materials, ceramics, environmental protection, materials, biology, etc. It primarily relies on the movable jaw plate periodically pressing against the fixed jaw plate to crush and grind the material sandwiched between them, obtaining material as fine as 1mm.

III. Product Features

● The grinding particle size is uniform and fine, and can be directly used for analysis and testing.

●The crushing mechanism and the entire machine structure are fully sealed, ensuring no sample loss.

● Crushing jaw plates made of various different materials.

● Blowing dust removal design ensures clean discharge without dust pollution.

IV. Main Technical Parameters

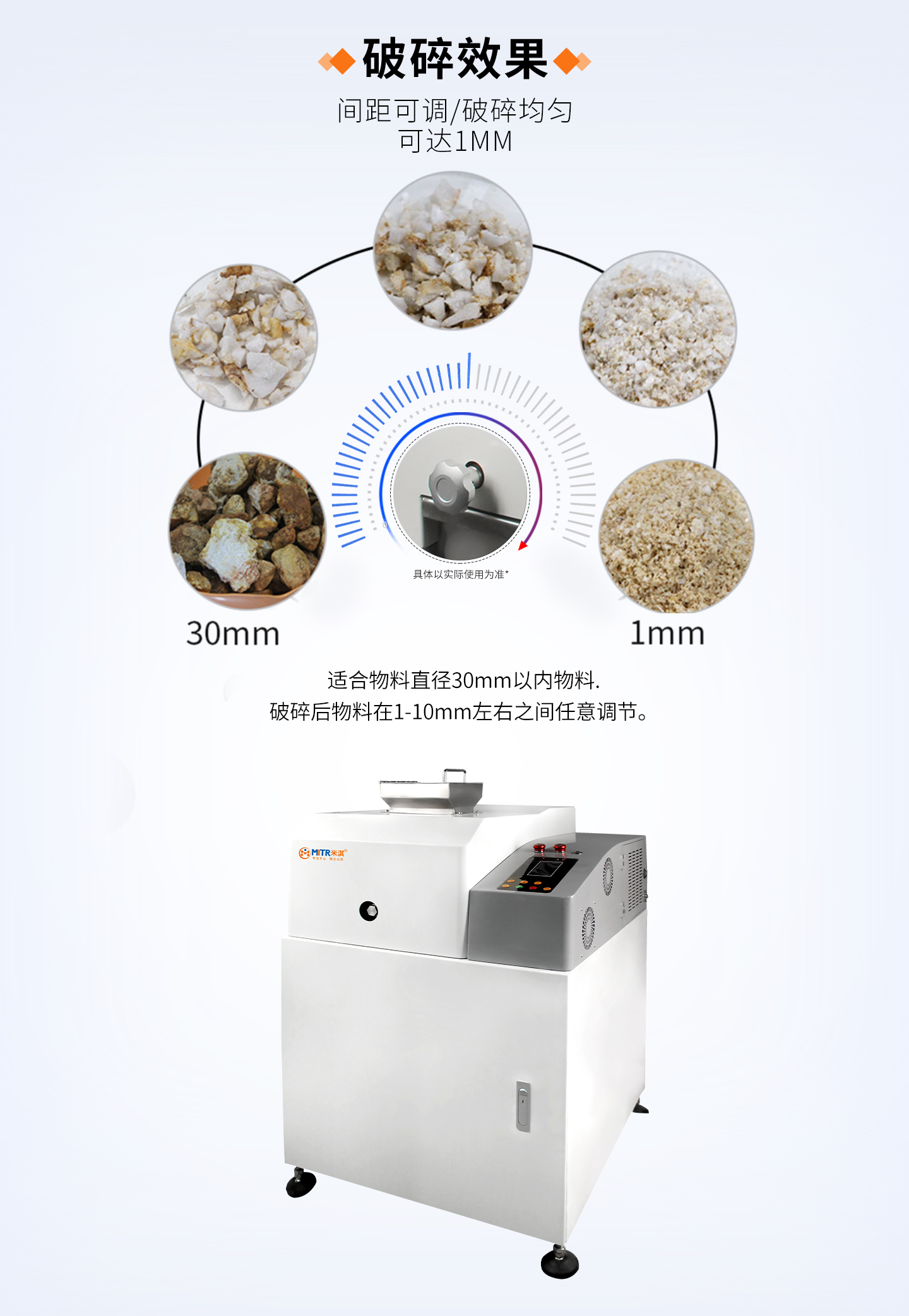

V. Crushing Effect Demonstration
