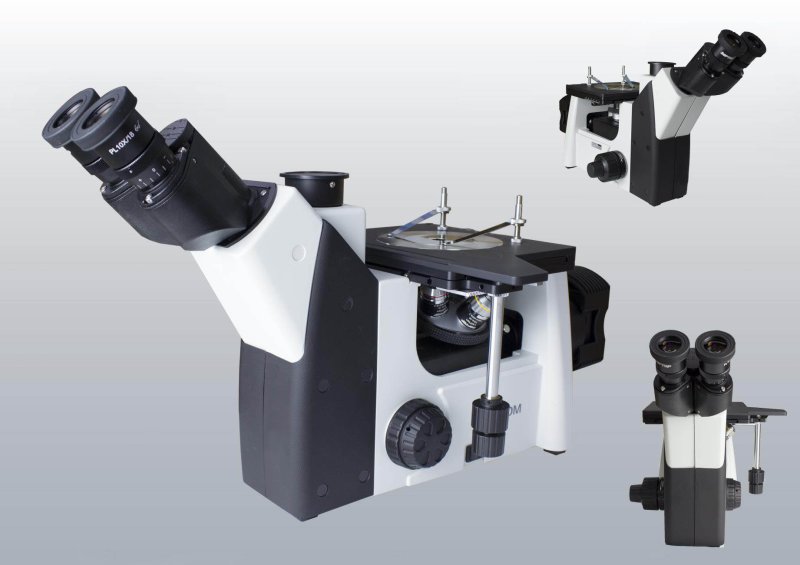

FCM2000 Trinocular Inverted Metallurgical Microscope

The trinocular inverted metallurgical microscope is easy to operate, comes with a full set of accessories, and has a wide range of applications.

● FCM2000 is used in the metallographic analysis of steel, non-ferrous metal materials, castings, and coatings, the petrographic analysis of geological samples, as well as the microscopic study of compounds, ceramics, and other materials in industrial fields.

● Easy to operate, with a full set of accessories, it is an ideal instrument widely used in teaching and scientific research for metallographic analysis, as well as in factory laboratories for material testing.

● After upgrading the system, functions such as high-magnification and polarized light observation can be achieved. The compact and stable integrated main body design fully meets the requirements for operational stability of the microscope.

Every humanized detail design brings you a fast and comfortable operating mode.

Objective Lens: Equipped with high-quality long focal length flat-field achromatic objective lenses, strictly selected high-transmittance lenses and advanced coating technology to faithfully restore the natural colors of the sample.

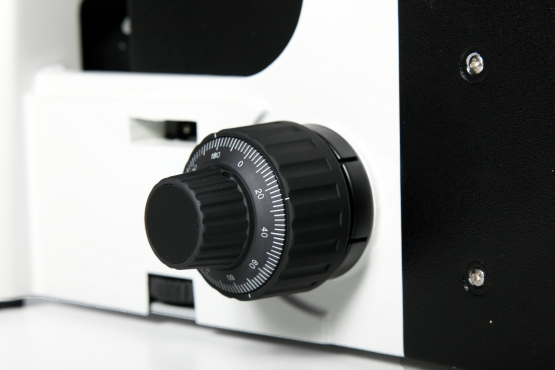

Focusing System: Equipped with a low-position coaxial coarse and fine focusing mechanism, adjustable from both the left and right sides. The fine adjustment offers high precision, and manual operation is simple and convenient, allowing users to easily obtain clear and comfortable images.
The coarse adjustment stroke is 38mm, with a fine adjustment precision of 0.002.

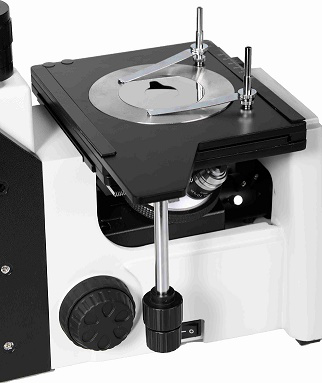

Mechanical platform: Adopts a large platform measuring 180×155mm, with a right-hand configuration that aligns with the operating habits of the general population. During user operation, it facilitates the adjustment of the focusing mechanism and movement of the platform.
Switch to provide users with a more efficient working environment.

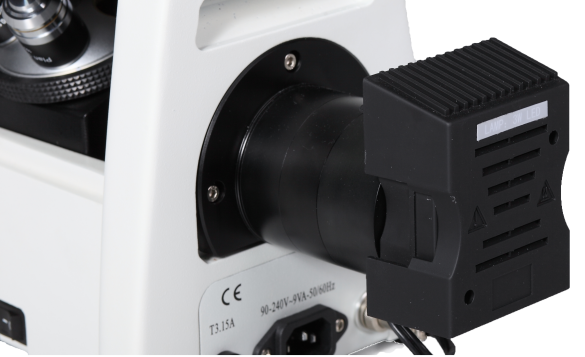

Lighting System: Adopting an epi-illumination Köhler lighting system with an adjustable aperture diaphragm and a center-adjustable field diaphragm, featuring a self-adaptive wide voltage range of 100V-240V and a 5W long-life LED illumination.
or 6V30W halogen lamp lighting system。

objective lens			Focusing system			Mechanical platform			Lighting system

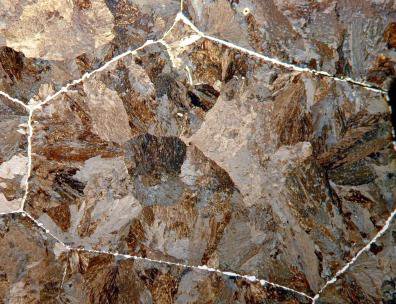

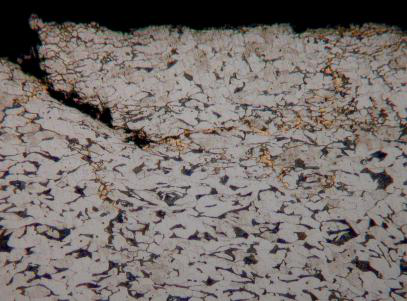

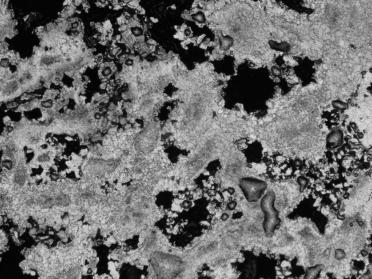

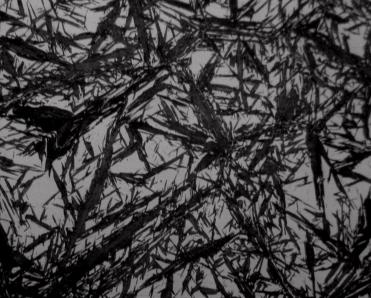

Digital* image real-shot effect picture:

Technical Specifications:

Optical system：Finite Distance* Aberration-Corrected Optical System

Observation Head: Hinged binocular tube, 45° tilt; trinocular tube with adjustable interpupillary distance and diopter.

Eyepiece：Large Field of View PL10X (Φ18mm)

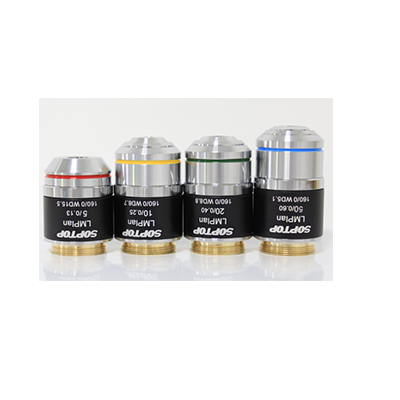

Long working distance flat-field apochromatic objective lens：LMPL5X /0.125 WD15.5mm

LMPL10X/0.25 WD8.7mm

LMPL20X/0.40 WD8.8mm

LMPL50X/0.60 WD5.1mm

Objective lens converter：Internal Positioning Four-Hole Converter

Focus adjustment mechanism：Low-position coarse and fine coaxial focusing mechanism, with a coarse travel of 38mm per revolution; fine adjustment accuracy of 0.02mm.

Lighting system：Episcopic Köhler illumination system, with variable aperture diaphragm and center-adjustable field diaphragm, adaptive wide voltage 100V-240V, single 5W warm white LED lamp.
The light intensity is continuously adjustable.or6V30W halogen lamp，The light intensity is continuously adjustable.Lighting system。

Stage：Three-layer mechanical moving stage, area 180mm × 155mm, right-hand low-position control, travel range: 75mm × 40mm.
Workbench board: Metal stage plate (center hole Φ12mm)

Filter：Yellow, green, blue, frosted.

Accessories:
Eyepiece: High eyepoint, large field of view, flat-field eyepiece PL10X/18mm, can be equipped with a micrometer.

High-eyepoint wide-field eyepiece WF15X/13mm, can be equipped with a micrometer.

High-eyepoint wide-field eyepiece WF20X/10mm, can be equipped with a micrometer.

Objective Lens: LMPL100X/0.80 WD2.00mm
Polarizing attachment：Polarizer insert plate, fixed analyzer insert plate, 360° rotating analyzer insert plate

Software matching：FMIA2021 genuine metallographic analysis software system, 5-megapixel imaging device, 0.5X adapter lens interface, high-precision micrometer.

The FCM2000 comes with a thoughtful range of accessories to meet your diverse and personalized needs in industrial inspection.

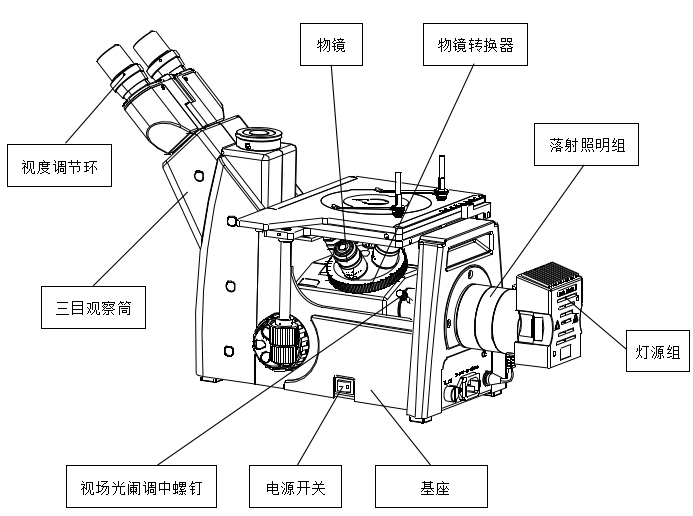

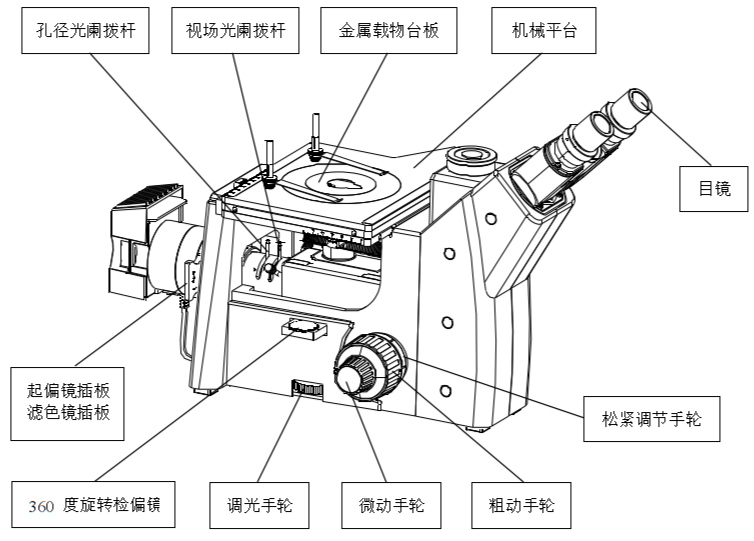

**Component Diagram:**

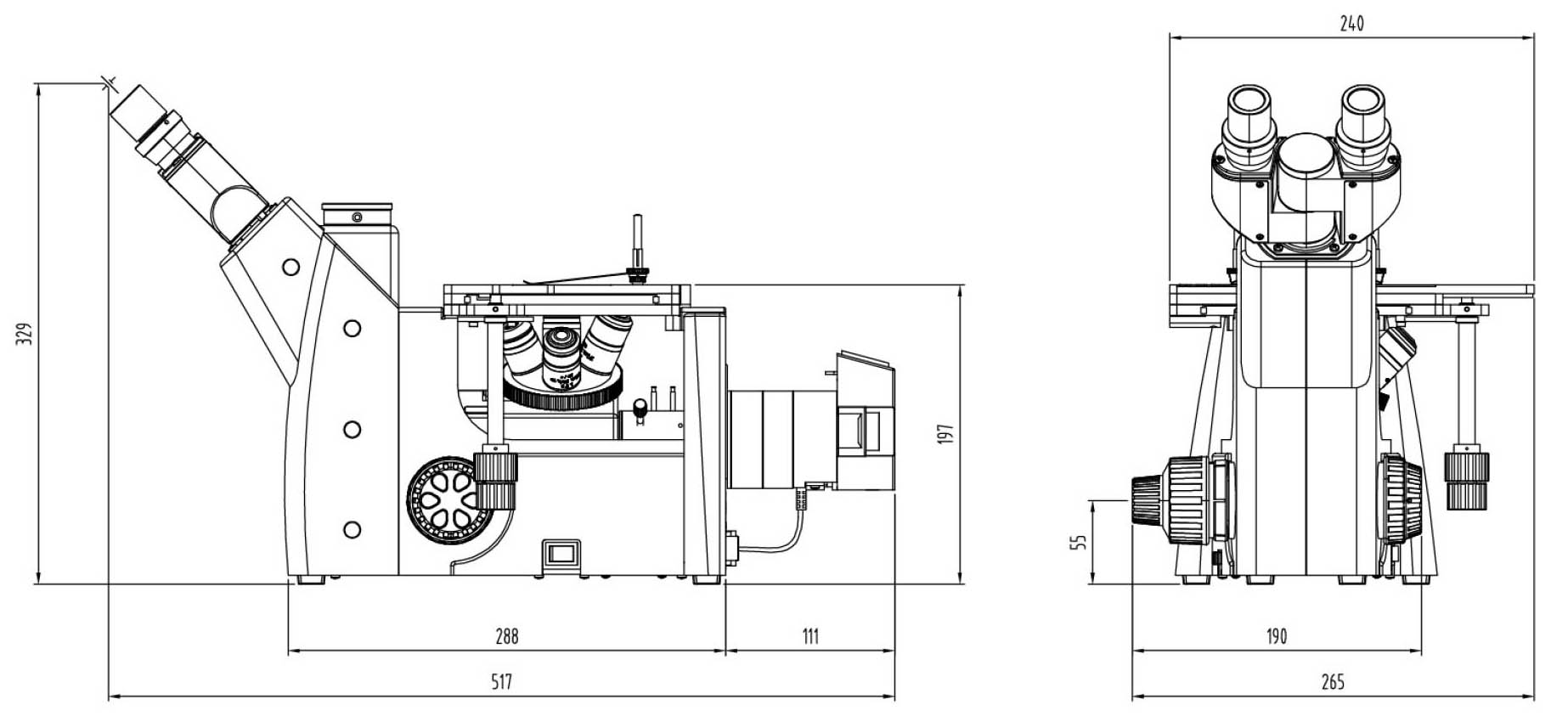

Overall Dimensions:
