Three-dimensional mixer

I. Product Introduction

Three-dimensional motion mixers are widely used for the efficient mixing of powdered and granular materials in industries such as pharmaceuticals, chemicals, food, light industry, electronics, machinery, mining and metallurgy, national defense, and various scientific research institutions. The three-dimensional mixer utilizes the spatial three-dimensional motion of the mixing drum to eliminate phenomena such as specific gravity segregation, stratification, and accumulation caused by centrifugal forces, enabling mutual flow and diffusion among multiple materials, thereby achievingTo achieve fast and uniform mixing of materials. Among various types of mixing equipment currently available, the three-dimensional mixer is an ideal advanced product in terms of overall performance.

II. Working Principle

The material-loading cylinder, driven by the main shaft, performs repetitive compound movements such as translation, rotation, and flipping, prompting the materials to undergo three-dimensional compound motion along the cylinder. This enables mutual flow, diffusion, accumulation, and mixing of various materials, achieving uniform blending. The mixing cylinder of this machine moves in multiple directions, and the materials are not subjected to centrifugal force, eliminating issues such as gravity-induced segregation, stratification, and accumulation. It is an ideal product among various mixers currently available. This product features a high cylinder loading rate, with a maximum of90% (compared to only 40% for ordinary mixers), high efficiency, and short mixing time. The cylinder body features smooth arc transitions and has been precision-polished.

III. Product Features

◇ The loading rate of the three-dimensional mixer drum is high, **reaching 80~90% (compared to 40~50% for ordinary mixers)**;

◇The barrel structure of the three-dimensional motion mixer is compact, making loading and unloading convenient and intuitive.

◇ High uniformity of material mixing, short mixing time, and low energy consumption — efficient and energy-saving.

◇ The three-dimensional mixer is made of stainless steel, featuring an attractive appearance, washable design, and easy cleaning for users during large-scale production.

◇ All parts of the three-dimensional mixer's drum body feature smooth arc transitions, and after multiple precision polishing processes, it achieves a dead-angle-free design, preventing material retention, facilitating easy discharge, and simplifying cleaning.

◇Due to the multi-directional movement of the mixing drum, the materials are essentially free from centrifugal force, resulting in no specific gravity segregation, stratification, or accumulation.

◇ In addition to the stainless steel mixing tank, this model also allows for the replacement of the mixing tank material, such as nylon, polyurethane, polytetrafluoroethylene, corundum, zirconia, agate, and other materials.

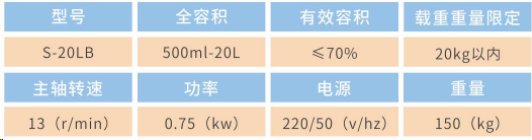

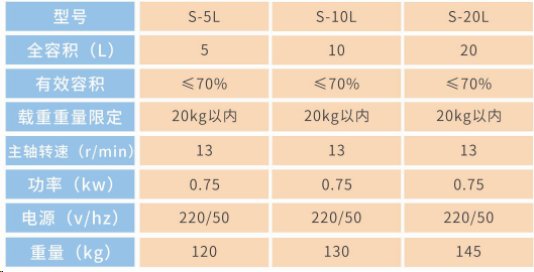

IV. Product Parameters
