Working Principle of Jet Mill

An air jet mill operates by cooling, filtering, and drying compressed air, which is then ejected through nozzles to form supersonic air jets that enter the grinding chamber. Under the effect of pressure differential, the material is fluidized. The accelerated particles converge at the intersection point of multiple nozzles, undergoing intense impact, collision, friction, and shear forces to achieve ultra-fine grinding. The finely ground powder is carried upward by the rising airflow to the upper turbo classifier. Under the combined action of the centrifugal force from the classifying wheel and the suction force of the fan, the fine powder meeting the required particle size is discharged and sent to the next stage for further classification or collection. The purified gas is expelled by the induced draft fan.

Material Introduction

White carbon black, as an environmentally friendly and high-performance additive, is primarily used in rubber products (including high-temperature vulcanized silicone rubber), textiles, papermaking, pesticides, and food additives. Driven by growing demand in tire manufacturing, silicone rubber industry, coatings industry, new energy, and other sectors, the annual demand growth rate for precipitated white carbon black (silica) in China is expected to be approximately 10%.

Equipment Features

The JZL fluidized bed jet mill, as the core product of Sichuan Juzi, offers the following performance advantages:

1. Classification using a turbo classifier results in a concentrated particle size distribution, with no oversized particles in the final product.

2. The equipment has a compact and reasonable structure, occupying a small area.

3. Low-temperature medium-free crushing, especially suitable for crushing low-melting, heat-sensitive, and volatile materials.

4. For flammable, explosive, or easily oxidized materials, inert gas can be used as a medium to achieve closed-circuit crushing, with the inert gas being recycled, resulting in extremely low losses.

5. It features a variable combination structure, serving dual purposes with one machine—capable of both crushing and independent classification.

6. It supports multi-stage series connection, with 1 to 5 classifiers configured in series to produce products with a narrow particle size distribution.

7. Wide range of crushing particle sizes, with the final product particle size adjustable arbitrarily within the range of d97 = 3 to 74 µm. Full range of models available, with output capacities from 5 to 1000 kg/h to choose from.

8. Fully enclosed negative pressure operation, no dust pollution, providing a healthy and excellent production environment.

9. High degree of automation, good stability, and simple and easy-to-understand operation.

Application Areas

The airflow pulverizer customized and produced by Sichuan Juzi is widely used in the ultra-fine crushing and classification of dry materials such as chemicals, abrasives, ceramics, environmental protection, new materials, new energy, non-metallic minerals, pharmaceuticals and food, powder metallurgy, and battery materials, particularly for low-temperature, high-purity, and high-hardness applications.

Pre-sale, In-sale, and After-sale Service Guarantee

1. The buyer may visit the company's workshop and conduct free experiments with the supplied materials to observe whether the experimental results meet the customer's requirements.

2. The buyer proposes customized equipment requirements, and the supplier strictly manufactures according to the parameters provided by the customer.

3. The supplier shall complete production with guaranteed quality and quantity within the contractually specified timeframe, and dispatch the goods on time as required.

4. The supplier's commissioning personnel will arrive at the site with the goods and provide free guidance on installation, commissioning, and training for 1-2 commissioning personnel.

5. The warranty period for the equipment is 12 months from the date of acceptance by the buyer. During the warranty period, the supplier will provide free technical guidance and equipment adjustments for any malfunctions.

6. If equipment malfunctions after the warranty period, the supplier will also assist the buyer in resolving the issue and provide after-sales service at any time.

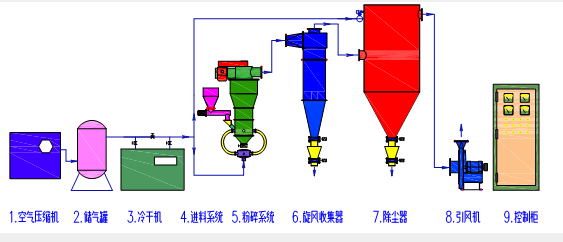

Process Flow Diagram of Jet Mill

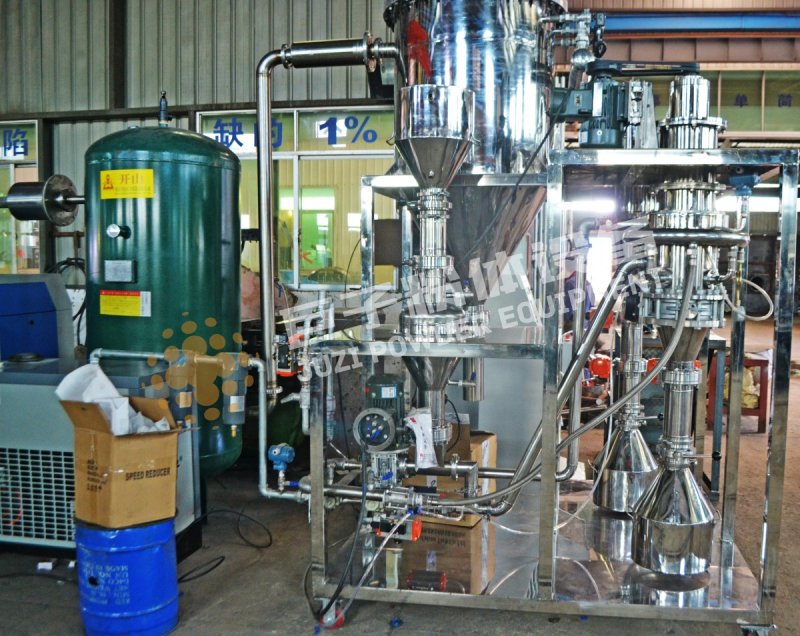

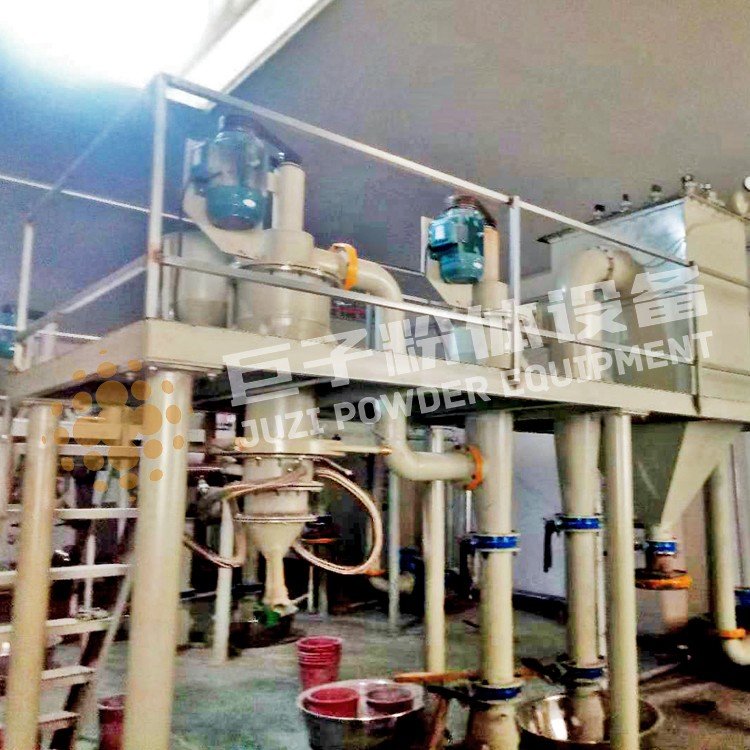

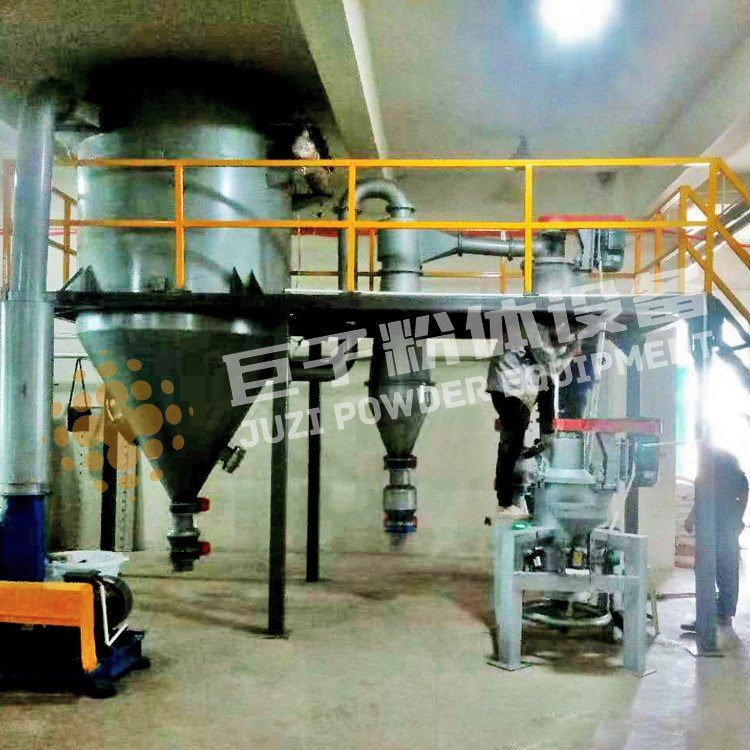

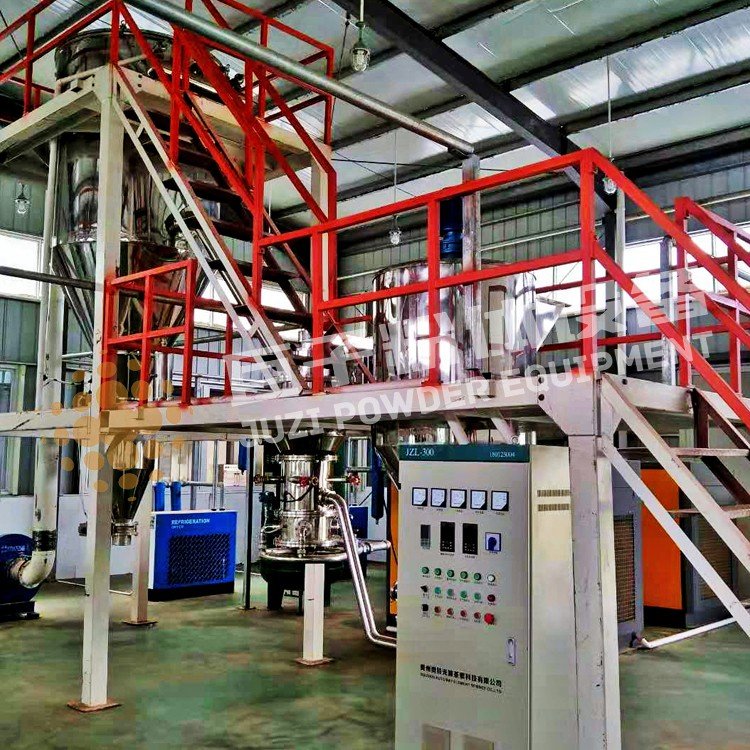

Equipment Display
