Ultrafine alloy powder is Metal parts3D Important materials in the printing industry chain, serving as 3D Printing metal powder, titanium alloy powder needs to have good plasticity, The powder particles are fine in size, with a narrow particle size distribution and high sphericity. They must also maintain good flowability and high apparent density. However, after gas atomization, ultrafine titanium alloy powder often exhibits a phenomenon where large particles and multiple small particles adhere to and agglomerate with each other, commonly known as“Satellite sphere adhesion”。

The flowability of agglomerated powder decreases, which may Directly affects the uniformity of powder spreading during the printing process and the stability of the powder feeding process.

In response to market demand,Sichuan Juzi Powder Equipment Co., Ltd.Independently developed and designedJZDBLSeries of Inert Gas Protection Airflow Dispersion, Deagglomeration, and Classification Equipment, with its unique principles and advantages, is used for the dispersion and deagglomeration of titanium alloy powders. It is currently widely applied in numerous titanium alloy powder processing enterprises both domestically and internationally.

The principle of breaking apart and de-aggregation.

JZDBLSeries of Inert Gas Protection Airflow Dispersion, Deagglomeration, and Classification EquipmentYes.Using the high-speed airflow generated by the Laval nozzle's entropy change reaction, the metal powder rotates and flows within the chamber. The raw material particles collide and rub against each other, creating a kneading effect that fully separates the particles and forms independent particles.

The equipment is equipped with a high-precision turbo classifier, which can promptly extract fine powders generated during the dispersion and deagglomeration process, preventing re-agglomeration.JZDBLAfter being dispersed by the jet mill, the apparent density of the titanium alloy powder increases, significantly improving its flowability.

Before breaking up: After breaking up:

Equipment Features

Given the physical properties of titanium alloy powder, which are flammable and explosive, JZDBLThe model jet mill replaces the ordinary air source with inert gas and uses a closed-loop circulation system to isolate the raw material from air throughout the dispersion process, achieving explosion-proof effects. The inert gas is recycled for reuse.

This equipment features high classification precision, efficient grinding, a compact structure, low noise, simple operation, and easy cleaning, earning high recognition from numerous users. In addition to titanium alloy powder, it is also suitable forStainless steel powder, cobalt-chromium alloy powder, silver powder, magnesium-aluminum alloy powder, etc.Dispersion and classification of other alloy powders.

Scope of Application

It has been widely used in the preparation of high-end powders in the new materials industry. In addition to titanium alloy powder, the equipment is also suitable for the dispersion and classification of other metal and alloy powders. At the same time, the machine can be used for surface modification and shaping of materials, improving tap density and altering particle morphology.

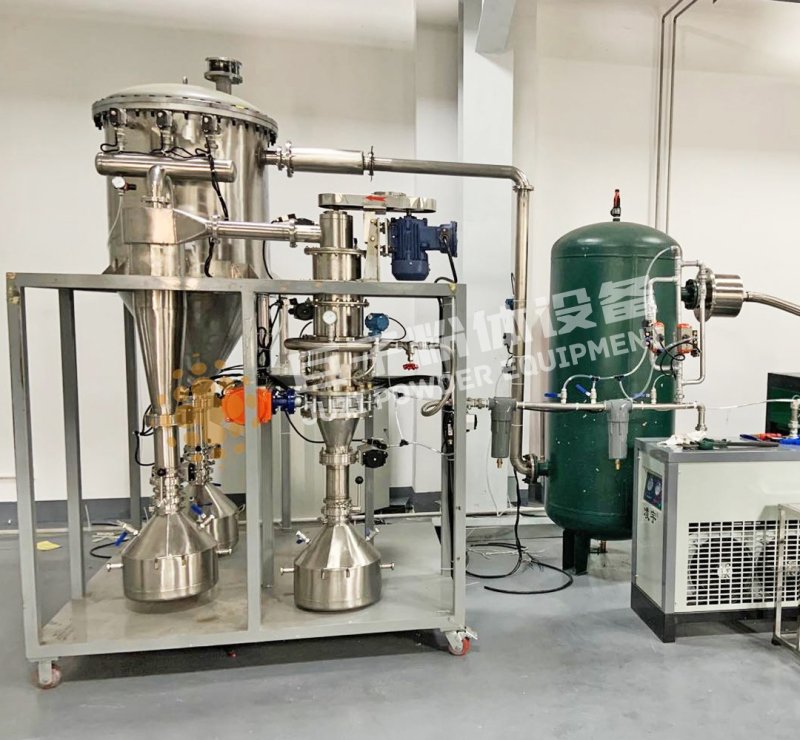

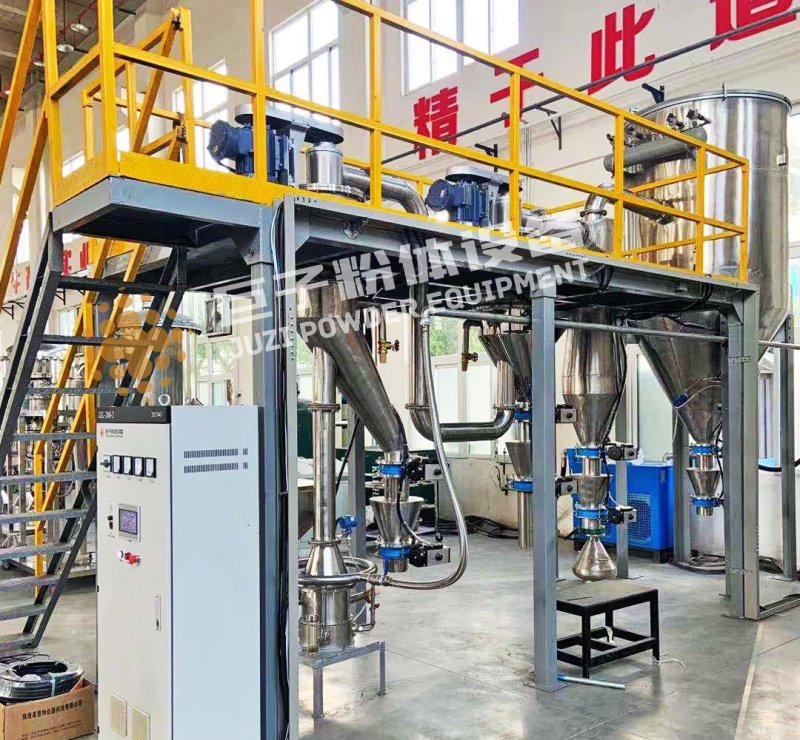

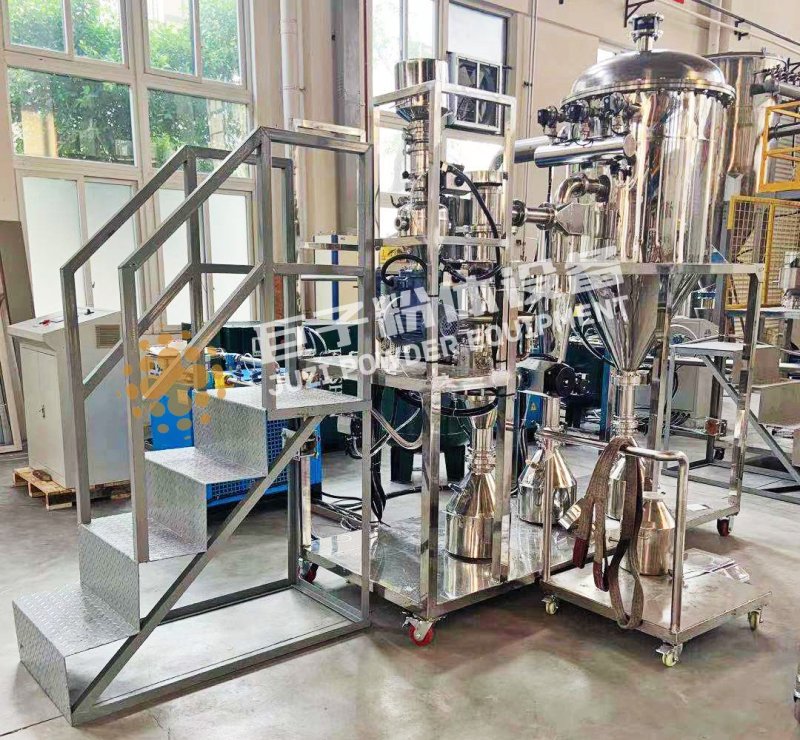

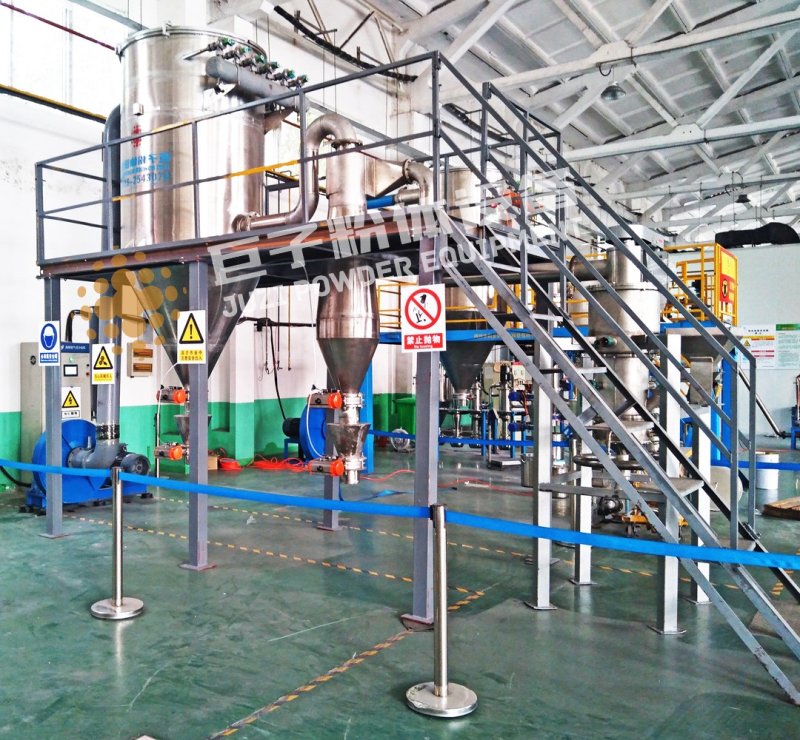

Equipment Display
