Special equipment for diamond jet mills, mainly produced by Sichuan Juzi.JZLComposition of the series crushers. Custom manufacturing and production are carried out based on the different requirements and applications of superhard materials such as synthetic diamond and boron nitride, as well as varying production capacities. Diamond jet mill.It features low wear, high precision control, and uniform particle size distribution. It can be widely used in micron-level experiments and production of superhard materials such as synthetic diamond and cubic boron nitride.

Equipment Selection1：Airflow crushing equipment-JZLSeries

Equipment Material: Stainless steel304

Applicable model1：JZL-100-2;JZL-200-2

Application Areas:Diamond

Typical materials:Superhard materials such as synthetic diamond and cubic boron nitride.

Equipment Selection

The diamond-specific airflow pulverization and classification machine is based on the originalJZLBased on the physical properties of diamond and processing requirements (reducing ultrafine powder and improving yield), a specialized jet mill classifier has been developed. Welcome to call for consultation!!

Equipment Features

1Materials collide with each other for crushing, resulting in minimal wear and no iron contamination in the product.

2The production process requires no water, no washing, and is completely dry, allowing for the completion of production in a single step to obtain diamond micro-powder with a better particle size distribution.

3A stable, complete graded flow field, along with special sealing measures, reliably prevents the leakage of coarse particles, resulting in a narrow particle size distribution with no large particles.

4It has a certain shaping function for particle morphology.

5Variable combination structure: dual-purpose machine, capable of both crushing and independent classification.

6All easily worn parts are treated with wear-resistant measures, which significantly reduces equipment wear and extends service life. It features automated control, low noise, and no dust pollution.

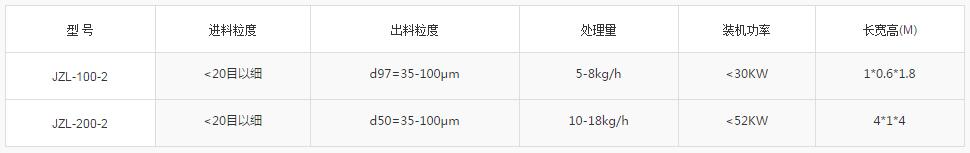

Device Parameters

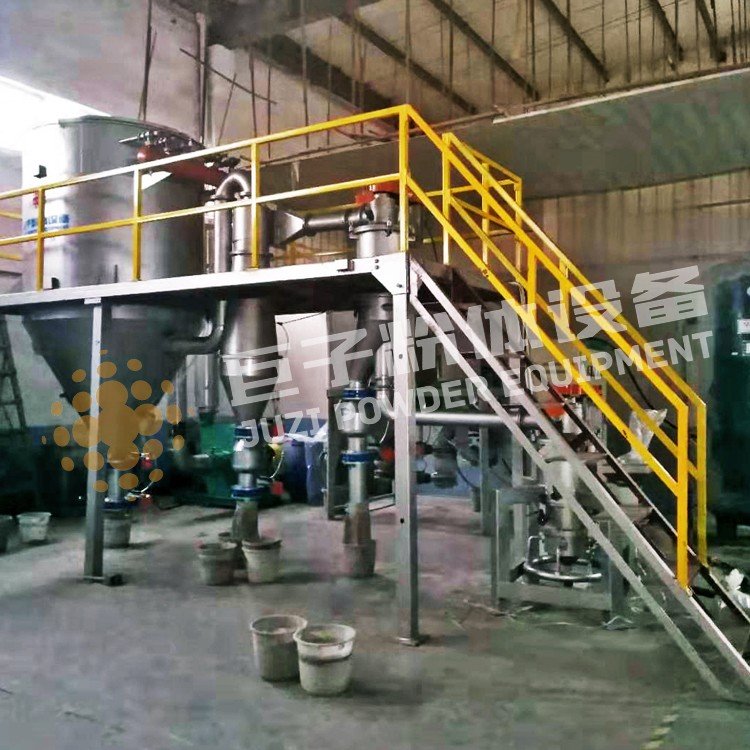

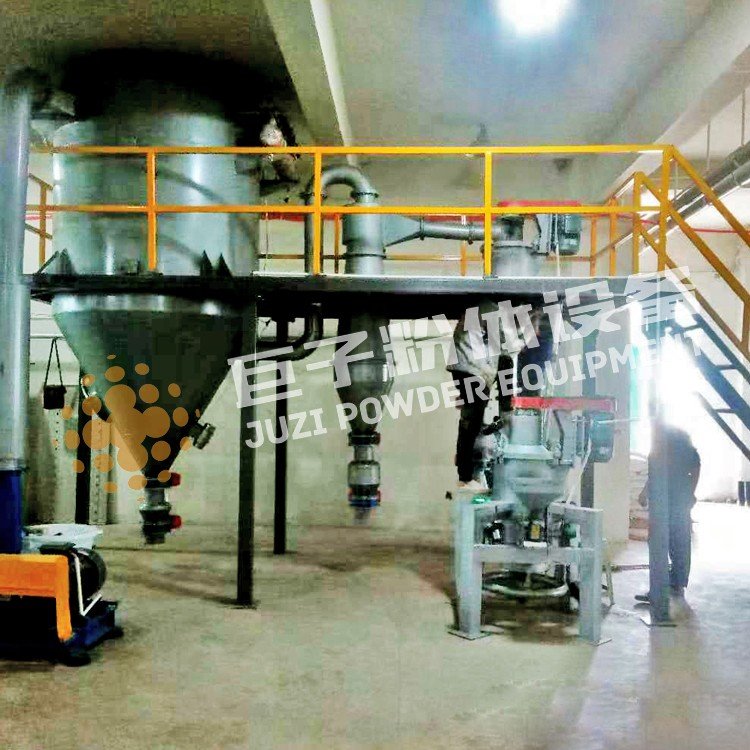

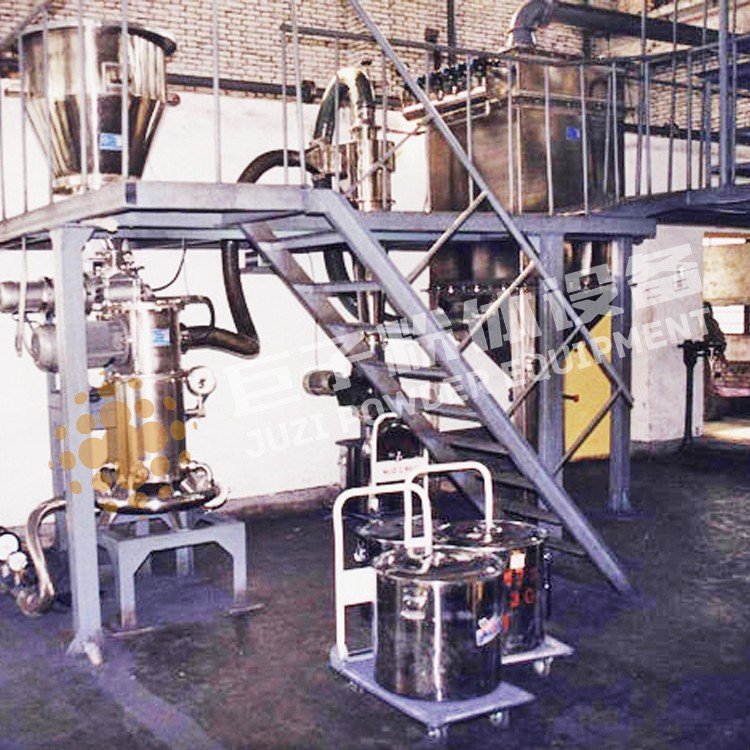

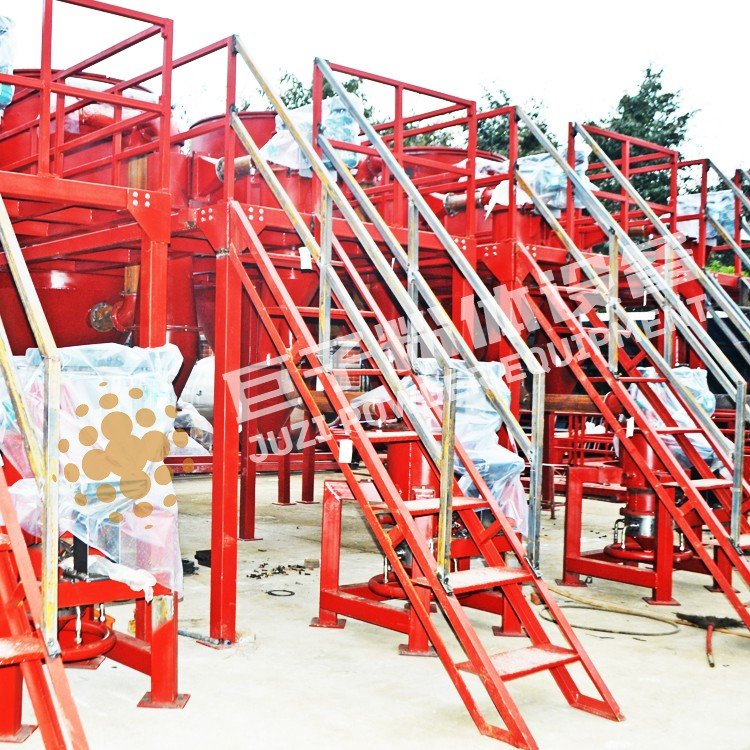

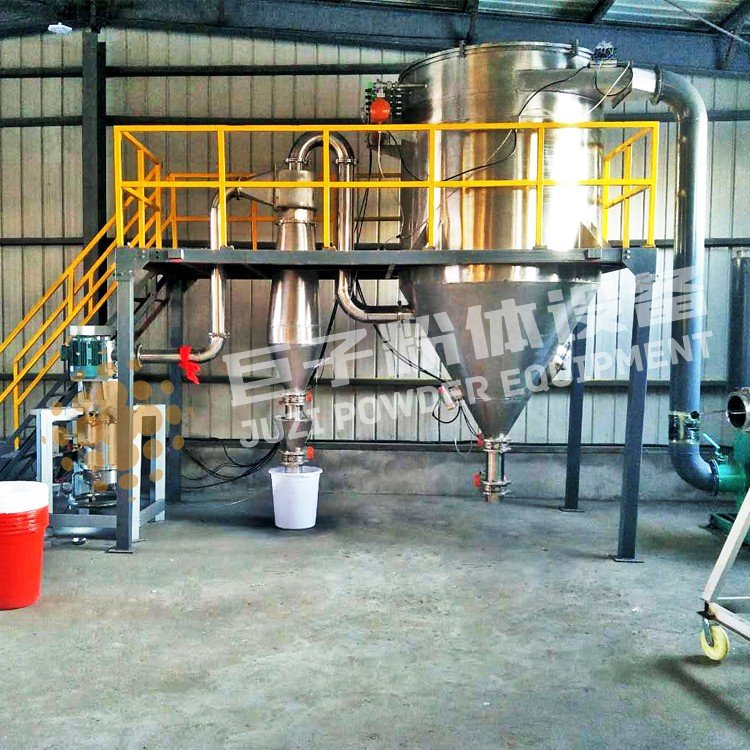

Equipment image
