Working principle

JZLThe fluidized bed series jet mill is a fluidized bed jet mill **independently developed** by our company.It is an upgraded product replacing traditional fluidized bed jet mills, opposed jet mills, horizontal jet mills, and other types of jet mills. The equipment mainly consists of a grinding main unit, a high-precision turbo classifier, a cyclone collector, a bag filter, an air compressor, and other components; the full utilization of jet energy is a **key feature** of this machine.

Equipment Features

This machine is a **combination** of a new type of fluidized bed and a high-precision vertical turbo classifier. Its features: 【Green and Environmentally Friendly】 Low-temperature, media-free grinding ensures the purity and physicochemical properties of the product. The equipment operates under negative pressure with no dust pollution.
1【High Efficiency】Full utilization of jet energy, improved compared to traditional jet mills.30%Higher crushing efficiency and classification accuracy.
2【Low Wear】"Fluidized bed+Vertical Turbo Classifier"It can process ultrafine powders with high purity and narrow particle size distribution, avoiding the "opposed jet"+Wear of the crushing section of the "vertical turbine classifier" and the "fluidized bed"+Under the same material conditions, the wear of the classification section of the "horizontal classifier" results in a service life of its easily worn parts that is equivalent to that of similar international products.20times. Minimal wear makes it especially suitable for ultra-fine grinding of materials with high hardness and high purity.
3【High Yield】When producing products with a narrow particle size distribution, the yield rate is higher compared to traditional opposed-jet and fluidized-bed jet mills.1times or more. 【Multi-purpose】One machine for multiple uses, can be used as a crusher or as a classifier alone. Wide range of crushing particle sizes, with the final product particle size ranging from1～74µmAdjustable within the range.
4【Intelligent】equipment can achieve fully automatic control, with simple operation, stable operation, and an excellent production environment, making the equipment more intelligent.
5【More Rational Design】The equipment features a compact structure, with no material accumulation or dead corners inside the crushing chamber, making it easy to disassemble, clean, and sterilize, and convenient for changing product varieties.

Application Areas

This series of pulverizers and classifiers, with their unique working principle, can process ultra-fine powders of various materials in a dry, high-purity, and low-temperature manner. They are widely used in industries such as chemicals, mining, abrasives, battery materials, refractory materials, non-metallic minerals, metallurgy, building materials, pharmaceuticals, food, pesticides, feed, new materials, environmental protection, and various dry powder materials for ultra-fine grinding, dispersion, and particle shaping.

Typical materials: ceramic pigments, silicon carbide, garnet, ceramic corundum, boron carbide, diamond, tungsten carbide, ferrophosphorus; calcium carbonate, quartz, diatomaceous earth, calcium hydrogen phosphate, bentonite, talc, mica, wollastonite, high-purity pigments, luminescent powder, mobile phone battery powder; pollen, auxin, food additives, antibiotic drugs, contrast agents, reishi mushroom, pearl powder; insecticides, polytetrafluoroethylene, etc.

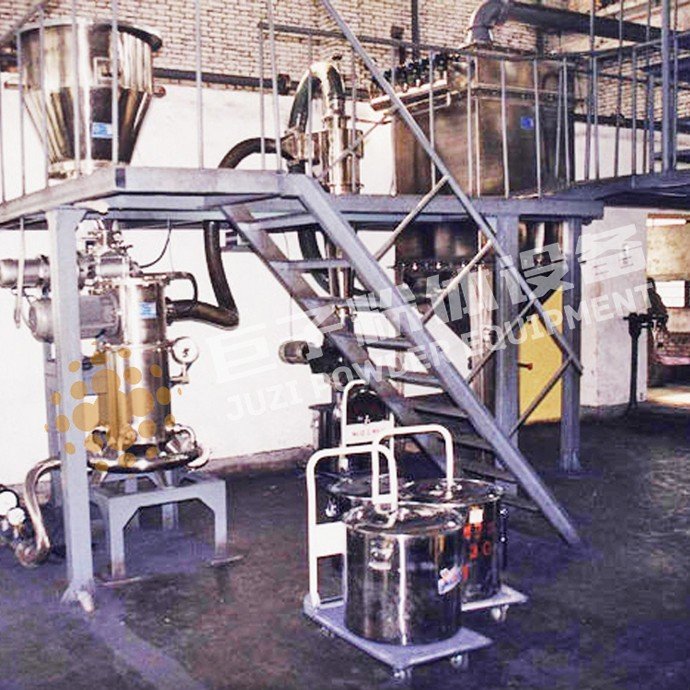

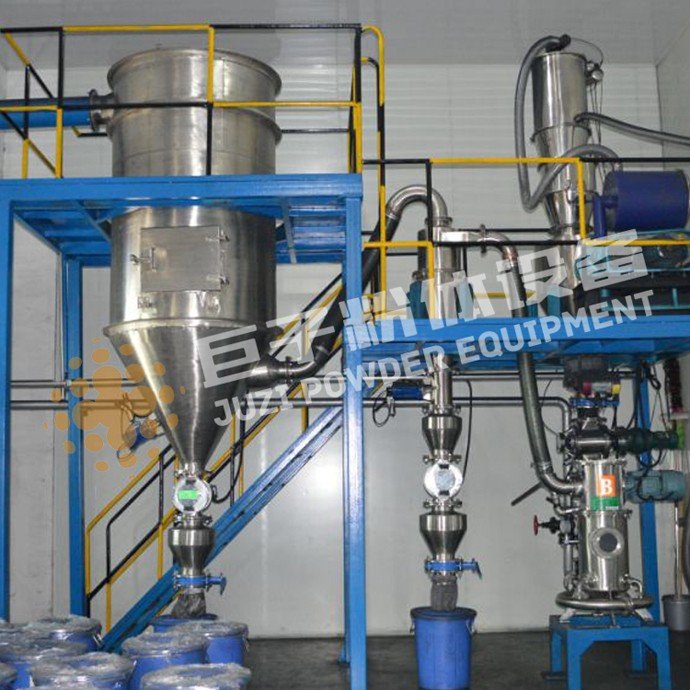

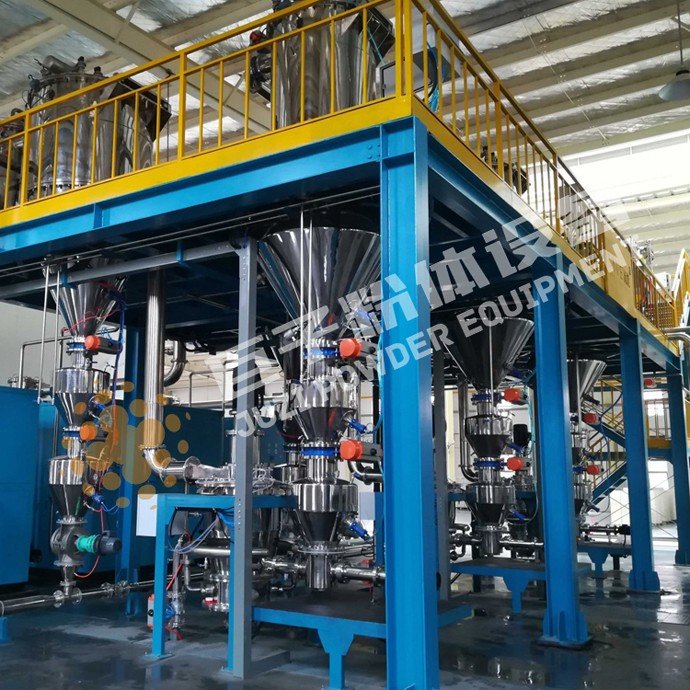

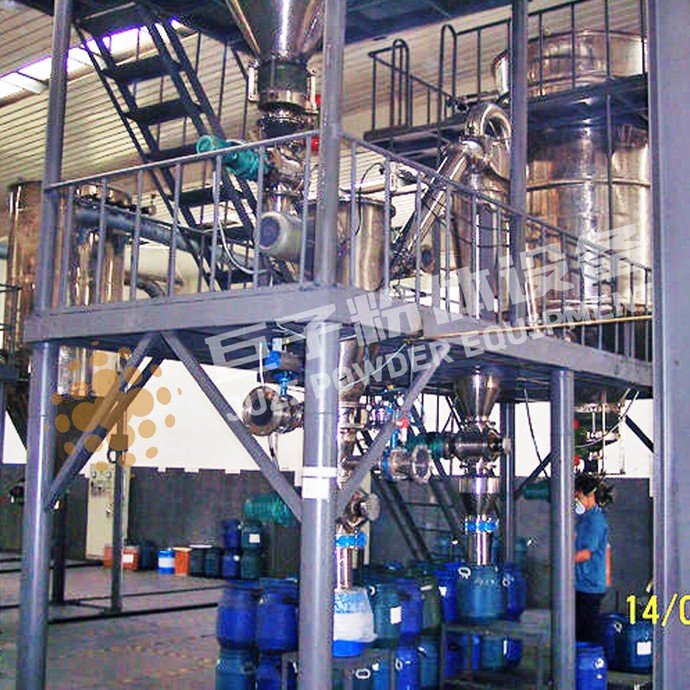

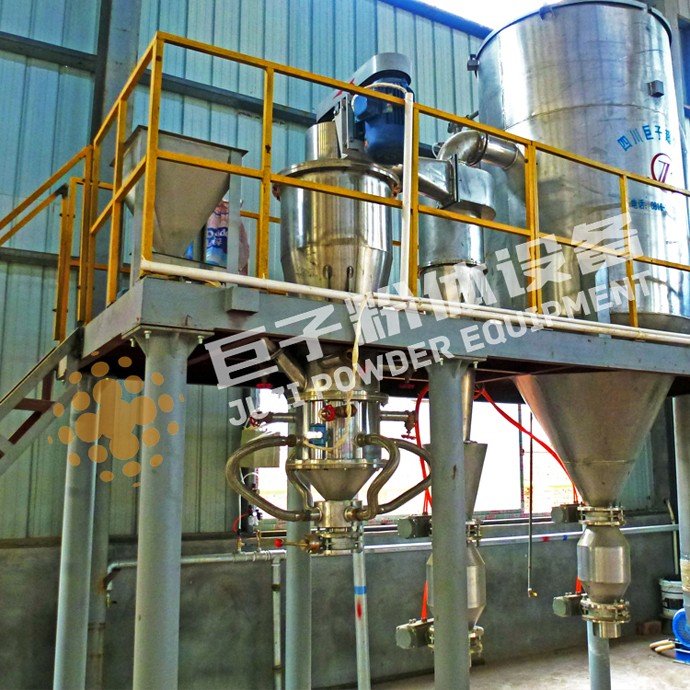

Equipment Display
