Properties and Uses of Magnesium Metal
As a "green engineering material of the 21st century," magnesium metal has been widely recognized worldwide for its abundant reserves, lightweight nature, and the advantages of magnesium alloys, such as high specific strength and stiffness, excellent thermal and electrical conductivity, good damping and electromagnetic shielding performance, ease of processing and forming, and recyclability of waste materials. It is extensively used in fields such as aerospace, military, and transportation (including the automotive, aircraft, motorcycle, and bicycle industries). Due to the excellent physical, chemical, and mechanical properties of magnesium and its alloys, the application of magnesium has gradually gained attention, and its demand is steadily increasing.
Working principle

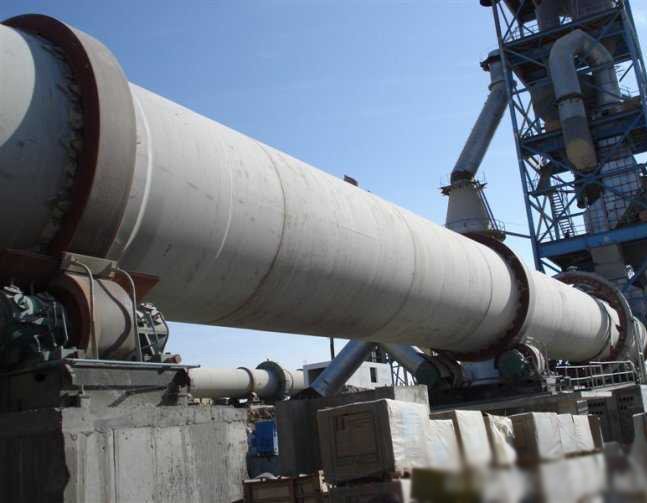

The magnesium metal rotary kiln equipment consists of components such as the rotary cylinder, support device, support device with thrust rollers, kiln head and kiln tail sealing devices, and a coal injection pipe device. The kiln body is inclined at a certain angle to the horizontal, supported by a roller support device, and equipped with a thrust roller device to control the axial movement of the kiln body. In addition to the main drive, the transmission part is also equipped with an auxiliary drive device to ensure slow rotation of the kiln body and prevent deformation in the event of a main drive power interruption. The kiln head adopts a shell-type seal, while the kiln tail is equipped with an axial contact-type sealing device, ensuring the reliability of the sealing.
Device Configuration
Configuration of a 5000-ton annual production rotary kiln for magnesium metal
400×600 jaw crusher, 250×1000 fine crusher, 2.5×40 rotary kiln, 2×20 meter cooler, MQG1.83×7 meter ball mill, MQG1.5×5.7 ball mill, MG1725 coal mill, HL300 bucket elevator, 2.5-meter coal gasifier, briquetting machine, vertical preheater, G×400 screw conveyor
Configuration of a 10,000-ton annual production rotary kiln for magnesium metal
600×900 jaw crusher, 250×1200 fine jaw crusher, 3×60 rotary kiln, 2.2×20 meter cooler, MQG2.4×8 meter ball mill, MQG1.5×5.7 ball mill, MG2233 coal mill, HL300 bucket elevator, 3-meter coal gasifier, briquetting machine, vertical preheater, G×400 screw conveyor
Technical Parameters of Magnesium Metal Rotary Kiln
| Product Specifications (m) | Kiln body dimensions | Output (t/d) | Speed (r/min) | Motor Power (kW) | Total weight (t) | ||
| Diameter (m) | Length (m) | Slope (%) | |||||
| Φ2.5×40 | 2.5 | 40 | 3.5 | 180 | 0.44-2.44 | 55 | 149.61 |
| Φ2.5×50 | 2.5 | 50 | 3 | 200 | 0.62-1.86 | 55 | 187.37 |
| Φ2.5×54 | 2.5 | 54 | 3.5 | 204 | 0.48-1.45 | 55 | 196.29 |
| Φ2.7×42 | 2.7 | 42 | 3.5 | 320 | 0.10-1.52 | 55 | 198.5 |
| Φ2.8×44 | 2.8 | 44 | 3.5 | 400 | 0.437-2.18 | 55 | 201.58 |
| Φ3.0×45 | 3 | 45 | 3.5 | 500 | 0.5-2.47 | 75 | 210.94 |
| Φ3.0×48 | 3 | 48 | 3.5 | 700 | 0.6-3.48 | 100 | 237 |
| Φ3.0×60 | 3 | 60 | 3.5 | 300 | 0.3-2 | 100 | 310 |
| Φ3.2×50 | 3.2 | 50 | 4 | 1000 | 0.6-3 | 125 | 278 |
| Φ3.3×52 | 3.3 | 52 | 3.5 | 1300 | 0.266-2.66 | 125 | 283 |
| Φ3.5×54 | 3.5 | 54 | 3.5 | 1500 | 0.55-3.4 | 220 | 363 |
| Φ3.6×70 | 3.6 | 70 | 3.5 | 1800 | 0.25-1.25 | 125 | 419 |
