I. Overview

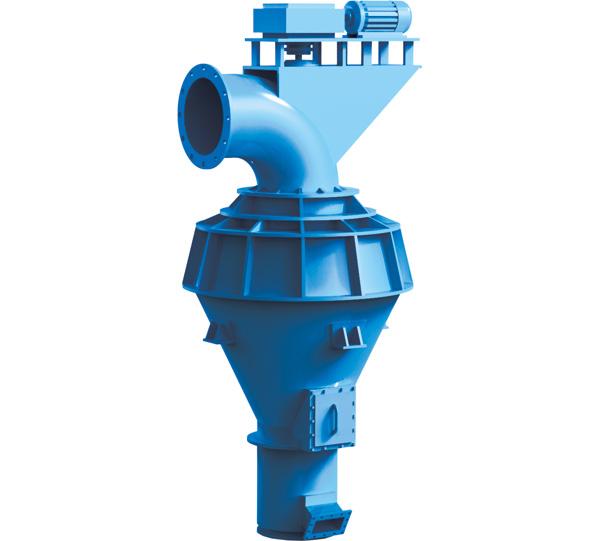

The MDS air-swept coal mill dynamic classifier is a high-performance classifier that integrates coarse powder separation and a horizontal vortex classifier, primarily used for air-swept coal mills.
The system can also be used for air-swept raw material mill systems and the classification of materials such as fly ash. In other words, any grinding system that employs an air-swept tube mill can adopt this system.
A type of powder classifier.
II. Performance Characteristics
1. Advanced classification principle, utilizing vertical guide vanes combined with a straight cage-type rotor, forming a high-quality separation structure with high classification efficiency.
2. The main shaft of the classifier adopts stepless frequency conversion speed regulation, making fineness adjustment convenient, sensitive, and reliable.
3. The vulnerable parts of the classifier are made of wear-resistant materials or treated with anti-wear processes, resulting in extremely low wear rates and effectively extending the service life.
Service life
4. The entire equipment operates under negative pressure, ensuring no dust pollution. The system has a simple structure, stable and reliable operation.
5. High output: 50–100% higher than open-circuit grinding systems, 10–30% higher than centrifugal classifier systems, and higher than systems with old-style
The output of the air-swept coal mill system with a coarse powder separator has increased by more than 20%.
6. Low power consumption: Under the same output, the power consumption is 5–20% lower compared to systems using centrifugal classifiers.
7. Wide range of product fineness adjustment: The specific surface area of the product can be selected within the range of 260 to 650㎡/kg.

III. Technical Performance Table

Technical Performance Table of High-Efficiency Dynamic Classifier for Air-Swept Mill
