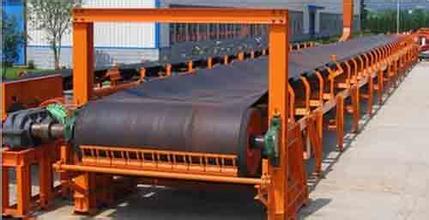

conveyor

【Conveying Length】:≤6-40m【Tape Width】:500-1600mm

Application Areas

Industrial sectors such as metallurgy, chemical engineering, building materials, electric power, and transportation.

Applicable Materials

River pebbles, granite, basalt, iron ore, limestone, quartz stone, diabase, iron mine, gold mine, copper mine, etc.
Commonly used conveying equipment is the belt conveyor, which offers advantages such as high conveying capacity, simple structure, easy maintenance, and standardized components. It is widely applied in industries such as mining, metallurgy, and coal to transport loose materials or packaged items. Depending on the requirements of the conveying process, it can be used as a single unit or combined with multiple units or other conveying equipment to form horizontal or inclined conveying systems, meeting the needs of various layout configurations for operational lines.
This series of conveying equipment can be used in an ambient temperature range of -20℃ to +40℃, with the temperature of the conveyed materials being below 50℃.

Highlighted advantages

The belt conveyor produced by our company can economically and efficiently transport various materials. In industrial production, belt conveyors can serve as a link between production machinery and equipment to achieve continuous production, thereby ensuring the continuity and automation of production processes, improving productivity, and reducing labor intensity.
The conveyor belt operates based on the principle of friction drive, offering advantages such as high conveying capacity, long conveying distance, smooth operation, no relative movement between the material and the belt, low noise, simple structure, easy maintenance, low energy consumption, and standardized components. As a result, it is widely used in industries such as mining, metallurgy, chemical engineering, casting, and building materials for conveying and production lines, as well as in construction sites of hydropower stations and ports. It is employed to transport loose materials or packaged items. Depending on the requirements of the conveying process, it can be used as a single unit or combined with multiple belt conveyors or other conveying equipment to form horizontal or inclined conveying systems, meeting the needs of various layout configurations. The belt conveyor can operate within an ambient temperature range of -20°C to +40°C, and the temperature of the conveyed materials should be below 50°C.

Working principle

A belt conveyor mainly consists of a frame, a conveyor belt, belt rollers, a tensioning device, and a transmission device. The body is constructed by connecting high-quality steel plates, forming the frame through the height difference between the front and rear legs, with the plane inclined at a certain angle. The frame is equipped with belt rollers and idlers to drive and support the conveyor belt. It is available in two drive modes: geared motor drive and electric drum drive.
