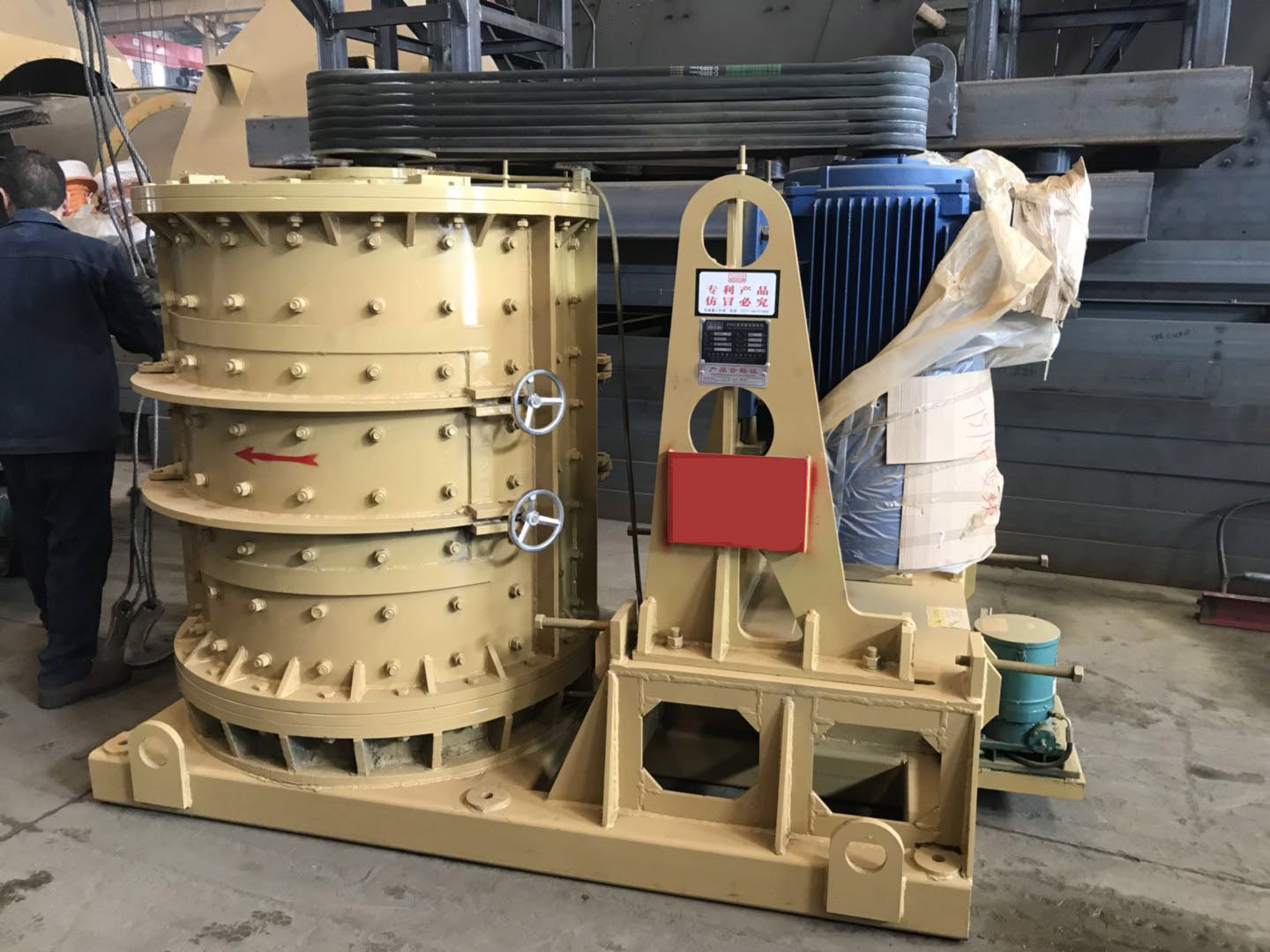

Introduction to Vertical Hammer Sand Making Machine

The vertical plate hammer sand making machine is a new type of fine crushing and coarse grinding product optimized and designed by integrating technologies from similar products both domestically and internationally. It can be widely used for crushing iron ore, sand and gravel, blast furnace slag, coal gangue, and other medium-hard ores.

The vertical plate hammer sand making machine is developed specifically for processing river pebbles and harder stones, incorporating multiple advanced technological features. It effectively addresses the challenges of crushing and shaping hard stones. This machine operates on the principle of fixed jaw and fixed hammer sand making, with multi-level grading treatment to ensure more uniform particle size and higher sand output efficiency. **Its key advantage lies in the hammer head component.** The hammer heads and lining plates used in this machine are made of high-alloy materials, further enhanced with trace elements such as copper and molybdenum, extending their lifespan to over 15 times that of ordinary hammer heads. This eliminates the need for frequent hammer head replacements, reducing additional costs.

Performance Characteristics of Vertical Hammer Sand Making Machine

1. The structural design is innovative, with no key connections throughout, ensuring smooth and reliable operation.

2. Low energy consumption, high output, and large crushing ratio.

3. The product has a good particle shape, appearing as cubes, with high bulk density and no over-crushing.

4. The equipment is compact in size, easy to operate, and convenient to install and maintain.

5. During the production process, a natural protective layer forms on the material, ensuring no wear on the machine body. In particular, it transforms the heavy, multi-ton wear-prone protective plates of other equipment into structural components that are durable and long-lasting, even requiring no replacement for a lifetime.

6. The number of wear parts is small, with compact size and light weight. They are made of special hard materials, ensuring a long service life and easy replacement. The total weight of all wear parts does not exceed 160 kg.

7. Users can achieve the ** production goal by adjusting the parameters of relevant structures according to product requirements.

Working Principle of Vertical Plate Hammer Sand Making Machine

The main working component of a vertical plate hammer crusher is the rotor equipped with hammers (also known as hammer heads). The rotor consists of a main shaft, discs, pin shafts, and hammers. The electric motor drives the rotor to rotate at high speed within the crushing chamber. Materials are fed into the machine from the upper feed inlet and are crushed by the high-speed moving hammers through impact, collision, shearing, and grinding actions. A screen plate is installed below the rotor. Particles smaller than the screen mesh size in the crushed material are discharged through the screen plate, while coarse particles larger than the screen mesh size are retained on the screen plate, continuing to be impacted and ground by the hammers until they are eventually discharged through the screen plate.

Technical Parameters of Vertical Plate Hammer Sand Making Machine
