The complete system is a new type of airflow classification system, using inert gas as the classification working medium. All components of the complete equipment that come into contact with materials are made of stainless steel (304). Its manufacturing process is based on our company's mature technology, ensuring reliable quality and stable performance. It has been widely applied in the processing of metal powders, easily oxidized raw materials, and flammable and explosive materials.
This system operates with a one-key start/stop method, automatically shuts down in case of a fault, and displays the cause of the fault.
Application Scope:Used for precise classification of 3D printing and MIM materials such as aluminum alloy, titanium alloy, and stainless steel metal powders.Additionally, the device is equipped with a dispersion and deagglomeration function to ensure thorough dispersion of the powder. With a mature manufacturing process and stable, safe performance, it has been successfully applied in the 3D printing market both domestically and internationally.

FEATURES:

1. Oxygen Isolation: Use inert gas to replace the air in the closed circulation system, completely isolating it from the air, and maintaining a stable oxygen content within the system.
2. Promptly release static electricity and eliminate ignition sources: The pulse-jet reverse cleaning collector uses anti-static special filter media to promptly eliminate static electricity. All metal components of the equipment are grounded to discharge static electricity from the powder.
3. Circulating Air Cooling: A fully closed-loop circulation system with finned coolers installed in the pipes, effectively reducing the internal temperature of the equipment.
4. Explosion-proof: The system is equipped with multiple explosion-proof vents and uses explosion-proof motors and other explosion-proof devices, ensuring better sealing performance and effectively reducing dust accumulation.

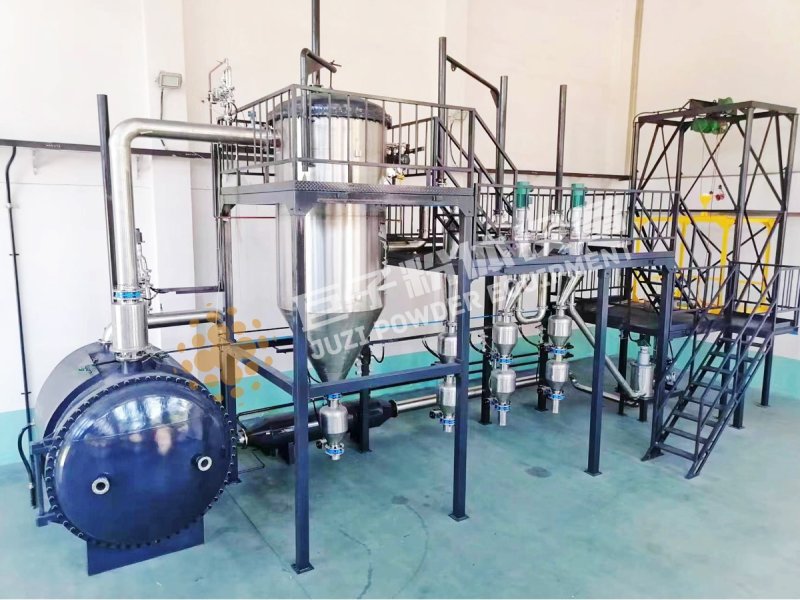

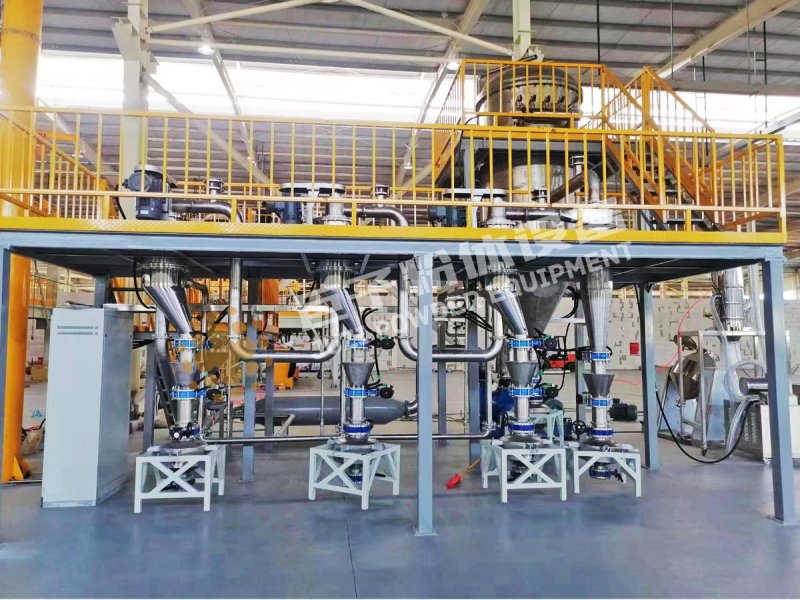

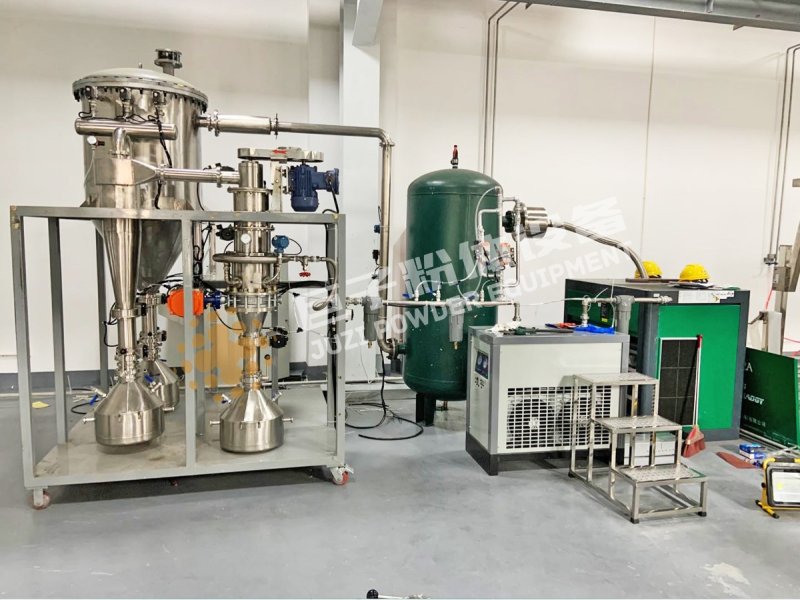

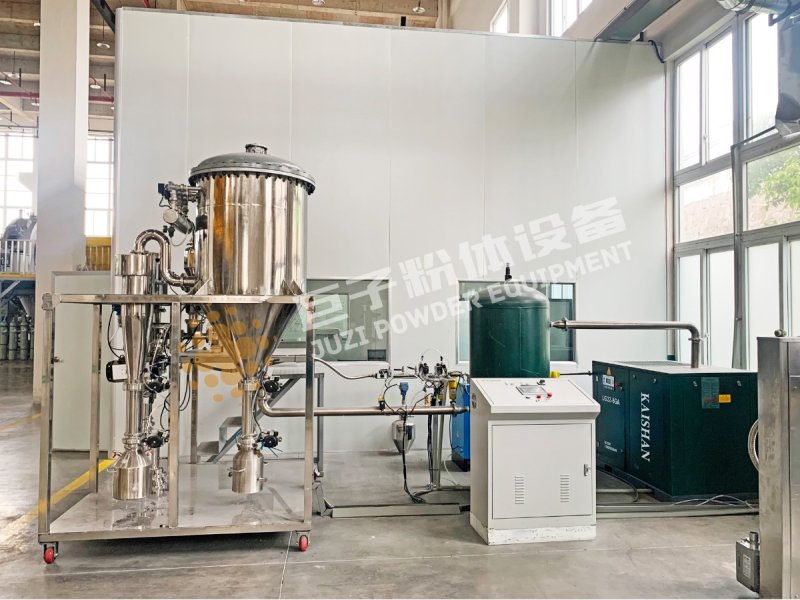

Equipment Exhibition
