Cemented carbide, superhard materials, and tungsten carbide classifier-specific equipment. Sichuan Juzi mainly consists of four major product categories and over twenty series. According to cemented carbide,Superhard material raw materials, with different production capacities and applications, require specialized equipment for customized manufacturing. The products feature high classification accuracy, uniform particle size distribution, and large output. They are widely used in cemented carbide.,Mass production of superhard material crushing and classification.

Equipment Selection1：Airflow Pulverization Equipment - JZL Series

Equipment Selection2：Air classification equipment-JZFSeries

Equipment Selection3：Nitrogen-protected crushing equipment-JZDBSeries

Applicable model1：JZL-100,200,300,400,600type

Applicable model2：JZF-100,200,300,400,600type

Applicable model3：JZDB-100,200,300,400,600type

Equipment Material:Stainless steel304

Application Areas-Cemented CarbideTypical materials include-Tungsten powder, iron powder, cobalt powder, nickel powder, carbonyl iron powder, alloy powder, tungsten carbide industry, etc.

Equipment Selection

According to cemented carbide,As:Physical properties of tungsten carbide: precise control of classification particle size using a high-precision airflow classifier, with options available based on different production volumes.JZF-200ToJZF-600-type equipment. Metal iron powder, tungsten powder, etc. can be selected.JZLSeries airflow pulverization,JZFHigh-precision airflow classification equipment and optional nitrogen-protected crushing and classification equipment for nickel-hydrogen alloys, spherical aluminum powder, and other materials.

Equipment Features

1During the processing, full negative pressure operation is maintained, ensuring no dust pollution on site and keeping the environment clean and dry.
2Tungsten carbide can achieve precise control classification.,1-30The micron particle size can be arbitrarily adjusted.
3The precision of crushing and classification for cemented carbide superhard materials isD97=3-74Adjustable arbitrarily within micrometers.
4High output, high purity, and low-temperature operation.
5Using bag-type dust collection, sectional reverse blowing, offline cleaning, with a collection rate75%Above, effectively reducing the loss of raw materials.

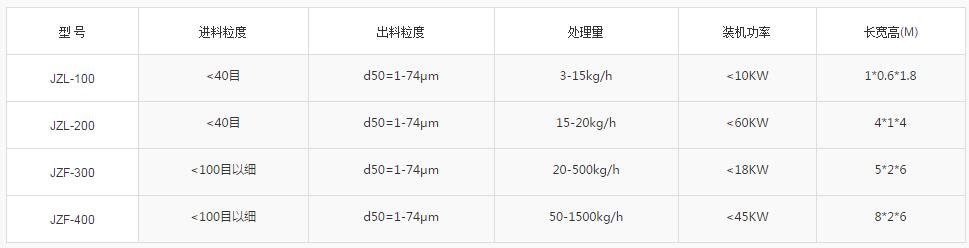

Main Technical Parameters

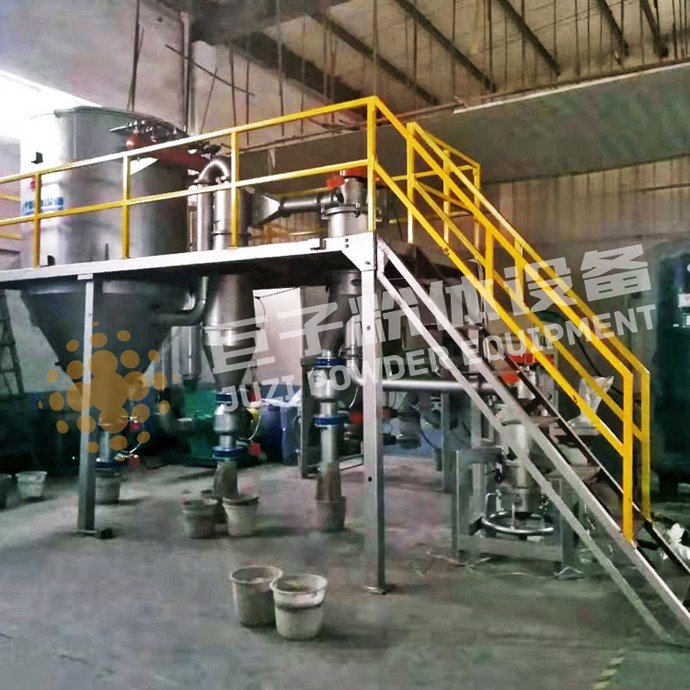

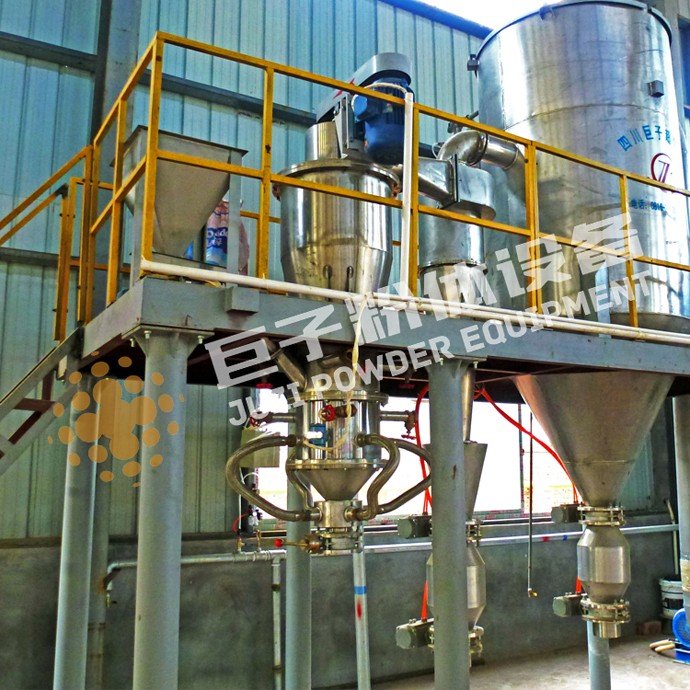

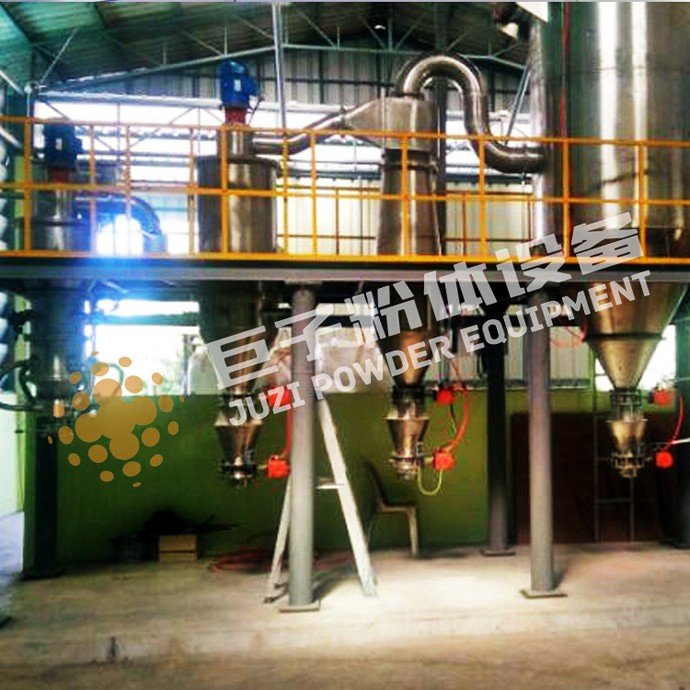

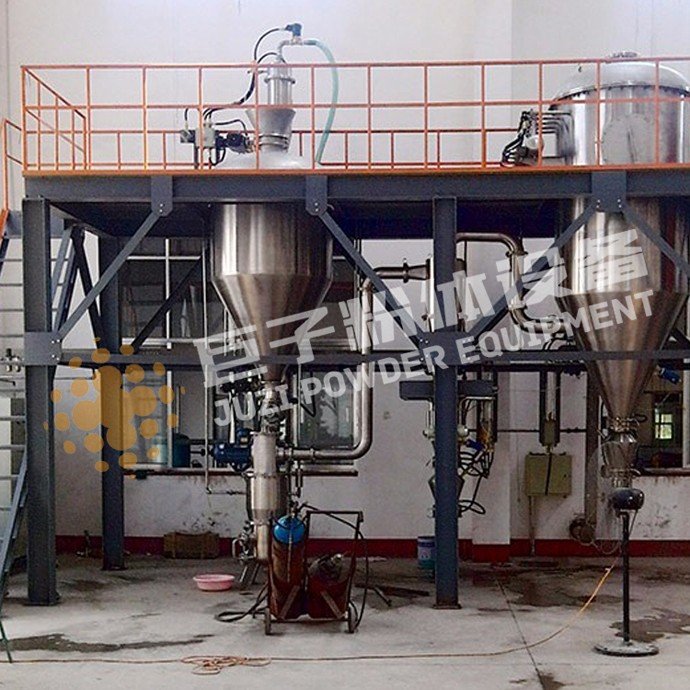

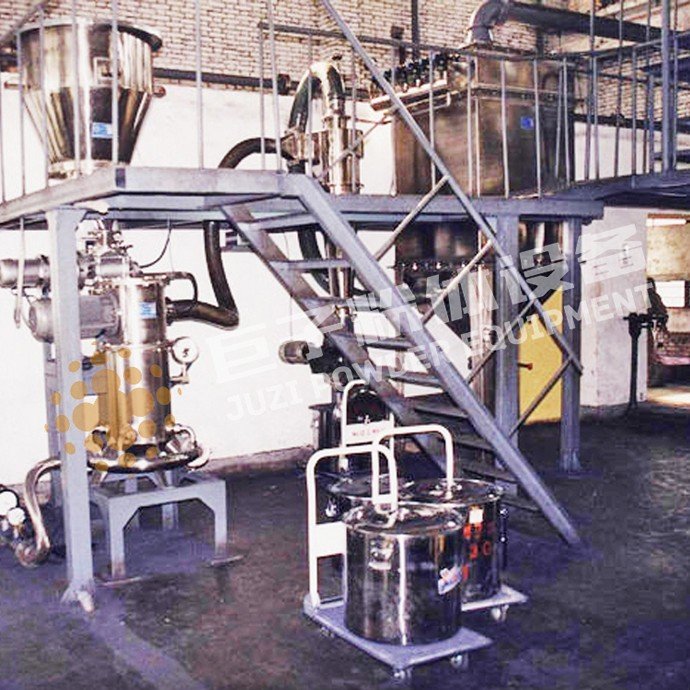

Equipment Display
