High-precision turbineAir classifierFor the dry airflow classifier,It is a centrifugal classifier equipped with a flow field control device and a high-speed turbine rotor, featuring a wide classification range., High classification efficiency, high classification accuracy, precise cut size, and good stability.

Equipment Selection:Air classification equipment-JZFSeries

Application model:JZF-100,200,300,400,1250type

Equipment Material1：Stainless steel304

Equipment Material2：Carbon steel

Equipment Material3：Ceramics

Application Areas:General

Typical materials:Dry Material General

Equipment Features

（1) Wide classification range: This machine can classify any organic and inorganic materials, with a classification particle size ofd97＝3～74um, granular particles that can be graded into spherical, flaky, and fibrous forms;It can also separate materials with significant differences in specific gravity.

（2) High classification accuracy: A complete and stable classification flow field with reliable sealing enables precise classification of materials.d97/ d97/ d75/d25=1.1～1.5。

（3) High classification efficiency: The strong vortex field and the fine powder extraction device enable efficient classification of fine powder, achieving high Newton efficiency.70～95。

（4) The high-speed, complete external classification flow field greatly reduces wear on the classification equipment. ◇ Equipped with a strong dispersion device, it can effectively disperse and classify agglomerated powders.

（5) Flammable, explosive, and easily oxidizable materials can be classified in a closed circuit using inert gas as the medium, with the inert gas being recycled. ◇ Multi-stage classification in series:Network-capable configuration1～5Grade Air Classifier,The material is divided into several particle size segments based on particle size range to produce products with narrow particle size distribution requirements.

（6) Fully enclosed negative pressure operation, no dust pollution.

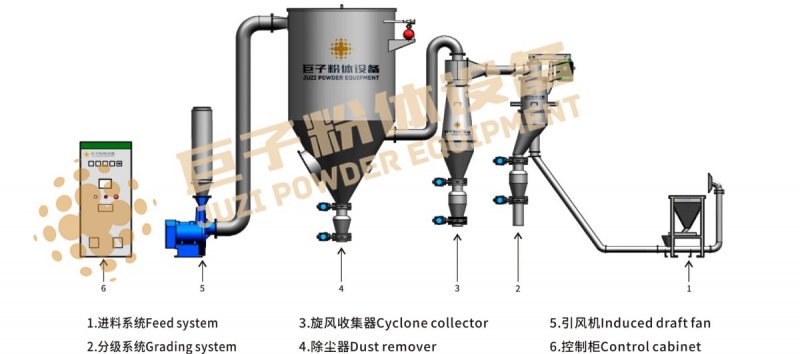

Technological process

Scope of Application

This machine can not only classify ordinary powders individually5～45µmUsing fine powder, it can be combined with various crushing equipment (such as jet mills, ball mills, Raymond mills, vibration mills, etc.) to separate fine powder.

The material is divided into several particle size segments based on particle size, which can replace wet abrasive classification.

Remove excessively fine or coarse particles from materials, effectively addressing the entrainment phenomenon. In particular, the core competitive advantage of more thorough fine powder extraction and good stability has been recognized by the industry.Widely recognized.

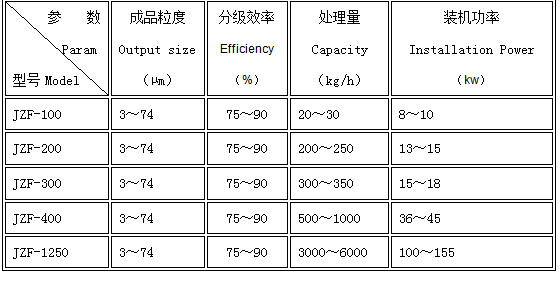

Main Technical ParametersNumber

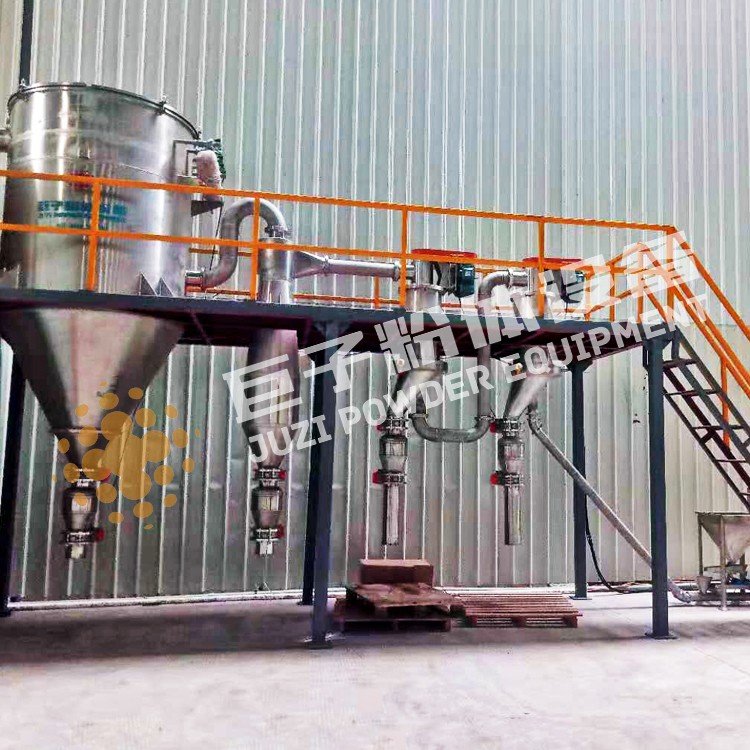

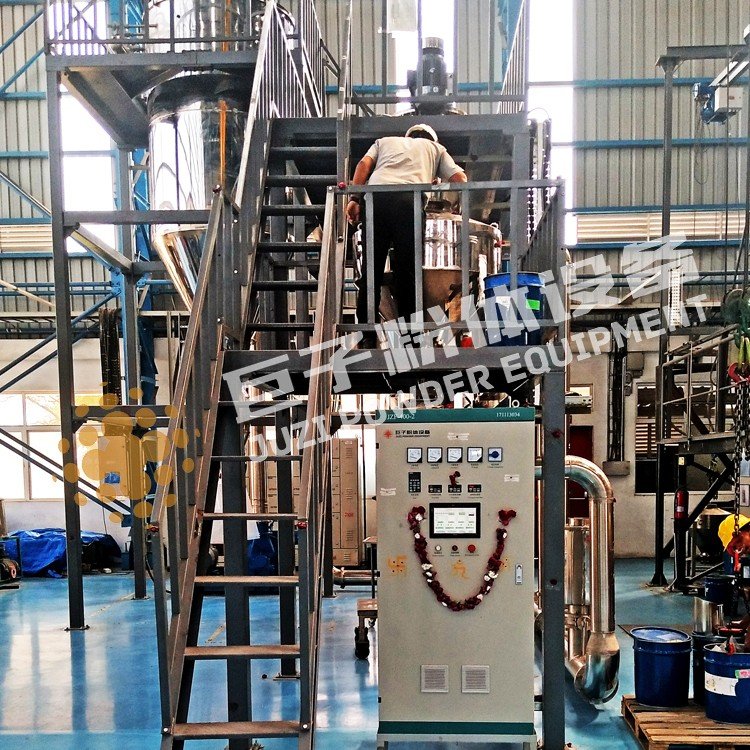

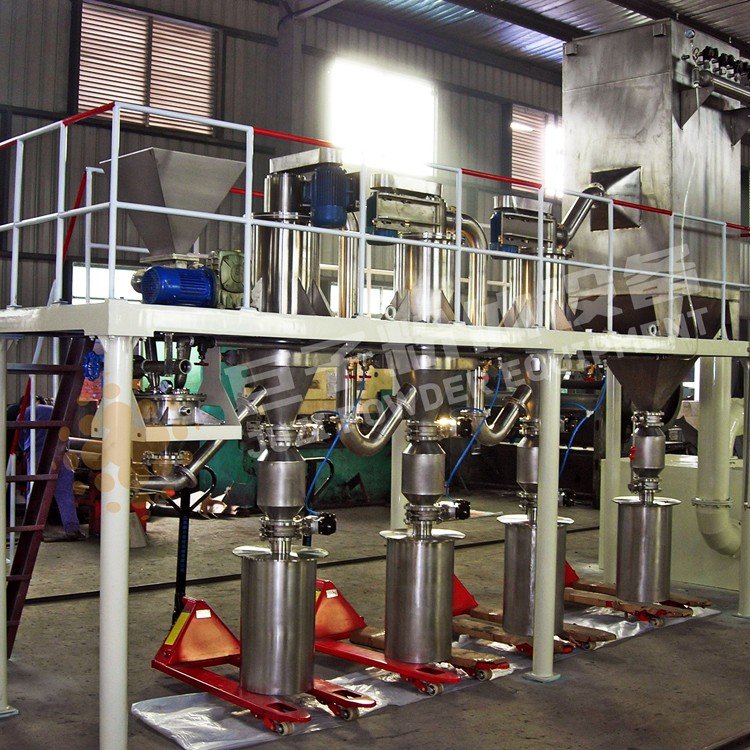

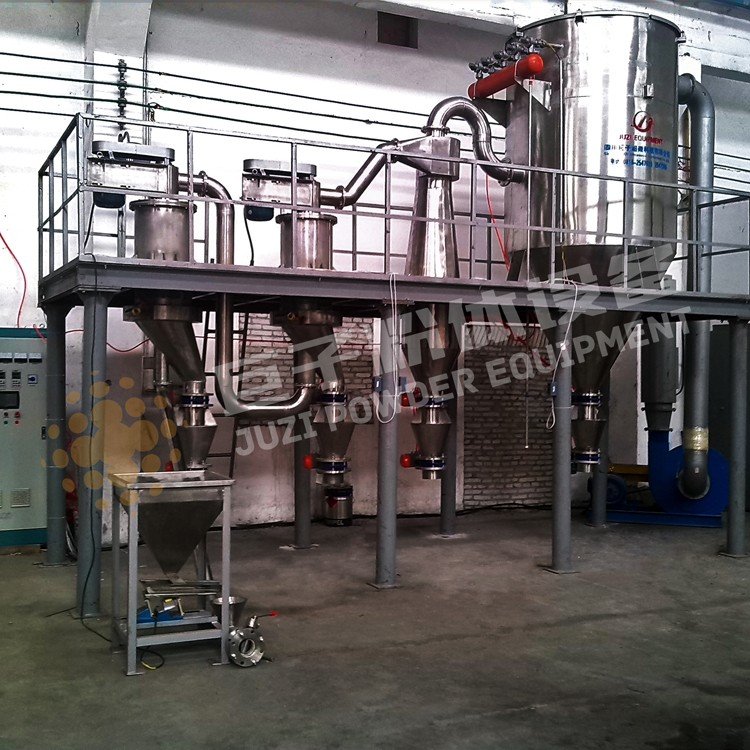

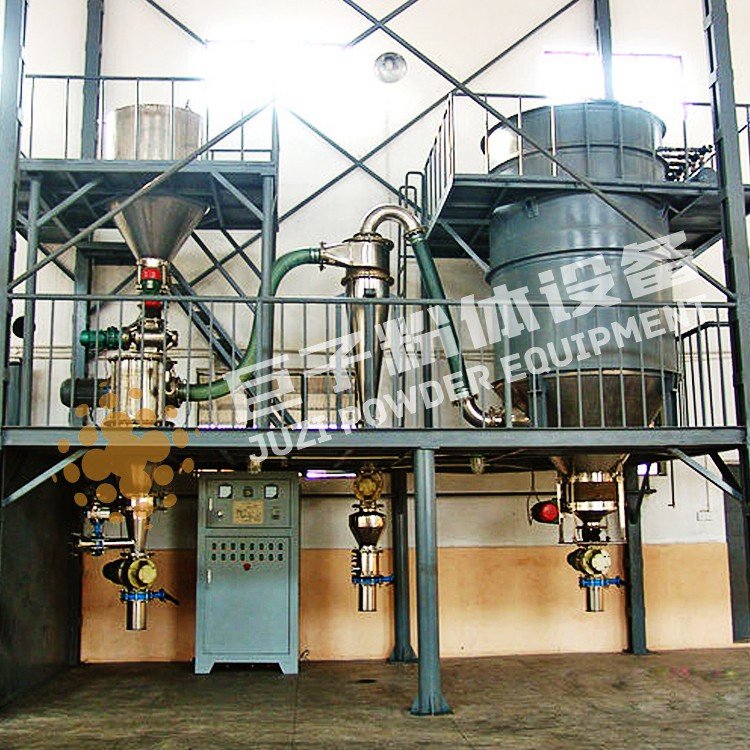

Equipment Display

Device Description

Customers need to provide their own: cleaning air pump and wiring/cables between the distribution room and the main unit, among other accessories.
