High-precision turbo air classifier is a dry-type air classifier.,It is a centrifugal classifier equipped with a flow field control device and a high-speed turbine rotor, featuring a wide classification range., High classification efficiency, high classification accuracy, precise cut size, and good stability.

**Equipment Selection**Air classification equipment-JZFSeries

Application model:JZF-100,200,300,400,1250type

Equipment Material1：Stainless steel304

Equipment Material2：Carbon steel

Equipment Material3：Ceramics

Application Areas:General

Typical materials:Dry Material Ultra-Fine Grinding

Equipment Features

1.Wide classification range: This machine can classify any organic and inorganic materials, with a classification particle size ofd97＝3～74um, granular particles that can be graded into spherical, flaky, and fibrous forms;It can also separate materials with significant differences in specific gravity.

2.High Classification Precision: A complete and stable classification flow field combined with reliable sealing enables precise classification of materials.d97/ d97/ d75/d25=1.1～1.5。

3.High Classification Efficiency: The strong vortex field and the fine powder extraction device enable efficient classification of fine powders, achieving high Newton efficiency.70～95。

4.The high-speed, complete external classification flow field greatly reduces wear on the classification equipment.

5.Equipped with a strong dispersion device, it can effectively disperse and classify agglomerated powders.

6.Flammable, explosive, and easily oxidized materials can be subjected to closed-circuit classification using inert gas as the medium, with the inert gas being recycled.

7.Multi-level cascading in series:Network configuration available1～5Grade Air Classifier,The material is divided into several particle size segments based on particle size range to produce products with narrow particle size distribution requirements.

8.Fully enclosed negative pressure operation, no dust pollution.

Scope of Application

1. This machine can not only classify ordinary powders individually5～45µmUsing fine powder, it can be combined with various crushing equipment (such as jet mills, ball mills, Raymond mills, vibration mills, etc.) to separate fine powder.

2. The material is divided into several particle size segments based on particle size, which can replace wet grinding classification.

3. Remove excessively fine or coarse particles from the materials, effectively addressing the entrainment phenomenon. In particular, the core competitive advantage of more thorough extraction of fine powders and excellent stability has been widely recognized in the industry.

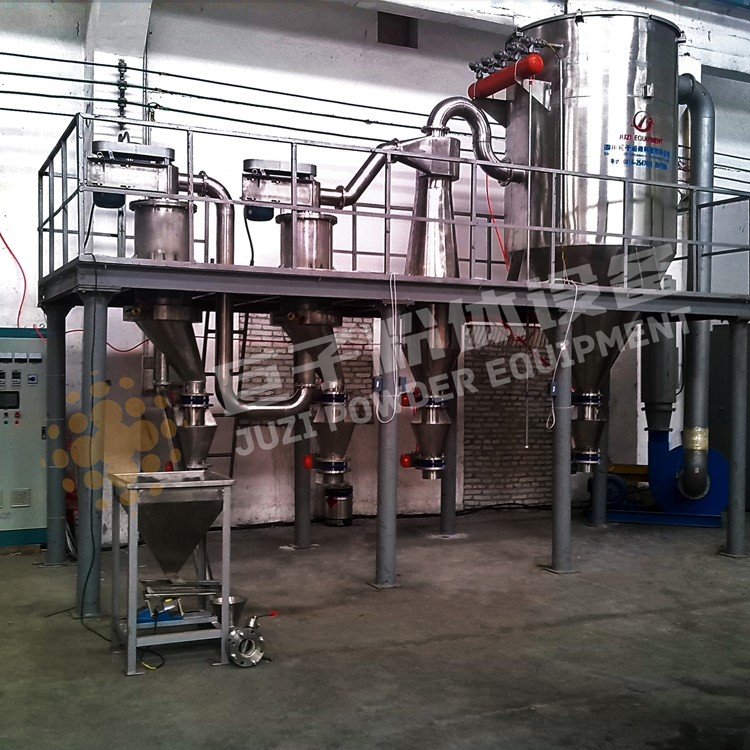

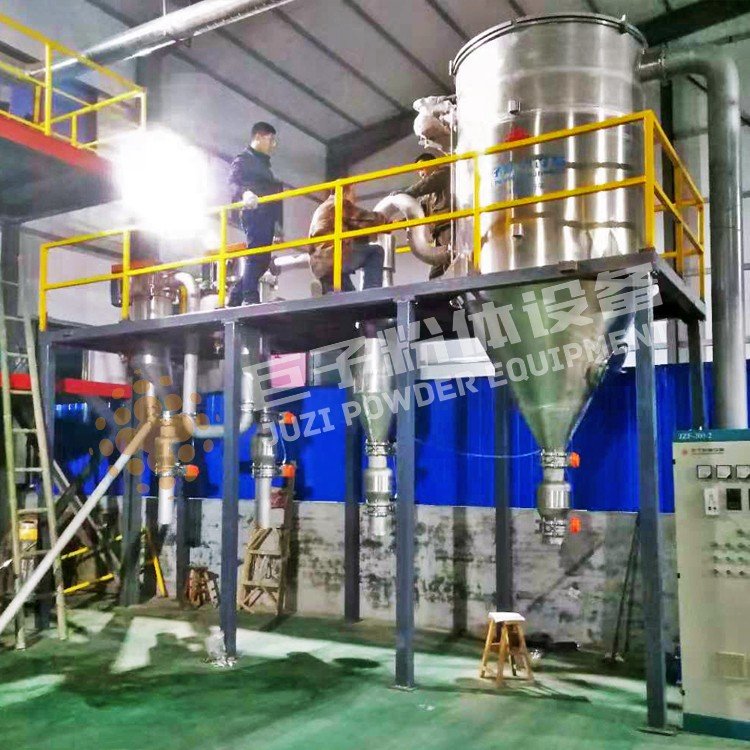

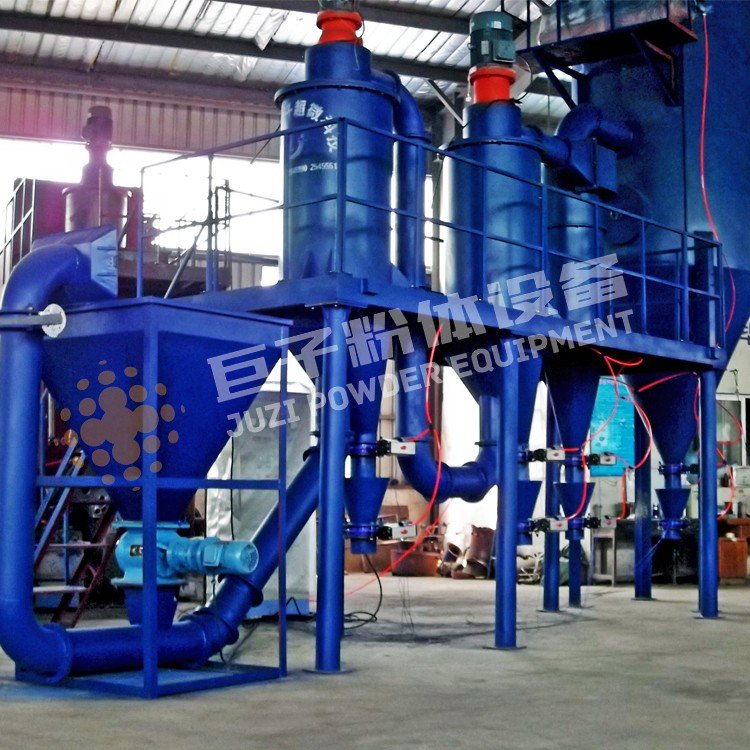

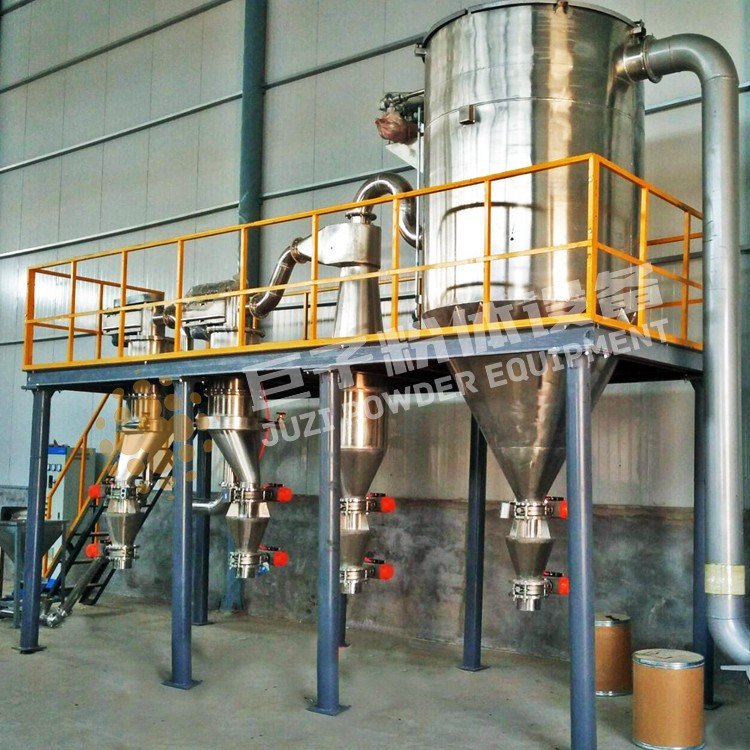

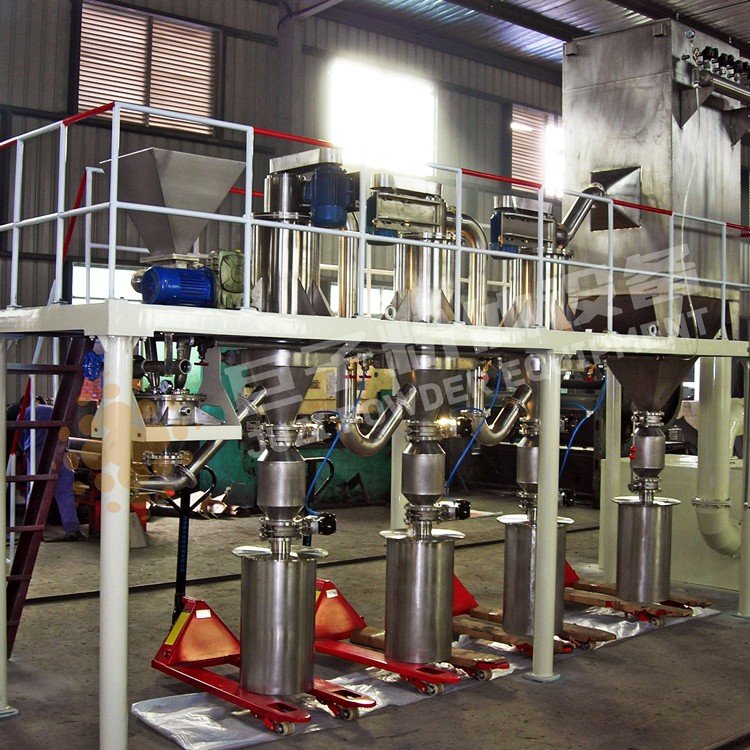

Equipment Display
