The graded impact mill utilizes hammers, blades, rods, and other components on a high-speed rotating rotor to impact the material being crushed. Through the intense impact between the material and the rotor, high-speed collisions among the rapidly flying material particles, and the shear grinding between the rotor and the stator or side walls, it achieves the purpose of ultra-fine crushing of the material.

Working principle

A graded impact mill utilizes hammers, blades, rods, or other components on a high-speed rotating rotor to impact the material being crushed. Through the intense impact between the material and the rotor, high-speed collisions among the rapidly flying material particles, and the shear grinding between the rotor and the stator or side walls, it achieves the purpose of ultra-fine crushing of the material.

Equipment Features

◇ Suitable for materials with a Mohs hardness of3.5The following is the ultrafine grinding process for soft materials.

◇ The particle size range is finer than that of ordinary mechanical mills. The high-speed mechanical impact crusher with a built-in high-efficiency turbo classifier enables qualified fine powder to be discharged immediately after crushing, preventing over-grinding. It can produce products with a steep particle size distribution curve, with product finenessd97=10～74umAdjustable within range.

◇The crushing chamber is equipped with an automatic slag discharge device, which can automatically remove hard-to-grind particles and impurities from the material.

◇ It has the function of breaking up and dispersing agglomerated materials.

◇ High-volume airflow means cooling during grinding, making it suitable for processing heat-sensitive materials without sedimentation issues.

◇ Fully enclosed negative pressure operation, no dust pollution.

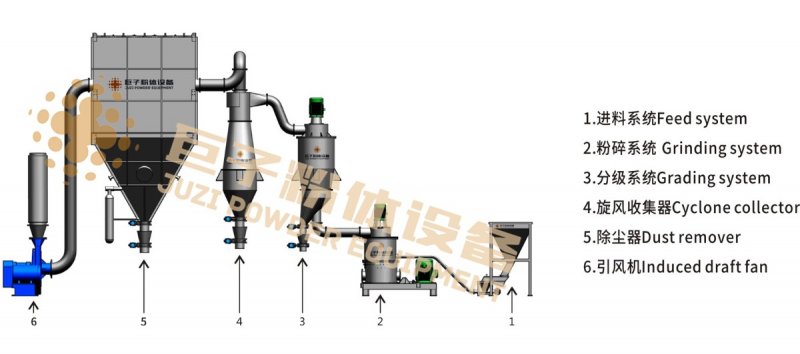

Technological process

Scope of Application

Non-metallic minerals
Typical materials include: Ultra-fine grinding of materials such as hard kaolin, talc, graphite, calcite, gypsum, diatomite, wollastonite, barite, pyrophyllite, and aluminum hydroxide, as well as ultra-fine grinding and dispersion of materials like nano-calcium carbonate and cerium oxide.
Heat-sensitive materials
Typical materials include:Lactose, wax, resin, fat, bone meal, plants, etc.
Ultra-fine processing of Chinese herbal medicines and raw materials
Typical materials include:Pollen, hawthorn, shiitake mushrooms, pearl powder, stomach medication, nimodipine, antibiotics, reishi mushroom, Chinese gall, fleeceflower root, andrographis, mint, houttuynia, fern root, kudzu root, isatis root, etc.

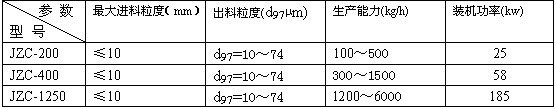

Main Technical Parameters

Device Description

Customers need to provide their own: dust cleaning air pump and wiring/cables between the distribution room and the main unit, among other accessories.

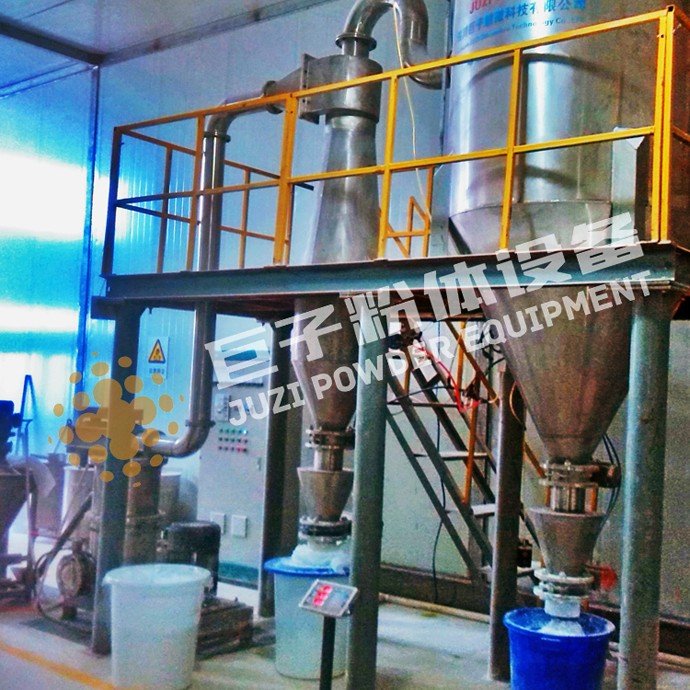

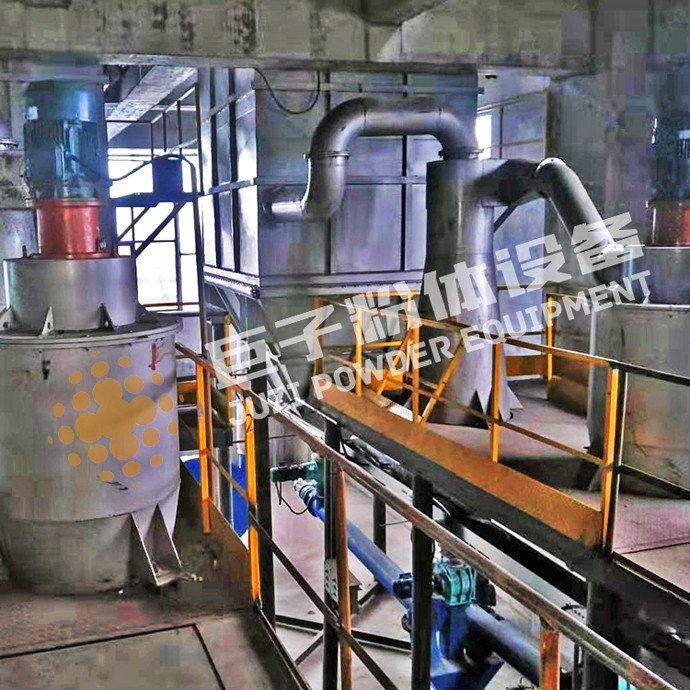

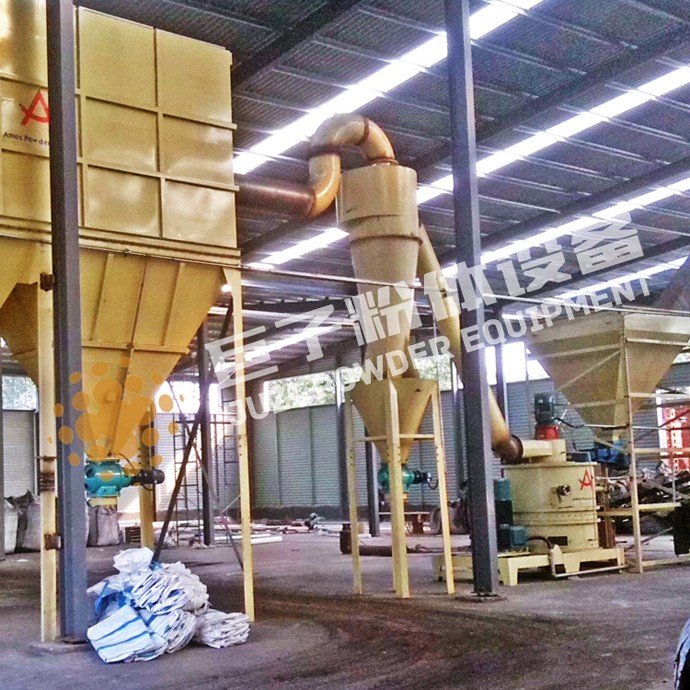

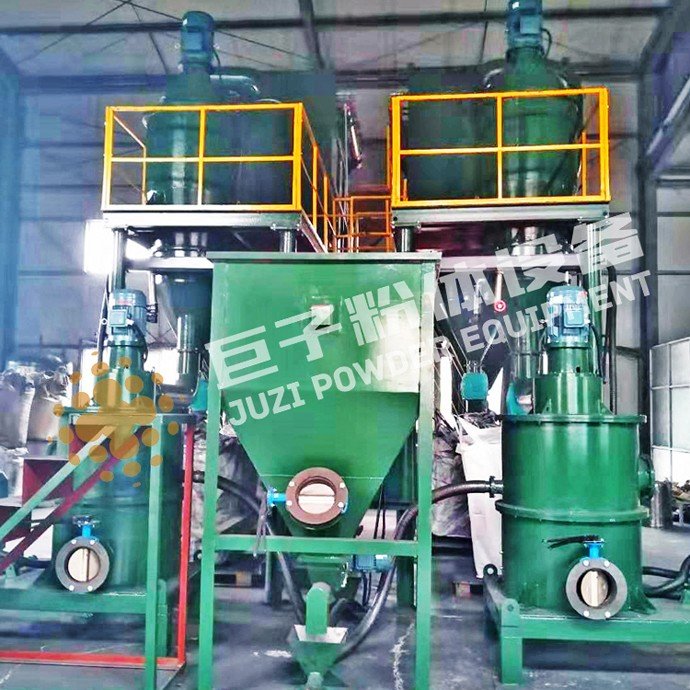

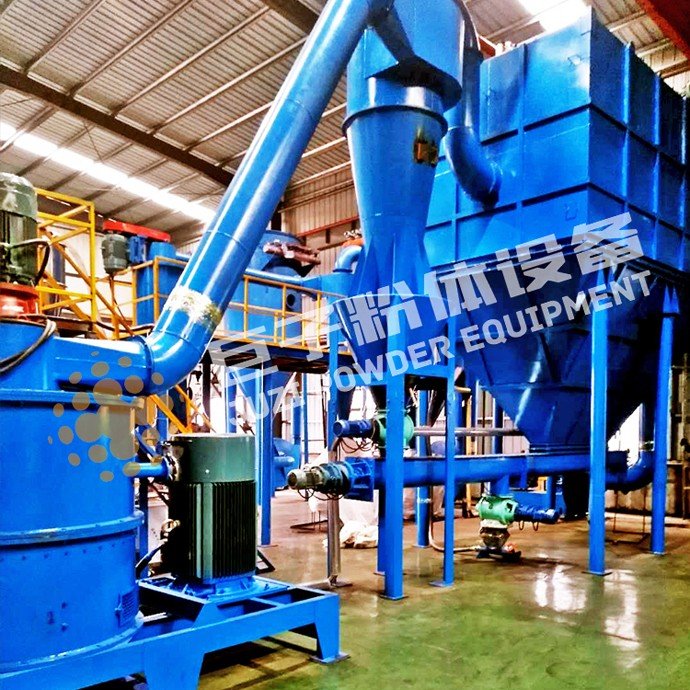

Equipment Display
