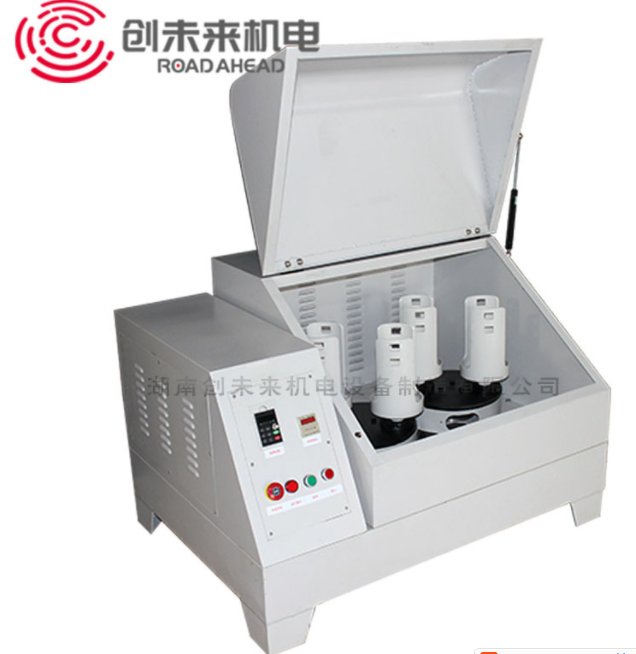

Dual-Planetary Ball Mill

价  格
35000.00
品牌:
创未来
型号:
PM-2(D)
Degree of crushing:
Ultra-fine grinding
Energy consumption per unit:
Subject to actual consumption.
Output:
Related to the bulk density of the material.
Installed Power (kW):
0.75KW
Product fineness:
100-2000 mesh
Feed particle size (mm):
Below 10MM
Working principle:
Media grinding
湖南创未来机电设备制造有限公司
店主:邓经理
地址:湖南省岳阳市平江县伍市镇华文路伍市工业园
  • 产品介绍

The dual-planet structure enables the large planetary disk to drive the movement of the small planetary disk, amplifying the orbital radius and the rotation speed of the grinding jar compared to ordinary planetary ball mills of the same specifications. The centrifugal force acting on the grinding balls increases exponentially, significantly enhancing the collision, shear, and friction forces between the balls, thereby improving grinding effectiveness and efficiency. Some materials can be ground to the nanoscale. The dual-planet ball mill is a typical high-efficiency, high-energy ball mill.
