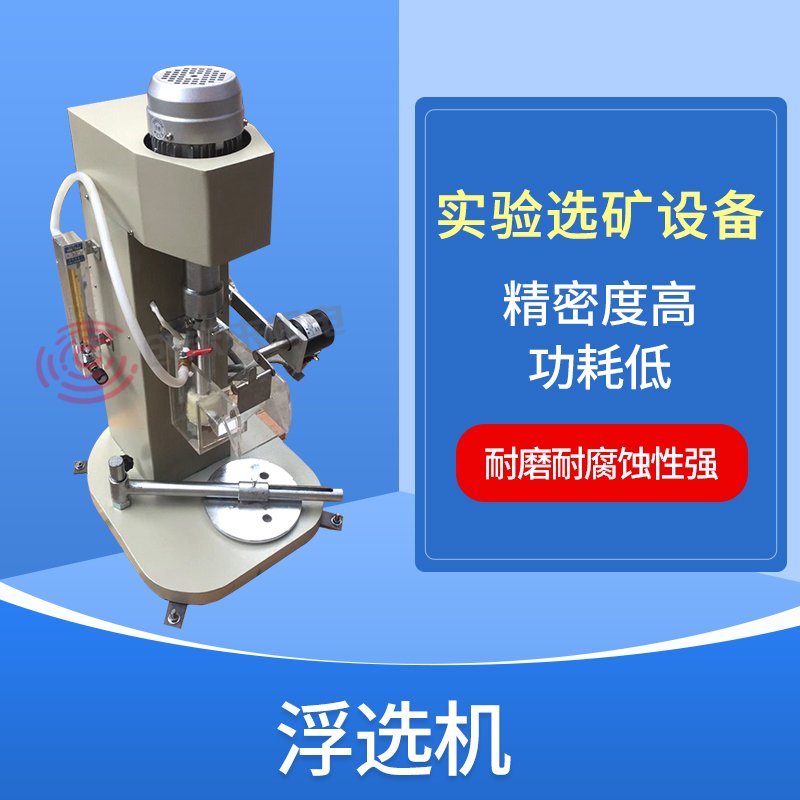

**Product Overview:**

The experimental flotation machine is mainly used for separating ferrous metals, non-ferrous metals, precious metals, chemical raw materials, and non-metallic minerals, as well as recovering useful minerals. The equipment has a large air intake and low power consumption. The impeller features backward-inclined upper and lower blades. The upper blades generate an upward slurry circulation, while the lower blades produce a downward slurry circulation. Each cell integrates the three functions of air intake, slurry suction, and flotation, forming an independent flotation circuit. The road, requiring no auxiliary equipment, is laid out horizontally., facilitating process changes. The slurry circulation is reasonable, minimizing coarse sand sedimentation to the greatest extent. Additionally, the equipment is equipped with an automatic slurry level control device for convenient adjustment.

Product Features:

The experimental flotation machine is primarily used for experiments involving the separation of useful minerals, ferrous metals, non-ferrous metals, precious metals, non-metallic minerals, and chemical raw materials. It is also utilized for experiments on finely disseminated gold, silver, copper, iron, lead, zinc, molybdenum, nickel, aluminum, and other metallic minerals.

Working Principle:

After the slurry and reagents are thoroughly mixed, they are fed into the flotation cell beneath the tank floor of this chamber. As the impeller rotates, a negative pressure is generated in the impeller cavity. The slurry at the bottom and inside the tank enters the mixing zone through the lower and upper suction inlets of the impeller, respectively, while air enters the mixing zone through the air guide sleeve, where the slurry, air, and reagents are mixed. Under the centrifugal force of the impeller, the mixture The mixed slurry enters the mineralization zone, where air forms bubbles that are broken down, making full contact with the slurry to create mineralized bubbles. Under the action of the stator and turbulence plate, these bubbles are evenly distributed across the cross-section of the tank and move upward into the separation zone. The enrichment forms a froth layer, which is discharged by the froth scraping mechanism to create concentrate froth.

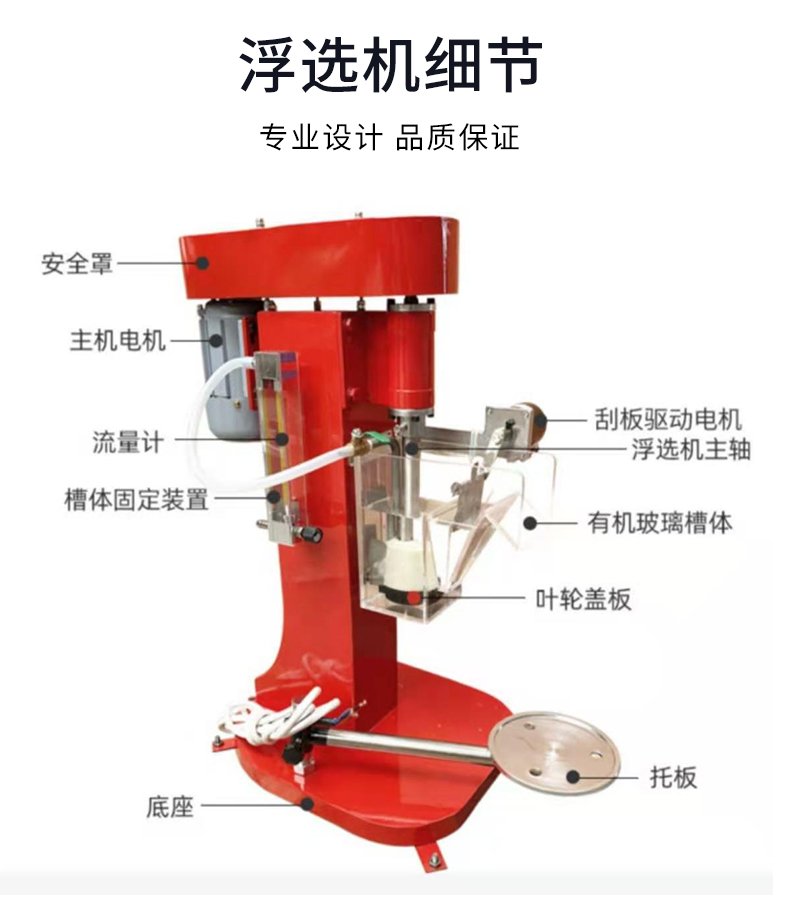

ExperimentAdvantages of Flotation Machine:

1. The main shaft is made of stainless steel, offering acid and corrosion resistance, while the impeller cover is made of medium-hard acid-resistant rubber.

2. The material of the flotation cell is acrylic glass.

3. The scraper belt is made of cowhide, which is not easily broken.

4. Fine workmanship, neat appearance, and even paint application.

Single-slot flotation machine: fine workmanship, low price, easy maintenance, and small footprint.

Variable Frequency Single-Slot Flotation Machine: Variable frequency speed regulation, stepless speed regulation of the impeller, and liquid crystal digital display.

Variable Frequency Temperature-Controlled Single-Slot Flotation Machine: Features such as variable frequency stepless speed regulation for the main shaft, temperature control, and LCD screen display.
