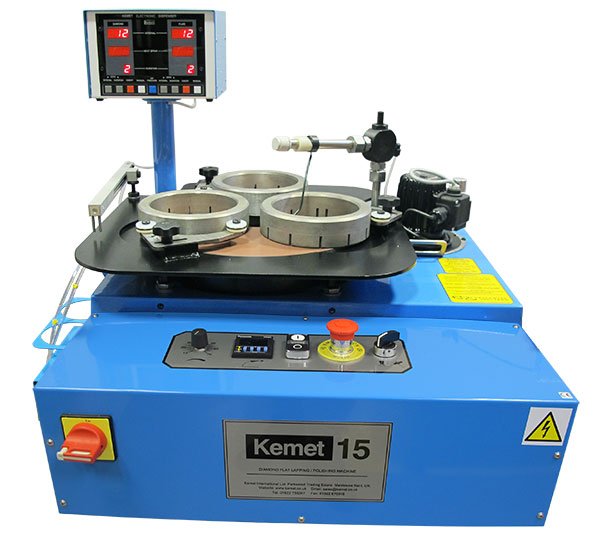

The Kemet 15 benchtop lapping machine features a rigid metal construction and is equipped with an adjustable-height worktable. It utilizes a digital process timer and a fully automatic diamond lapping fluid dispensing system.
Function
Capable of grinding workpieces with a diameter of up to 140 mm.
Suitable for desktop installation
Producing high-precision optical flat surfaces
Reduce Grinding Costs - The fully controllable Kemet Electronic Dosing System accurately dispenses diamond abrasives onto the grinding disc.
Reduce waste—only a small amount of diamond abrasive and non-toxic lubricating fluid are needed.
The built-in grinding system is used for dressing the Kemet disc.
The electrical system complies with the EN 60 204 standard.
Easy to adapt to special grinding applications.
Mobile
| Outer diameter of the grinding disc | 381 mm | |
|---|---|---|
| The speed of research and analysis | 70 rpm | |
| Number of trimming adjustment rings | 3 | |
| Trim the inner diameter of the adjusting ring. | 140 mm | |
| Load per trimming adjustment ring | 39 kg | |
| Height of the open-type machine | 670 millimeters | |
| Cylinder-pressurized machine height | N/A | |
| Workbench height | 310 mm | |
| Machine depth | 660 millimeters | |
| Machine width | 760 millimeters | |
| Standard Power Supply | 220V - Single-phase - 50Hz, or 380V or 415V 3-phase - 50Hz | |
| Main drive motor | 0.37 kilowatts | |
| Abrasive pump motor | 0.18 kilowatts | |
| Approximate weight | Open-ended | 136 kg |
| Cylinder Pressurization Type | N/A | |
| Recommended Accessories | Code |
|---|---|
| Cast Iron Dressing Adjustment Ring - Solid Set of 3 | 360204 |
| Cast iron dressing adjustment ring, serrated, set of 3 | 360203 |
| Zytel Roller Bearing Assembly - Set of 6 | 360212 |
| Zytel bearing O-rings. - Set of 6 | 360270 |
| Flatness Measuring Instrument | 361304 |
| Recommended consumables. | Code |
|---|---|
| Cast Iron Serrated Grinding Disc (Pre-Grinding) | 362400 |
| Cast Iron Non-Toothed Grinding Disc (Pre-Grinding) | 362401 |
| Kermit copper grinding disc | 351102 |
| Kermit Copper SP2 Grinding Disc | 351159 |
| Kermit iron grinding disc | 351002 |
| Kemite PR3 Grinding Disc | 351340 |
| Kermit tin grinding disc | 351305 |
| Kermit XL Grinding Disc | 351356 |
| Kermit XP Grinding Disc | 351202 |
