Product Introduction

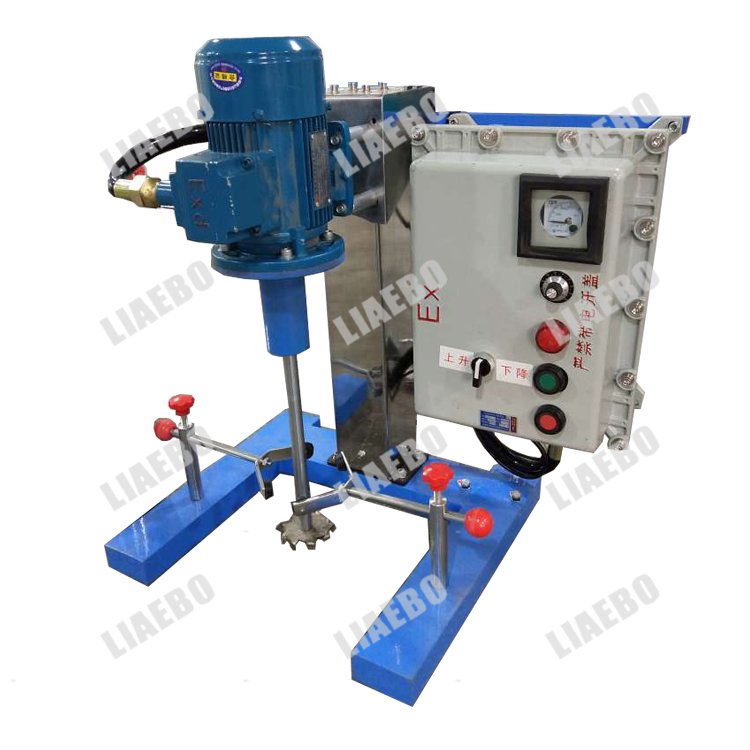

This machine is a laboratory-scale disperser, primarily used in the laboratories of industrial sectors and research institutions for pigments, dyes, color pastes, inks, paints, ceramic bodies and glazes, magnetic recording materials, and more. It is widely applied in scientific experiments, production simulations, and new product development.

Product Features

1. Variable frequency speed regulation, digital display, easy operation, and intuitive collection of experimental data.

2. The output end employs a multi-stage force amplification mechanism, providing high torque output during low-speed stirring operation with a constant rotational speed.
3. Low noise, suitable for long hours of operation.
4. Configure the toothed disc dispersing head, PTFE grinding head

5. The working head is easy to replace and clean.

1. This machine adopts a dual-axis constant-force lifting system, making lifting and lowering convenient.
2. It adopts a series-excited commutator motor and utilizes an intelligent motor speed control instrument to achieve stepless speed regulation of the motor. By applying digital PID technology, it ensures high control precision, with the rotational speed of the shaft directly displayed in digital form.
3. The dispersing impeller and sanding disc are directly connected to the rotating shaft via threads.
4. The left and right clamps secure the material barrel. The barrel body adopts a jacketed structure, allowing the passage of cooling water, and is made of stainless steel.

Product Details

Motor Power: 550W

Motor Type: Precision Micro-Special Motor

Voltage: 220V; 50Hz

Working head configuration: one Φ50 and one Φ80 dispersion disc each.

Speed range: 0-3000rpm Digital speed display Variable frequency speed regulation

Processing Capacity: 0.2-10L, using water as the medium

Material in contact: SS304

Lifting method: Electric lifting, fully explosion-proof, equipped with a counterweight, flexible and convenient lifting.

Equipment weight: 30Kg

Device dimensions: 450×450×860mm

Packaging: Standard packaging (wooden case packaging)
