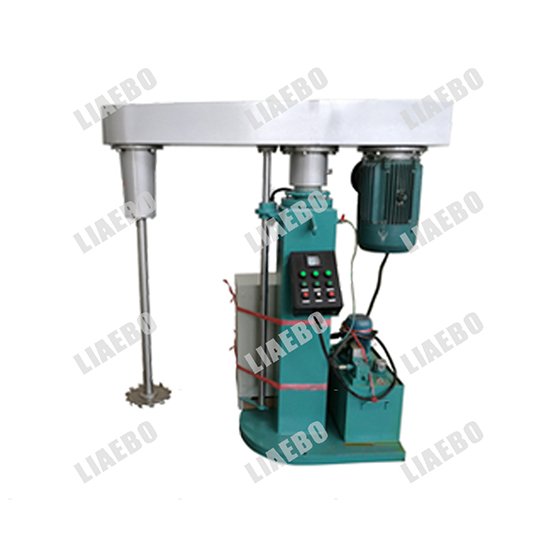

Product Image

Product Overview

The disperser is a new type of high-efficiency mixing equipment designed for crushing, dispersing, emulsifying, and mixing liquid raw materials of different viscosities. It operates through the high-speed rotation of the serrated edges on the dispersing disc, applying strong and rapid shearing, impact, and turbulence to the materials.

Intense shearing, impact, crushing, and dispersion achieve rapid mixing, dissolving, dispersing, and refining functions. The disperser is widely used as an efficient equipment for stirring, dispersing, and dissolving liquids and solids, and is extensively applied in coatings.

Materials, inks, dyes, inks, color pastes, pharmaceuticals, cosmetics, and other chemical products. You can specify the required processing capacity, equipment type, size requirements, or the properties of the materials to be processed. Chiller's sales

SellThe engineer will provide a solution that meets your satisfaction.

Hydraulic lifting high-speed disperser, suitable for pre-dispersion and uniform mixing in industrial production. The hydraulic lifting structure is lightweight, compact, with low motion inertia, fast response speed, and convenient operation and control; equipped with a frequency converter, achieving

Now, it enables a wide range of stepless speed regulation and automatically provides overload protection. The hydraulic system uses hydraulic oil as the working medium, allowing self-lubrication of relative moving surfaces, resulting in a long service life. It facilitates linear motion and automation of machinery.

Stable and accurate, capable of frequent lifting and lowering; the fully enclosed hydraulic system completely resolves the issue of hydraulic oil leakage. Sealed and explosion-proof dispersers can be customized according to customer requirements.

This equipment is designed for dissolving, dispersing, and uniformly mixing products of varying viscosities. During stirring and dispersion, minimal air entrapment occurs, allowing materials to be quickly dispersed and dissolved. Particles become finer, mixing is uniform with no dead corners, and cleaning is convenient.

Wide processing capacity range, variable frequency speed regulation, digital speed display, stable operation, low noise, and suitable for long-term continuous use. Widely used as an efficient equipment for stirring, dispersing, and dissolving liquids and solids, including coatings.

Industries such as ink, dye, ink, color paste, pharmaceuticals, and cosmetics.

Product Features

1. Hydraulic lifting, stable and reliable;
2. Closed design reduces solvent evaporation, lowers material loss, and is economical and environmentally friendly.
3. Automatic control, with temperature and pressure automatic feedback systems to ensure safety;
4. Elegant appearance, dignified and generous, highly visually appealing.
5. The motor can be selected with different explosion-proof grades according to customer requirements.
6. Equipped with a pull cylinder with brake swivel casters for easy movement.

The serrated circular dispersion disc of the high-speed disperser performs high-speed dispersion within the container, completing the processes of solid-liquid dispersion, wetting, deagglomeration, and stabilization.

1. Make the slurry form a rolling annular flow, generating strong vortices, with particles on the slurry surface descending in a spiral pattern to the bottom of the vortex.

2. A turbulent zone forms 2.5-5mm from the edge of the dispersion disc, where the slurry and particles are subjected to intense shear and impact.

3. The outer region forms two upper and lower streams, allowing the slurry to be fully circulated and agitated.

4. Below the dispersion disc of the disperser, a laminar flow state is formed, where slurry layers at different flow velocities diffuse into each other, achieving a dispersing effect.

5. This machine is suitable for industrial-grade production.

6. The lifting and lowering of working components are achieved through a hydraulic system. The sealed hydraulic system prevents oil leakage, making it environmentally friendly and safe.

7. Stepless variable frequency speed regulation, with speed selectable according to customer material requirements.

8. Customize explosion-proof models according to customer requirements or on-site environmental conditions.

9. Installation Method: Floor-mounted installation

Product Details

Voltage: 380V/50Hz

Material: SUS304 Stainless Steel, SUS316L Stainless Steel

Clamping method: Belt clamping / Manual clamping / Pneumatic clamping

Agitator shaft: single shaft, double shaft

**Cylinder Pulling: Non-standard Customization**

Lid for Drum: Simple Lid, Fixed Lid, Liftable Lid

Sealing: Pressurization or vacuum (customizable according to customer requirements)

Environmental Requirements: Explosion-proof, Non-explosion-proof
