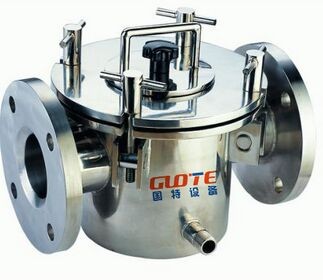

RCYA In-Line Slurry Iron Remover

The RCYA pipeline slurry iron remover is a high-performance magnetic separation device widely used in industries such as papermaking, ceramics, chemical engineering, food, and glass. It is an **iron removal equipment** for purifying fluid materials and ensuring the safe operation of subsequent equipment.

【Product Model】: RCYA
【Application Fields】:It can be widely used in industries such as papermaking, ceramics, chemicals, food, and glass.
【Applicable Materials】:Slurry

High magnetic field strength, effectively adsorbs magnetic materials.This equipment uses a magnetic system made from third-generation rare earth materials with high remanence and high coercivity, thereby generating a high magnetic field and strong suction force.

Simple structure, customizable production.The overall casing of this equipment is made of stainless steel, with a reasonable and compact structural design for easy installation. It can be customized according to the user's on-site dimensions, ensuring overall reliability and durability.

The magnetic system is easy to clean, reliable, and durable.Our company has specially designed a dual stainless steel structure to thoroughly address the previous challenges of inconvenient and incomplete cleaning of the magnetic system.

Working principle

This iron remover is installed in series on the material conveying pipeline. When the material flows through the iron remover, ferromagnetic substances are adsorbed onto the stainless steel pipe wall of the device, achieving the separation of magnetic impurities from slurry or powdered materials. When magnetic substances need to be removed within a set time, loosen the bolts securing the fixed slag removal door, pull out the magnetic rod for cleaning, reinsert it after cleaning, align the flanges, insert the bolts, and tighten them.

Technical Parameters

The above technical parameters take quartz as an example.
