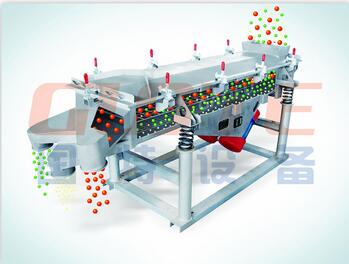

Product Name:GDS Quartz Sand Vibrating Screen

Equipment Introduction: A device for screening and grading powdered and granular materials, specifically manufactured using special materials and processes for the quartz sand industry.

Highlight advantages:

1. Low energy consumption, high output, simple structure, and easy maintenance.

2. Fully enclosed structure, no dust leakage, fully compliant with national environmental protection requirements.

3. Automatic nesting is more suitable for assembly line operations.

4. The equipment is made of special materials and crafted with unique processes, making it particularly suitable for the quartz sand industry.

Working Principle Introduction: The linear vibrating screen is driven by dual vibration motors.When two vibrating motors rotate synchronously in opposite directions, the exciting forces generated by their eccentric blocks cancel each other out in the direction parallel to the motor axes, and combine into a resultant force in the direction perpendicular to the motor axes. Therefore, the motion trajectory of the screening machine is a straight line. The two motor axes are inclined at an angle relative to the screen surface. Under the combined action of the exciting force and the material's own gravity, the material is thrown up on the screen surface and moves forward in a jumping, linear motion, thereby achieving the purpose of screening and classifying the material.
