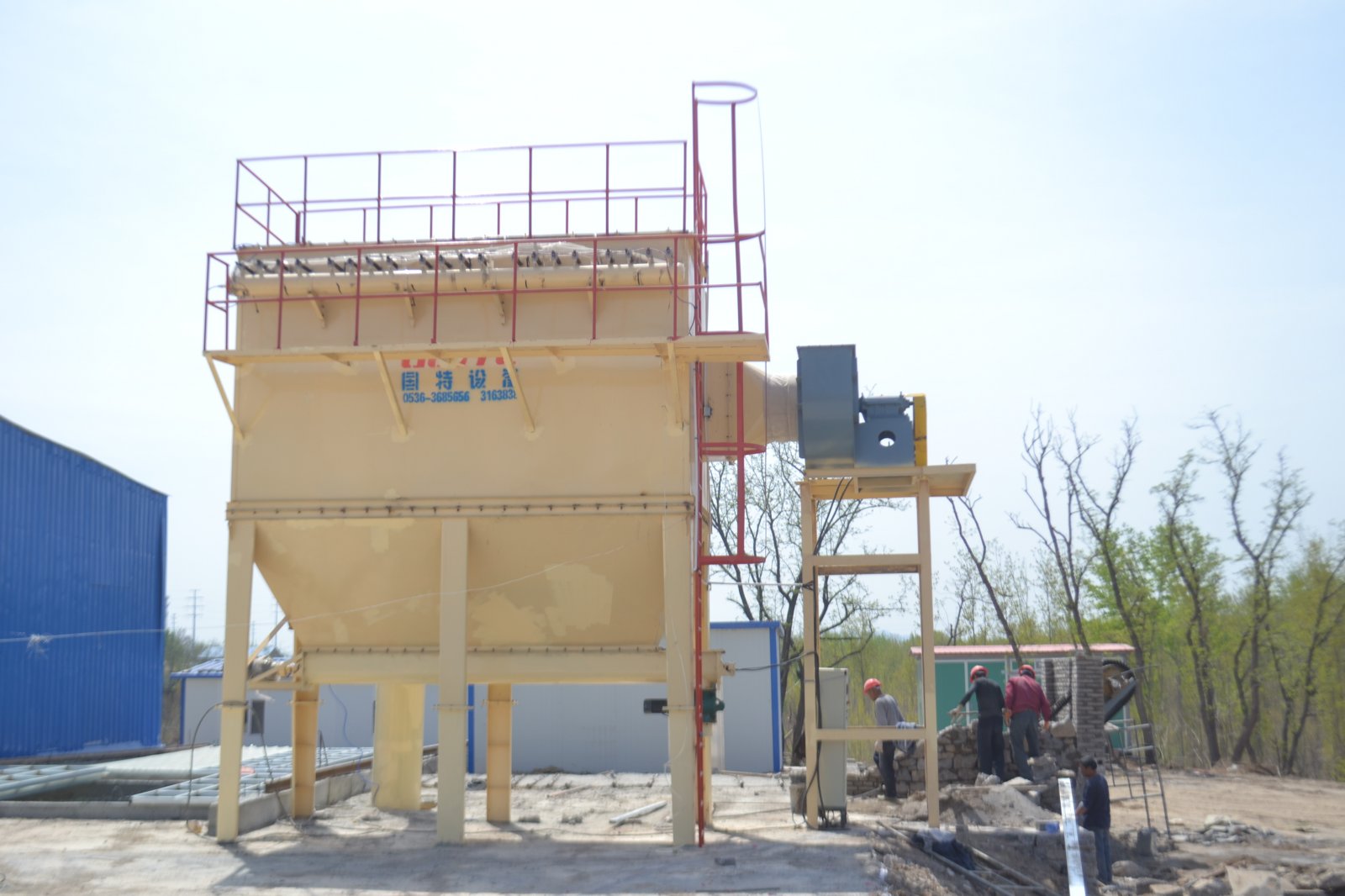

Product Name:MDC Pulse Dust Collector

Dust removal efficiency:99%

Air volume:540-21600m³/h

Application Areas: This product is widely applicable to industries such as cement, mineral processing, electronics, chemicals, food processing, metallurgy, casting, carbon materials, mechanical processing, and wood building materials.

Materials: (Once configured, corresponding small images can be added. Refer to the red star for guidance; we will supplement them later ourselves.)

Device Introduction: The product is widely used in building overview, chemistry, metallurgy, non-metallic mines, pharmaceuticals, food, abrasive materials, plastics, and some new materials.This is an ideal dust collection device for industrial and environmental protection applications.

Highlighted Advantages:

1. The airflow combination is reasonable, utilizing forward-flow air intake and forward-flow filtration, allowing dust to be filtered during the filtration process.

2. It also has a coagulation and sedimentation effect, reducing the load on the filter bag and the pulse frequency.

3. The filter bag mouth is sealed with an elastic expansion ring, ensuring good tightness and easy installation and removal. The frame is made using resistance welding.

4. The outer surface is smooth and free of weld marks, eliminating the wear between the filter bag and the frame, resulting in a longer service life for the filter bag.

5. Select filter materials with different performance and specifications based on the working conditions. The operating resistance is stable, energy consumption is low, and the dust removal efficiency exceeds99.9%.

Working Principle Introduction: Dust-laden gas enters the middle and lower chamber through the air inlet of the dust collector, where dust and gas are separated via filtration through filter bags. Dust is adsorbed onto the surface of the filter bags, while clean air passes through the bags and is discharged from the air outlet. Over time, the dust accumulated on the surface of the filter bags increases. According to the program set by the pulse jet controller, the pulse jet valves are triggered in sequence. Compressed air from the air reservoir is instantly ejected through the holes of the blowpipe, injected via Venturi tubes into the corresponding filter bags. The dust adsorbed on the surface of the filter bags is then dislodged, falling into the ash hopper, and is discharged through the ash discharge valve or directly into the storage bin.
