The GJT-2F series metal detector utilizes dedicated chip digital circuit technology and is suitable for industries with belt conveying and processing systems for both magnetic and non-magnetic bulk materials. It allows for digital adjustment of ore grade, belt speed, and ore type, features self-diagnostic capabilities, and is easy to adjust and maintain. With intelligent sensitivity adjustment, it effectively detects and removes metal contaminants, improving product quality and ensuring the safe operation of crushing equipment.

Main Features:
Quantification of sensitivity debugging;
High-sensitivity design enables detection of oversized metals; audible and visual alarm.
Detection scope: metals such as iron, aluminum, stainless steel, alloys, etc.
Control output: one pair of normally open relay contacts and one pair of normally closed relay contacts.
Timing function: After the relay is energized, it will be released with a delay, and the delay time is 1-10 seconds.

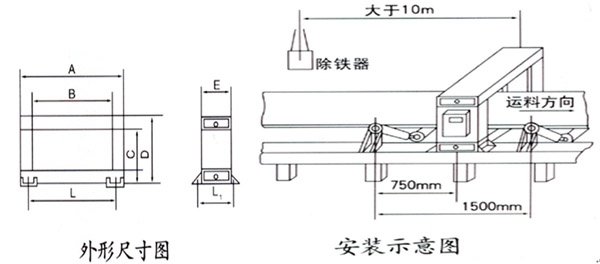

Installation Notes:
1. When the amplitude of the belt conveyor frame is less than 0.5mm, it can be directly installed on the belt conveyor frame. If the amplitude exceeds 0.5mm, a separate fixed support frame should be provided for installation.
2. The input voltage of this machine is AC 220V±10V. If the power supply voltage exceeds this range, a voltage stabilizer should be used. If the above two parameters exceed the specified values, the metal detector may malfunction, affecting the normal operation of the equipment.

Main Technical Parameters:
