Food-grade specialized mixerIt is used for mixing feed, food, pesticides, dyes, pigments, plastics, resins, chemical raw materials, seasonings, cosmetics, pharmaceuticals, and various powder additives, and can also be applied to the mixing of powders with the addition of trace amounts of liquids.

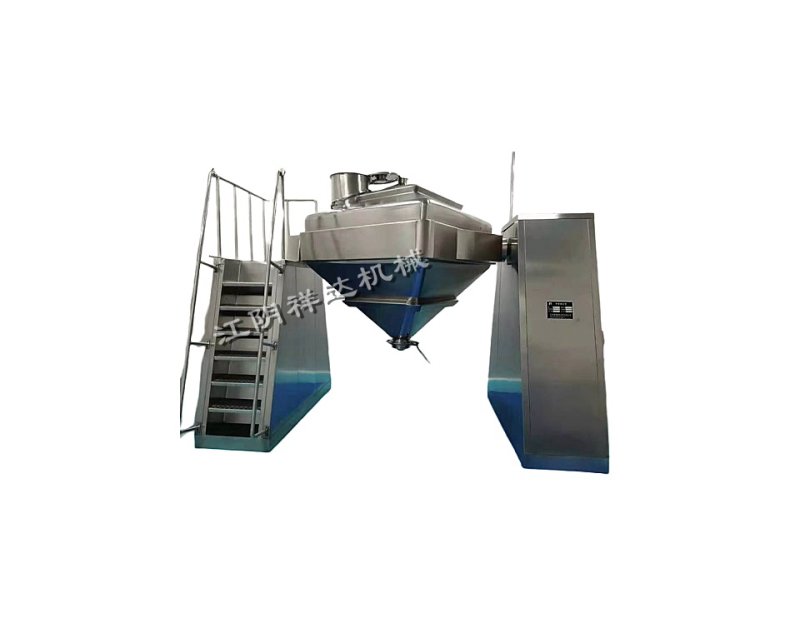

Food-grade specialized mixerPrinciple and Features:The mixer is suitable for blending materials with different specific gravities, such as crushed materials or those with other additives. It utilizes internal and external rotating mixing for high uniformity. The mixing drum can be tilted at any angle to facilitate discharge and cleaning. It is equipped with an automatic timer, allowing for a preset stop time ranging from 0 to 60 minutes. A stainless steel butterfly valve is used for material discharge, ensuring no dust leakage or dispersion. The mixing process employs the principle of gravity diffusion, minimizing material compression and avoiding shear crushing. The drum is made of high-quality stainless steel, with both inner and outer surfaces polished to prevent contamination during mixing. It features low power consumption, easy cleaning, and simple operation.
Food-grade specialized mixer
Technical Parameters:
| Model FH | Cylinder volume L | **Feed volume** (or **Charging volume**) L | Mixed time min | Hybrid motor kw | Stirring motorkw | Cylinder rotation speedrpm | Stirring speedrpm | Overall Dimensionsmm(long×Wide×High) |
50type | 50 | 25 | 5-10 | 1.1 | 0.75 | 20 | 60 | 1500×450×1200 |
100type | 100 | 50 | 5-10 | 1.5 | 1.1 | 20 | 60 | 1550×550×1350 |
200type | 200 | 100 | 5-10 | 2.2 | 1.1 | 20 | 60 | 1800×700×1500 |
300type | 300 | 150 | 5-10 | 2.2 | 1.1 | 20 | 60 | 2100×760×1760 |
500type | 500 | 250 | 5-10 | 3 | 2.2 | 20 | 60 | 2320×950×1920 |
1000type | 1000 | 500 | 5-10 | 5.5 | 2.2 | 10 | 40 | 2450×1050×2500 |
1500type | 1500 | 750 | 5-10 | 7.5 | 4 | 10 | 40 | 2900×1300×2700 |
2000type | 2000 | 1000 | 5-10 | 7.5 | 4 | 8 | 30 | 3000×1400×3100 |
2500type | 2500 | 1250 | 5-12 | 11 | 5.5 | 6 | 20 | 3600×1400×3200 |
3000type | 3000 | 1500 | 5-12 | 11 | 5.5 | 6 | 20 | 4000×1500×3500 |
4000type | 4000 | 2000 | 5-12 | 15 | 5.5 | 6 | 20 | 4800×1300×3800 |
5000type | 5000 | 2500 | 5-15 | 15 | 7.5 | 5 | 20 | 5400×1300×4000 |
6000type | 6000 | 3000 | 5-15 | 17.5 | 7.5 | 5 | 20 | 5650×1300×4380 |
