【Brief Introduction】

Trough mixer is suitable for use in industries such as food, pharmaceuticals, pesticides, zinc oxide, detergents, veterinary drugs, compound fertilizers, feed, petroleum, metallurgy and mining, building materials, coatings, dyes, pigments, additives, calcium carbonate, biotechnology, ceramics, chemicals, flavors and fragrances, chicken essence, seasonings, tea, grains, starch, plant fibers, milk powder, cocoa powder, flour, coffee, glucose, and others.

【Detailed Explanation】:

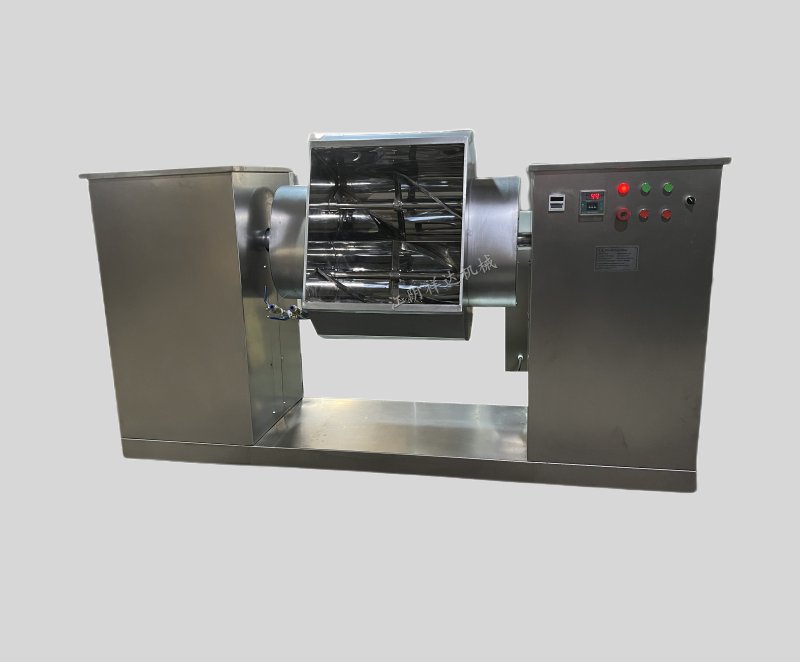

Trough MixerThis reducer is the main transmission structure of the trough mixer, located on the right side of the machine. During operation, the motor installed inside the machine base drives the worm and worm gear through a V-belt, reducing the speed at a ratio of 1:40 to drive the mixer. The worm gear shaft is hollow and equipped with a fixed key, allowing the mixing paddle to be freely installed and removed. Two ring screws are installed on top of the reducer for assembly, disassembly, and installation purposes. A screw on the end cover is used to position the high-speed mixing paddle. The pepper mixing blender has been adjusted at the factory and generally does not require further adjustment during use. The pepper mixing blender features a U-shaped body made of stainless steel, with a mixing paddle installed inside. It is horizontally positioned between the mixing reducer and the discharge mechanism. 3. Discharge Reducer The discharge reducer controls the positioning angle of the mixing trough. It is located on the left side of the machine. During operation, the motor installed inside the machine base drives the worm and worm gear through a V-belt, causing the mixing trough to rotate within a certain angle range, allowing the mixed materials to be discharged at once.

Trough MixerAs an integrated structure, the electric motor is installed on movable plates on both sides inside the base. The vertical position of the motor can be adjusted using screws, allowing the V-belt to achieve proper tension and maintain driving force.
