Product Information
Primary Use:

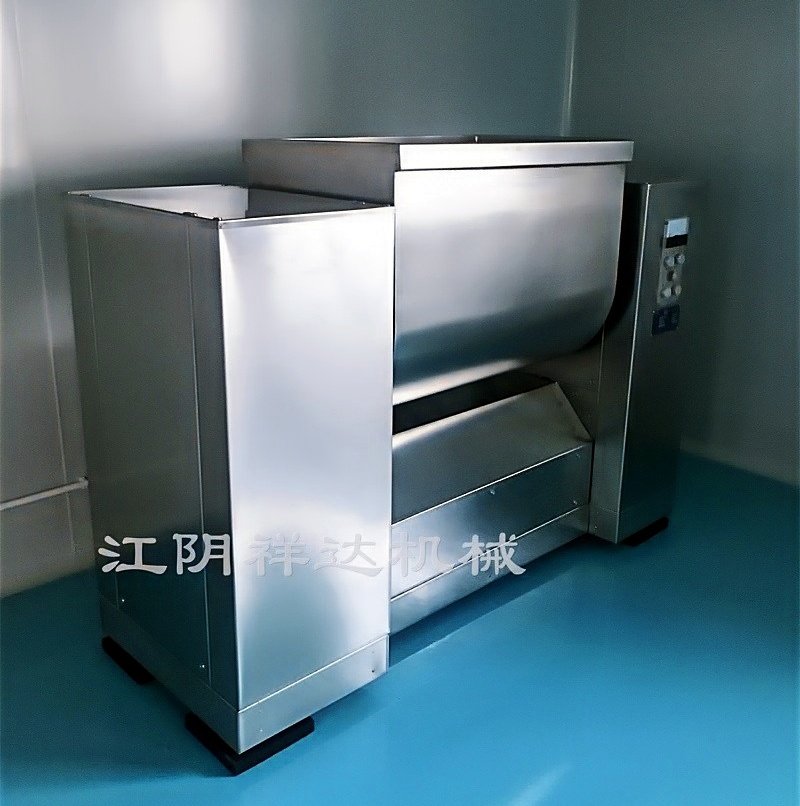

This machine is a fully stainless steel horizontal trough mixer, used for mixing in the pharmaceutical, chemical, and food industries.Powdered or pasty materials。
Working Principle:
This machine operates through mechanical transmission, enabling...S-type stirring paddleRotateThe material is pushed to reciprocate and turn over, achieving uniform mixing. During operation, electrical control is adopted, allowing forSet the mixing time.When the time comes, it will automatically stop and electrically discharge the material, thereby improving the mixing quality of each batch and achieving a high degree of uniformity in the mixture.
Technical Parameters:
| Model | CH-50 | CH-100 | CH-150 | CH-200 | CH-300 | CH-400 | CH-500 |
| Blade shape | S-type single paddle | S-type single paddle | S-type single paddle | S-type single paddle | S-type single paddle | S-type single paddle | S-type single paddle |
| Working volume L | 50 | 100 | 150 | 200 | 300 | 400 | 500 |
| Stirring paddle speed | 24 | 24 | 24 | 24 | 24 | 24 | 24 |
| Rotation speed r/min | 360 | 360 | 360 | 360 | 360 | 360 | 360 |
| External dimensions (mm) | 1100×450×900 | 1300×500×1000 | 1480×600×1190 | 1600×600×1250 | 2150×700×1250 | 2280×800×1250 | 2400×900×1250 |
| Machine net weight (kg) | 120 | 200 | 650 | 720 | 750 | 780 | 820 |
| Stirring motor kW | 1.1 | 1.5 | 3 | 4 | 5.5 | 5.5 | 7.5 |
| The material unloading motor is kw. | 0.55 | 0.75 | 1.1 | 1.1 | 1.1 | 1.5 | 1.5 |
