Stainless steel granular materialUPGM-316L

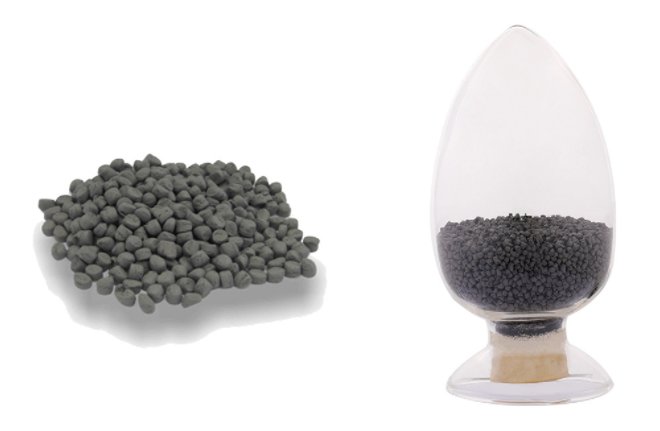

UPGM-316L is a metal-polymer composite material, appearing as gray, near-spherical particles with a particle size ranging from 8 to 14 mesh. It can be used to produce metal components made of 316L stainless steel. Using a UPG-3D printer, the pre-designed model green body is rapidly printed layer by layer, followed by debinding and sintering processes to obtain the final dense metal component.

Performance Applications

316L stainless steel features high strength and corrosion resistance, along with moderate electrical and thermal conductivity. It is widely used in daily production, industrial products, aerospace, petroleum, natural gas, metal ornaments, food processing, and medical devices.

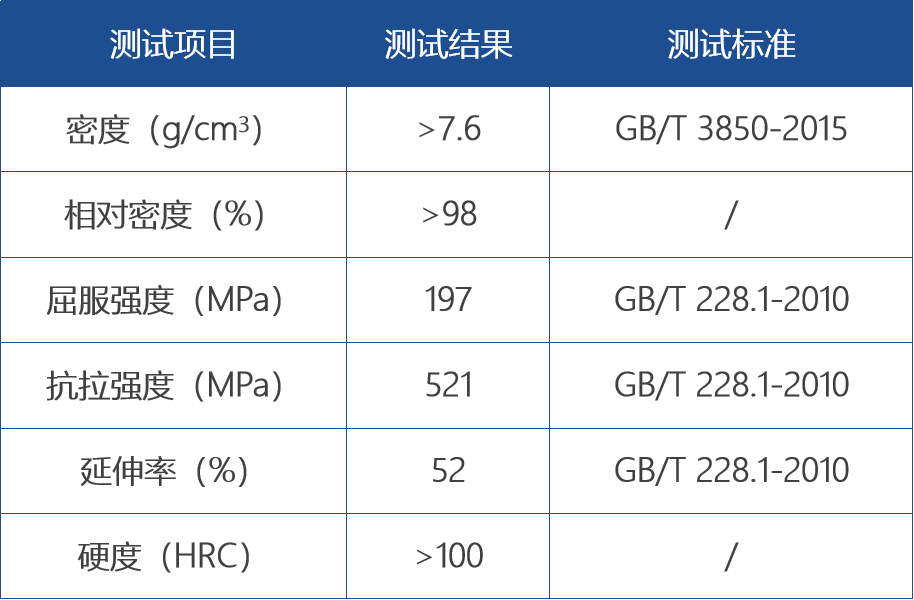

Performance of Sintered Parts

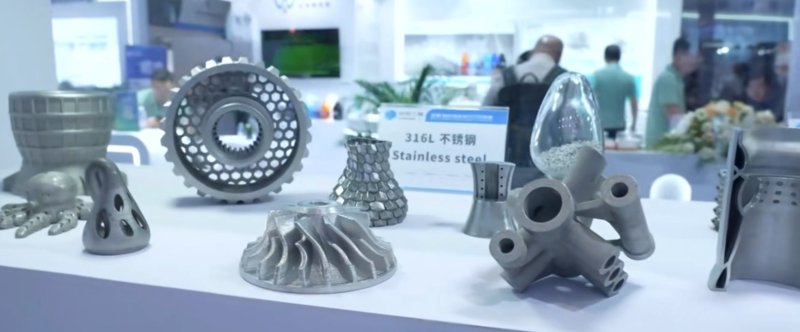

Print sample

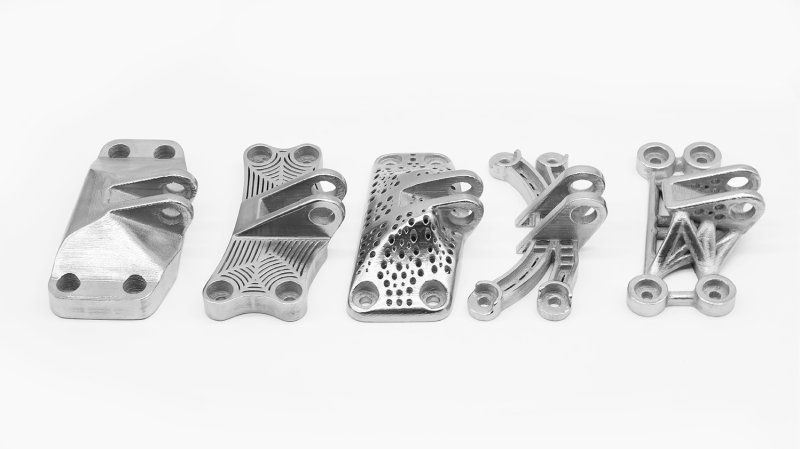

▲316L Structural Optimization Design Printed Sample (Source: Upward 3D)

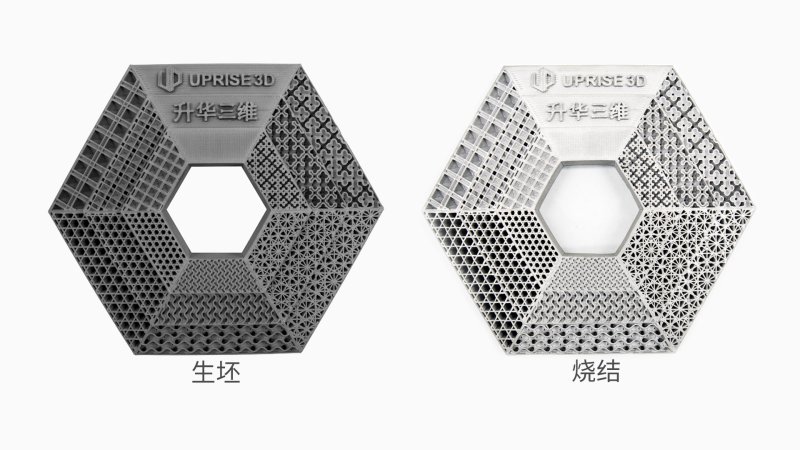

▲3D-printed sample of 316L lattice structure design (Source: Upward 3D)
