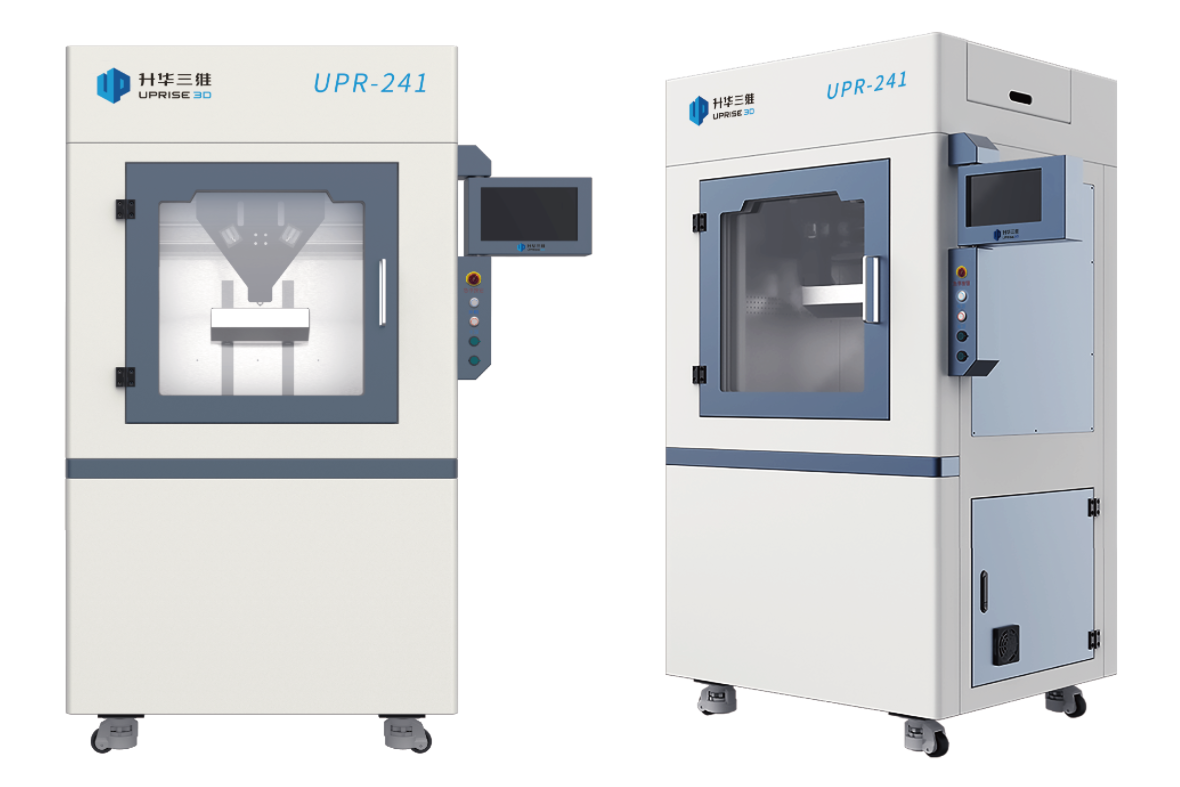

The UPR-241 is a functionally gradient material 3D printer launched by Upward 3D, featuring a three-screw, dual-component single-nozzle system. It utilizes granular materials to automatically regulate mixed printing and forming according to gradient design, offering simple processes and high design freedom, enabling continuous gradient changes in materials. Combined with post-processing techniques from traditional powder metallurgy, it can achieve the preparation of integral functionally gradient materials with continuous gradient layers.

It can provide **component control and gradient distribution for the design of metal/ceramic gradient materials, offering design simulation and experimental support for the development of new functionally gradient materials. Additionally, with its unique three-screw dual-component single-nozzle extrusion system, it achieves efficient material mixing and real-time precise regulation, significantly optimizing the preparation process and material costs of gradient materials. This brings a brand-new solution for the development of metal/ceramic gradient material preparation processes.

• Product Advantages

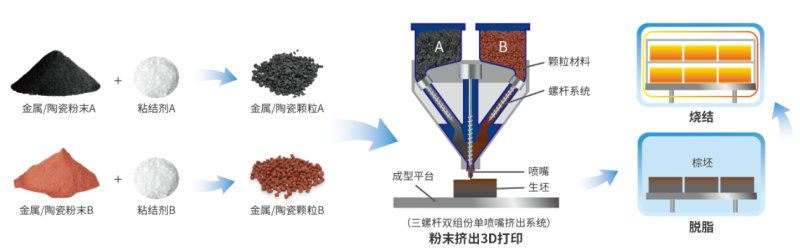

• A three-screw dual-component single-nozzle system has been configured, enabling the printing of various types of functionally graded materials.

• It adopts a particle melt extrusion forming method and can be adapted for secondary development based on PIM materials.

• Design and preparation of monolithic functionally graded materials capable of achieving continuous gradient layers.

• The extrusion system is miniaturized, with a compact equipment structure. It is equipped with a negative pressure adsorption forming platform, making installation and disassembly convenient, and part removal easy.

• It features an automatic feeding function, enabling unattended long-duration printing.

• The built-in hot air control system has been improved to ensure a constant temperature environment inside the chamber and prevent product cracking.

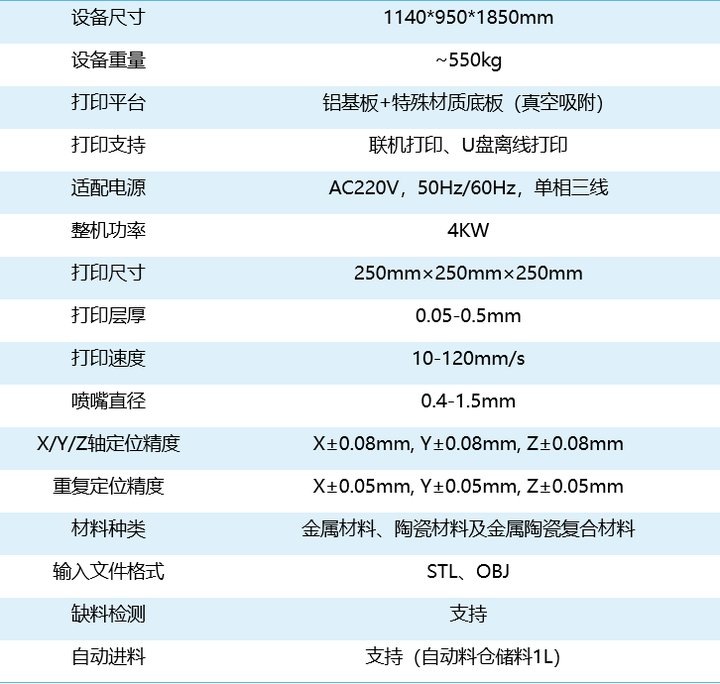

• Product Parameters




• Printing materials

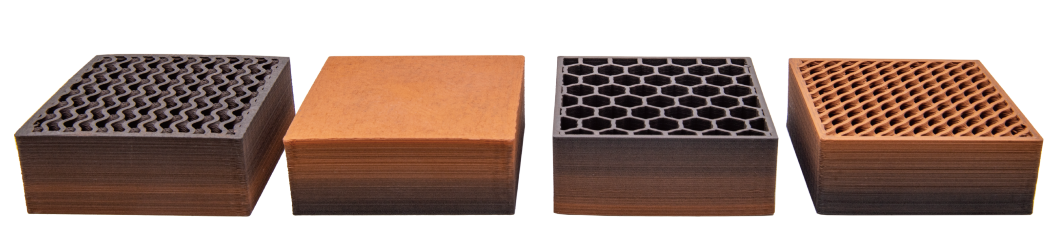

Supports various types of functionally graded materials, including metal/ceramic, ceramic/ceramic, and metal/metal. Suitable for the development, design, and preparation of functionally graded materials for complex structures.

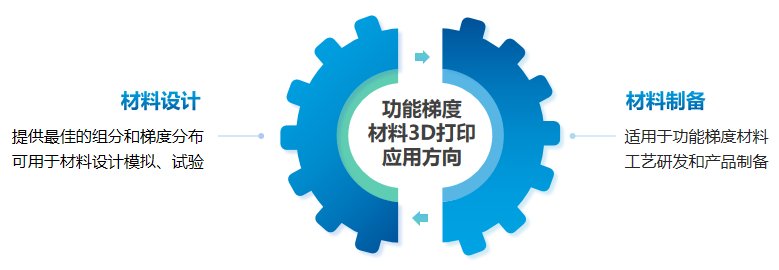

Application Direction

Gradient Functional Material 3D Printer UPR-241It can provide ** composition and gradient distribution, offering design simulation and experimental support for the development and product preparation of new metal/ceramic functionally gradient materials.
