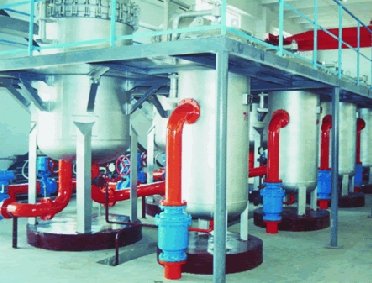

HLV Series Polymer Mother Liquor Coarse Filter and Fine Filter

1. Technical Features: Widely used in the coarse and fine filtration processes of polymer mother liquor and oil displacement additive solutions in tertiary oil recovery engineering; reasonable structure, advanced technology, effectively preventing mechanical and chemical degradation, ensuring the filtration process requirements of the solution.

2. Process Parameters:

Filtration accuracy: 16-85 μm

Design pressure: 1.0MPa

Filtration capacity: 20-140 m³/h

Equipment Material: 1Cr18Ni9Ti

Screw pump for transfer and export in tertiary oil recovery engineering

1. In the tertiary oil recovery process, to ensure the quality of polymer mother liquor transportation, **mechanical shearing**, the series of screw pumps provided by our company have been widely used in the Daqing Oilfield. They offer reliable performance, low maintenance costs, and effectively ensure the 24-hour continuous operation of the tertiary recovery process.

2. Process Parameters:

Rated displacement: 5-150m³/h

Rated pressure: 0.4-2.4MPa

Rated Power: 5-50KW

Equipment Material: 1Cr18Ni9Ti

Actuator equipment for the automatic control system

To ensure the continuous operation of the oilfield polymer injection project, the stability of the actuators in the automatic control system requires high process standards. The British ROTORK series actuators and DEZURK valve bodies, which our company supplies as a complete set, have been widely applied due to their excellent quality and stable performance.
