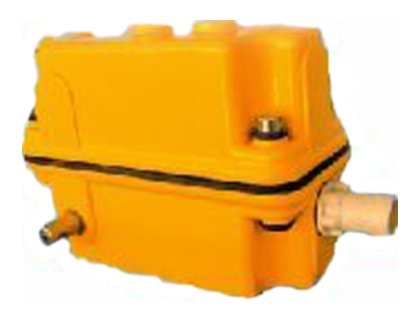

The performance indicators of the QCX travel limit switch meet the technical requirements of imported products. The travel limit switch can be widely used for three-dimensional coordinate control and limiting of lifting and conveying machinery in industries such as construction, ports, and mining. It features compact size, multiple functions, high precision, adjustable limits, strong versatility, and ease of maintenance, installation, and adjustment.

The travel limiter adopts an adjustable mechanical memory structure, featuring reliable performance and high sensitivity. The main technical parameters are as follows:

1. Working Environment

Ambient temperature: 233~328K (-40 ~+55°C)

Relative humidity: not greater than 90%

Altitude: Not exceeding 2500m

2. Transmission ratio: 1:13~960

3. Repeat positioning accuracy: The angular error of the memory cam shall not exceed 0.005 rad (0.3°).

4. Rated Voltage: AC: 125~250V DC: 30V

5. Rated current: 6A

6. Control Loops: The standard design includes 1 to 4 control loops, which can be expanded to 5 to 6 control loops based on user requirements.
