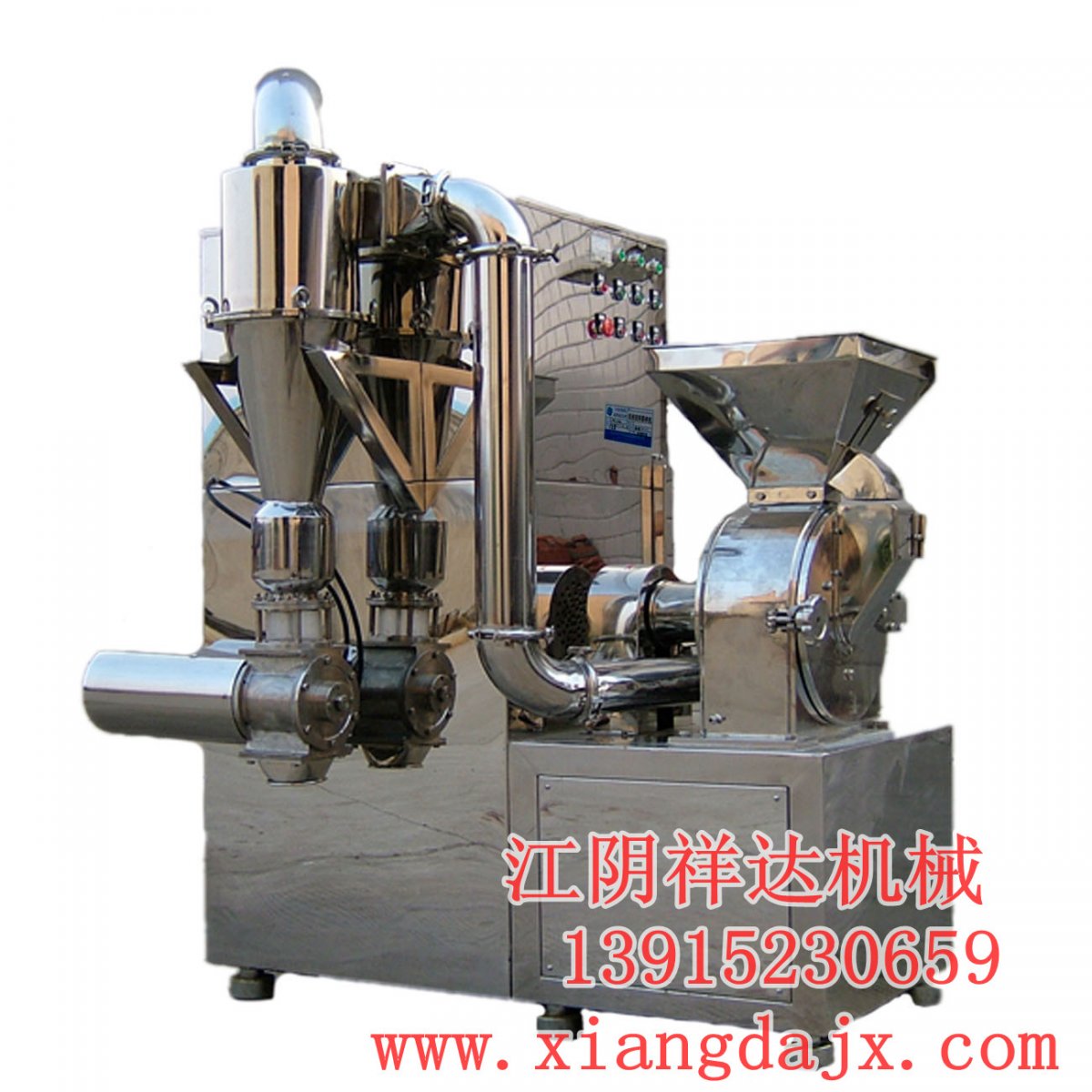

Chinese herbal medicine grinder for Astragalus membranaceusIt can be widely used for ultra-fine grinding of dry materials in various industries such as traditional Chinese medicine, Western medicine, pesticides, biology, cosmetics, food, feed, chemicals, and ceramics. It is particularly effective for grinding fibrous materials (such as herbal medicines) and brittle materials.
Chinese herbal medicine grinder for Astragalus membranaceusWorking Principle: The Chinese herbal medicine pulverizer consists of a feed hopper, a classifying wheel, crushing blades, a toothed ring, a crushing motor, a discharge port, a fan blade, a collection tank, and a dust collection box, among other components. Materials enter the crushing chamber through the feed hopper and are crushed by the high-speed rotating blades. The distance between the classifying wheel and the classifying disc is adjusted to achieve the required material fineness. The high-speed rotating fan blade directs the materials that meet the requirements from the crushing chamber into the collection tank's cloth bag, while materials that do not meet the requirements continue to be crushed in the crushing chamber. Dust generated from the collection tank's cloth bag is collected by the dust collection box. This unit is designed according to "GMP" standards, featuring a simple structure, easy operation and cleaning, low noise, high output, and is made entirely of high-quality stainless steel materials, ensuring no dust dispersion during the crushing process.

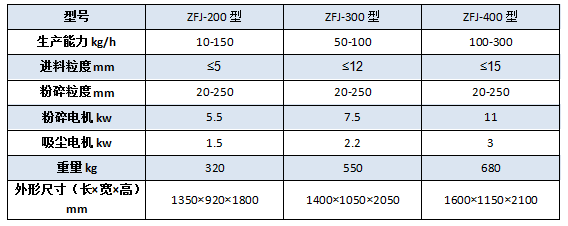

Chinese herbal medicine grinder for Astragalus membranaceusTechnical Parameters
