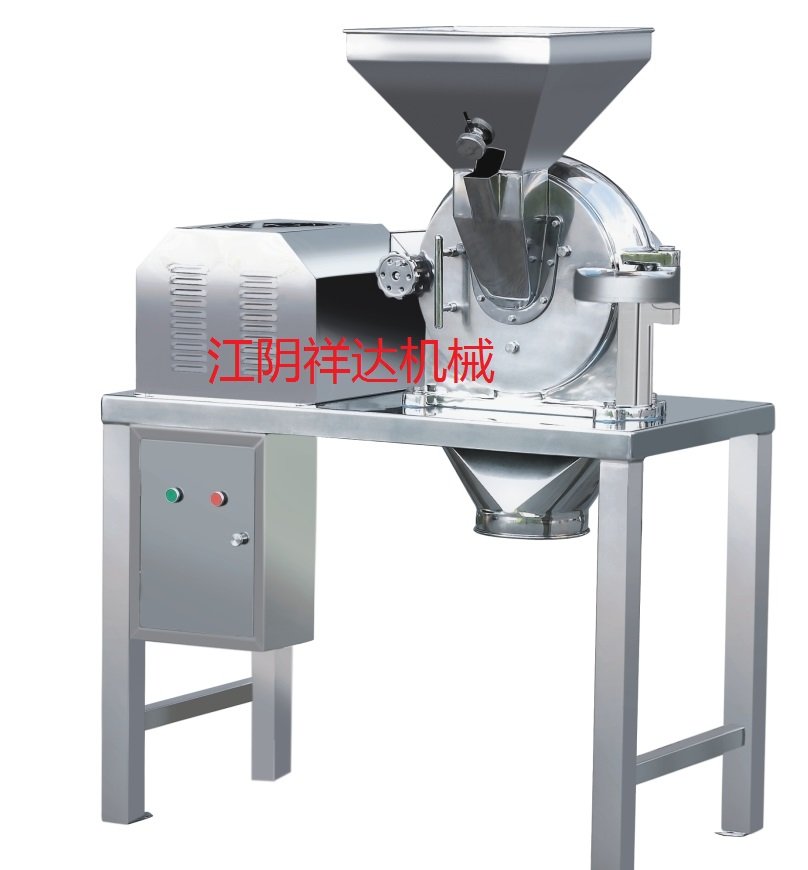

Efficient Dendrobium CrusherMain Uses:This machine is designed based on the principle of mixed spray pulverization and is widely applicable in industries such as pharmaceuticals, food, and chemicals, with an extensive range of uses. It features a simple structure, and the crushing chamber is easy to assemble, disassemble, and clean. All parts of the crushing chamber that come into contact with materials are made of stainless steel, which is resistant to acid and corrosion, ensuring that the crushed materials meet higher hygiene standards. The machine offers advantages such as stable operation, easy mobility, low noise, excellent crushing performance, and low power consumption.
Efficient Dendrobium CrusherWorking Principle:This machine is a high-speed rotating mechanism, featuring a sharp-edged blade on one side and an impact-type blade on the other, allowing the material to be crushed through high-speed blade shearing. The machine can also be equipped with blades of various shapes and sizes depending on the material, with particle size controlled by changing the mesh screen or adjusting the speed.

Efficient Dendrobium CrusherOperating Instructions 1. Inspection: Before use, check whether all feet of the crusher are fully in contact with the ground and stable; whether the locking bolts are tightened; whether the crusher filter screen is intact; and whether all connecting parts are secure. Only after confirming that everything is normal can the equipment be used; otherwise, it should be repaired or reported. 2. Startup (1) Close the power distribution box, and the indicator light will illuminate. Press the button to start the crusher. (2) Monitor the crusher's current and operating sound. If any abnormality occurs, stop the machine immediately for inspection. 3. Feeding (1) Only feed material after confirming that the crusher is operating normally. When feeding, first pour the material into the hopper, then gently push it into the crusher with a shovel. The material should not be too large or coarse. (2) Place the crushed fine material into a transfer bucket. Once the bucket is full, immediately cover it with the inner and outer plastic lids to prevent the material from absorbing moisture. (3) If any abnormal sound is heard during the crushing process, stop the machine immediately for inspection and resolve the issue before restarting. 4. Cleaning: (1) Since the material is highly prone to moisture absorption, immediately after crushing, use a long brush to sweep the material from the crusher hopper and body into a bag. Open the feeding section of the crusher and clean the interior and exterior thoroughly with a damp linen cloth or water. (2) After each cleaning, reassemble the parts properly for future use. (3) Turn on the heating radiator to ensure the crusher is dry before the next use.

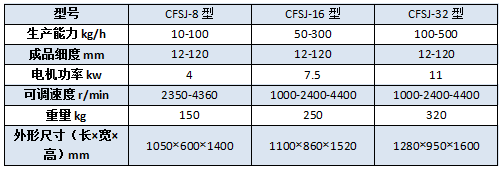

Efficient Dendrobium CrusherTechnical Parameters
