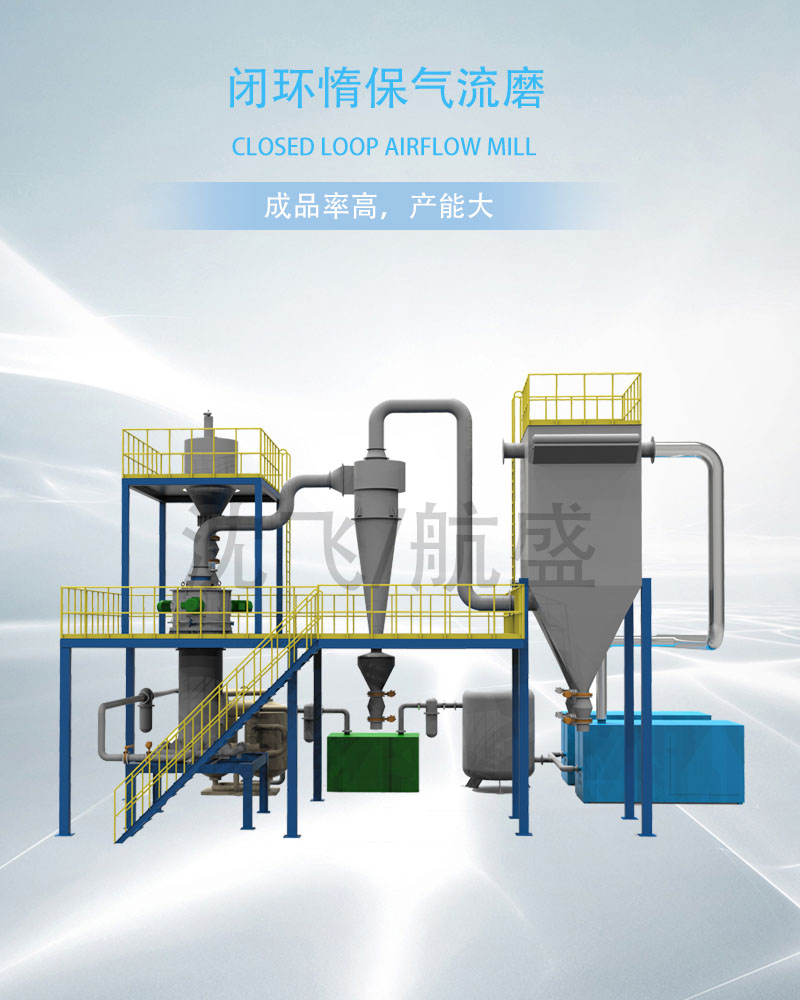

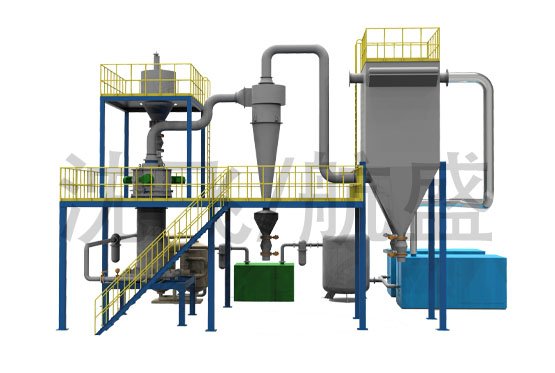

Closed-loop circulating jet mill

价  格
0.00
品牌:
沈飞粉体
型号:
闭路循环式气流磨

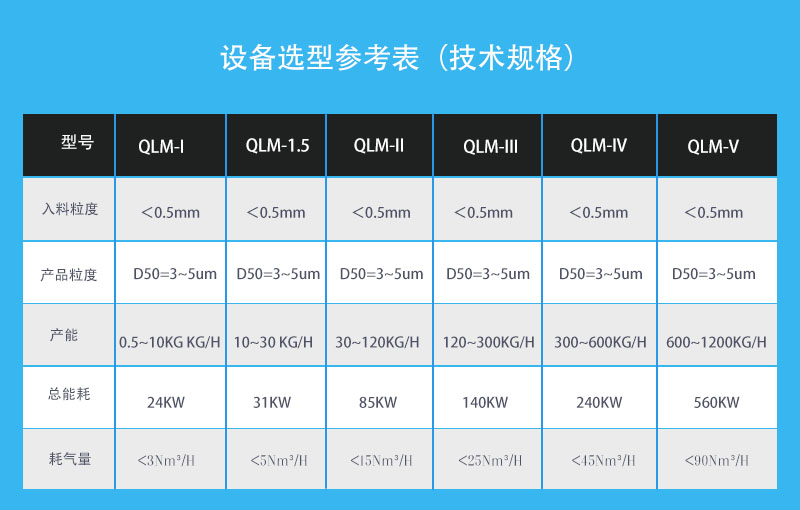

Air consumption (L/min):
Air Pressure (kPa):
Degree of crushing:
Ultra-fine grinding
Energy consumption per unit:
Low
Output:
0.5-1200KG/H
Installed Power (kW):
24-560
Product fineness:
2-45um
Feed particle size (mm):
Working principle:
Wind shear
营口航盛科技实业有限责任公司沈阳分公司
店主:邓经理
地址:辽宁省沈阳市塔湾街 40 号
  • 产品介绍

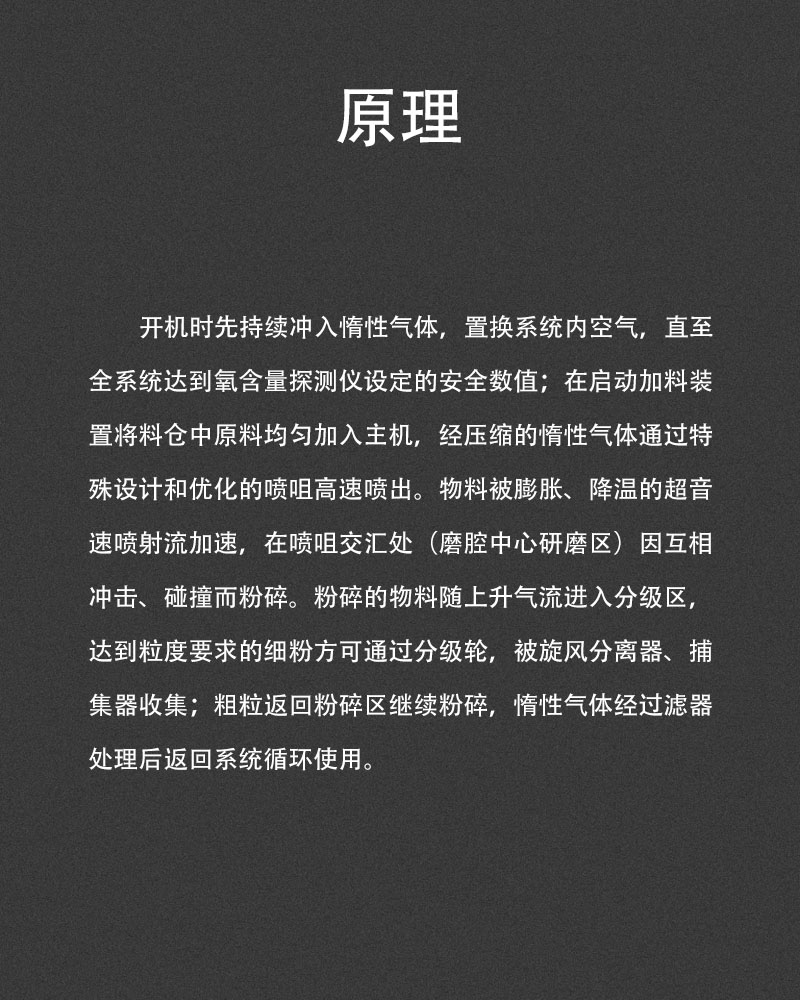

When starting up, first continuously introduce inert gas to displace the air within the system until the entire system reaches the safety value set by the oxygen content detector. Then, activate the feeding device to uniformly add raw materials from the hopper into the main machine. The compressed inert gas is ejected at high speed through specially designed and optimized nozzles. The materials are accelerated by the expanded and cooled supersonic jet stream, and at the intersection of the nozzles (the central grinding zone of the milling chamber), they are crushed through mutual impact and collision. The crushed materials rise with the upward airflow into the classification zone. Only fine particles that meet the required particle size can pass through the classification wheel and be collected by the cyclone separator and collector. Coarse particles return to the crushing zone for further grinding, while the inert gas is treated through a filter and then returned to the system for recycling.
